MR.Const_AABBTreePolyline2 Class Reference

bounding volume hierarchy for line segments Generated from class MR.AABBTreePolyline2. Base classes: Direct: (non-virtual) MR.AABBTreeBase<MR.AABBTreeTraits<MR.UndirectedEdgeTag, MR.Box2f>> This is the const half of the class. More...

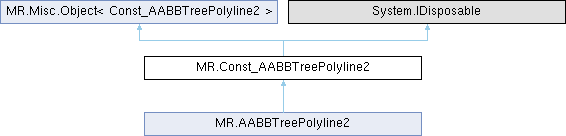

Inheritance diagram for MR.Const_AABBTreePolyline2:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	Const_AABBTreePolyline2 ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_AABBTreePolyline2 (MR._ByValue_AABBTreePolyline2 _other)
	Generated from constructor MR.AABBTreePolyline2.AABBTreePolyline2.
unsafe	Const_AABBTreePolyline2 (MR.Const_Polyline2 polyline)
	creates tree for given polyline Generated from constructor MR.AABBTreePolyline2.AABBTreePolyline2.
unsafe MR.Const_Vector_MRAABBTreeNodeMRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f_MRNodeId	nodes ()
	const-access to all nodes Generated from method MR.AABBTreePolyline2.nodes.
unsafe MR.Box2f	getBoundingBox ()
	returns the root node bounding box Generated from method MR.AABBTreePolyline2.getBoundingBox.
unsafe ulong	heapBytes ()
	returns the amount of memory this object occupies on heap Generated from method MR.AABBTreePolyline2.heapBytes.
unsafe ulong	numLeaves ()
	returns the number of leaves in whole tree Generated from method MR.AABBTreePolyline2.numLeaves.
unsafe MR.Std.Vector_MRNodeId	getSubtrees (int minNum)
	returns at least given number of top-level not-intersecting subtrees, union of which contain all tree leaves Generated from method MR.AABBTreePolyline2.getSubtrees.
unsafe MR.UndirectedEdgeBitSet	getSubtreeLeaves (MR.NodeId subtreeRoot)
	returns all leaves in the subtree with given root Generated from method MR.AABBTreePolyline2.getSubtreeLeaves.
unsafe MR.NodeBitSet	getNodesFromLeaves (MR.Const_UndirectedEdgeBitSet leaves)
	returns set of nodes containing among direct or indirect children given leaves Generated from method MR.AABBTreePolyline2.getNodesFromLeaves.
unsafe void	getLeafOrder (MR.UndirectedEdgeBMap leafMap)
	fills map: LeafId -> leaf#; buffer in leafMap must be resized before the call, and caller is responsible for filling missing leaf elements Generated from method MR.AABBTreePolyline2.getLeafOrder.

Static Public Member Functions
static unsafe implicit	operator MR.Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f (Const_AABBTreePolyline2 self)
static MR.NodeId	rootNodeId ()
	returns root node id Generated from method MR.AABBTreePolyline2.rootNodeId.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Properties
unsafe MR.Const_AABBTreeNode_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f	this[MR.NodeId nid] [get]
	const-access to any node Generated from method MR.AABBTreePolyline2.operator[].
Properties inherited from MR.Misc.Object< Const_AABBTreePolyline2 >
virtual bool	_IsOwning [get]
	Returns true if this is an owning instance, and when disposed, will destroy the underlying C++ instance. If false, we assume that the underlying C++ instance will live long enough.

Additional Inherited Members
Protected Attributes inherited from MR.Misc.Object< Const_AABBTreePolyline2 >
bool	_IsOwningVal

Detailed Description

bounding volume hierarchy for line segments Generated from class MR.AABBTreePolyline2. Base classes: Direct: (non-virtual) MR.AABBTreeBase<MR.AABBTreeTraits<MR.UndirectedEdgeTag, MR.Box2f>> This is the const half of the class.

---

The documentation for this class was generated from the following file:

• MRAABBTreePolyline.cs
