MR.Const_MeshOrPoints.Const_ProjectionResult Class Reference

Generated from class MR.MeshOrPoints.ProjectionResult. This is the const half of the class. More...

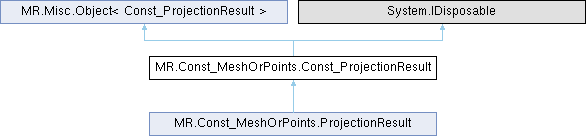

Inheritance diagram for MR.Const_MeshOrPoints.Const_ProjectionResult:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	Const_ProjectionResult ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_ProjectionResult (MR.Vector3f point, MR._InOpt_Vector3f normal, bool isBd, float distSq, MR.VertId closestVert)
	Constructs MR.MeshOrPoints.ProjectionResult elementwise.
unsafe	Const_ProjectionResult (MR.MeshOrPoints.Const_ProjectionResult _other)
	Generated from constructor MR::MeshOrPoints::ProjectionResult::ProjectionResult.
	Const_ProjectionResult (ProjectionResult _other)
	Generated from constructor MR::MeshOrPoints::ProjectionResult::ProjectionResult.
unsafe bool	valid ()
	Generated from method MR::MeshOrPoints::ProjectionResult::valid.

Static Public Member Functions
static unsafe	operator bool (MR.MeshOrPoints.Const_ProjectionResult _this)
	Generated from conversion operator MR::MeshOrPoints::ProjectionResult::operator bool.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Protected Attributes
unsafe MR.Vector3f *	__ref_storage_point
unsafe bool *	__ref_storage_isBd
unsafe float *	__ref_storage_distSq
unsafe MR.VertId *	__ref_storage_closestVert

Properties
unsafe ref readonly MR.Vector3f	point [get]
	found closest point
unsafe MR.Std.Const_Optional_MRVector3f	normal [get, protected set]
	normal at the closest point; for meshes it will be pseudonormal with the differentiation depending on closest point location (face/edge/vertex)
unsafe bool	isBd [get]
	can be true only for meshes, if the closest point is located on the boundary of the mesh (or the current region)
unsafe float	distSq [get]
	squared distance from query point to the closest point
unsafe ref readonly MR.VertId	closestVert [get]
	for point clouds it is the closest vertex, for meshes it is the closest vertex of the triangle with the closest point

Detailed Description

Generated from class MR.MeshOrPoints.ProjectionResult. This is the const half of the class.

Constructor & Destructor Documentation

Const_ProjectionResult() [1/4]

unsafe MR.Const_MeshOrPoints.Const_ProjectionResult.Const_ProjectionResult ( )

inline

Constructs an empty (default-constructed) instance.

Const_ProjectionResult() [2/4]

unsafe MR.Const_MeshOrPoints.Const_ProjectionResult.Const_ProjectionResult ( MR.Vector3f point, MR._InOpt_Vector3f normal, bool isBd, float distSq, MR.VertId closestVert )

inline

Constructs MR.MeshOrPoints.ProjectionResult elementwise.

Const_ProjectionResult() [3/4]

unsafe MR.Const_MeshOrPoints.Const_ProjectionResult.Const_ProjectionResult ( MR.MeshOrPoints.Const_ProjectionResult _other )

inline

Generated from constructor MR::MeshOrPoints::ProjectionResult::ProjectionResult.

Const_ProjectionResult() [4/4]

MR.Const_MeshOrPoints.Const_ProjectionResult.Const_ProjectionResult ( ProjectionResult _other )

inline

Generated from constructor MR::MeshOrPoints::ProjectionResult::ProjectionResult.

Member Function Documentation

Dispose() [1/2]

virtual void MR.Const_MeshOrPoints.Const_ProjectionResult.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.Const_MeshOrPoints.Const_ProjectionResult.Dispose ( bool disposing )

inlineprotectedvirtual

operator bool()

unsafe MR.Const_MeshOrPoints.Const_ProjectionResult.operator bool ( MR.MeshOrPoints.Const_ProjectionResult _this )

inlineexplicitstatic

Generated from conversion operator MR::MeshOrPoints::ProjectionResult::operator bool.

valid()

unsafe bool MR.Const_MeshOrPoints.Const_ProjectionResult.valid ( )

inline

Generated from method MR::MeshOrPoints::ProjectionResult::valid.

Member Data Documentation

__ref_storage_closestVert

unsafe MR.VertId* MR.Const_MeshOrPoints.Const_ProjectionResult.__ref_storage_closestVert

protected

__ref_storage_distSq

unsafe float* MR.Const_MeshOrPoints.Const_ProjectionResult.__ref_storage_distSq

protected

__ref_storage_isBd

unsafe bool* MR.Const_MeshOrPoints.Const_ProjectionResult.__ref_storage_isBd

protected

__ref_storage_point

unsafe MR.Vector3f* MR.Const_MeshOrPoints.Const_ProjectionResult.__ref_storage_point

protected

Property Documentation

closestVert

unsafe ref readonly MR.VertId MR.Const_MeshOrPoints.Const_ProjectionResult.closestVert

get

for point clouds it is the closest vertex, for meshes it is the closest vertex of the triangle with the closest point

distSq

unsafe float MR.Const_MeshOrPoints.Const_ProjectionResult.distSq

get

squared distance from query point to the closest point

isBd

unsafe bool MR.Const_MeshOrPoints.Const_ProjectionResult.isBd

get

can be true only for meshes, if the closest point is located on the boundary of the mesh (or the current region)

normal

unsafe MR.Std.Const_Optional_MRVector3f MR.Const_MeshOrPoints.Const_ProjectionResult.normal

getprotected set

normal at the closest point; for meshes it will be pseudonormal with the differentiation depending on closest point location (face/edge/vertex)

point

unsafe ref readonly MR.Vector3f MR.Const_MeshOrPoints.Const_ProjectionResult.point

get

found closest point

---

The documentation for this class was generated from the following file:

• MRMeshOrPoints.cs
