MR.Const_SegmPointf Class Reference

encodes a point inside a line segment using relative distance in [0,1] Generated from class MR.SegmPointf. This is the const half of the class. More...

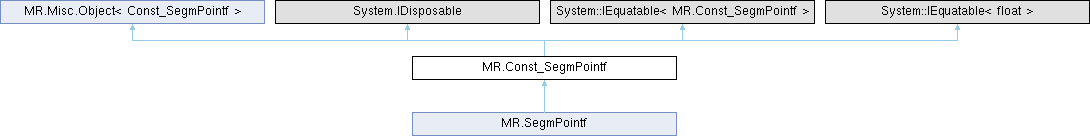

Inheritance diagram for MR.Const_SegmPointf:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	Const_SegmPointf ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_SegmPointf (MR.Const_SegmPointf _other)
	Generated from constructor MR.SegmPointf.SegmPointf.
	Const_SegmPointf (SegmPointf _other)
	Generated from constructor MR.SegmPointf.SegmPointf.
unsafe	Const_SegmPointf (float a)
	Generated from constructor MR.SegmPointf.SegmPointf.
unsafe int	inVertex ()
	returns [0,1] if the point is in a vertex or -1 otherwise Generated from method MR.SegmPointf.inVertex.
unsafe MR.SegmPointf	sym ()
	represents the same point relative to oppositely directed segment Generated from method MR.SegmPointf.sym.
bool	Equals (MR.Const_SegmPointf? rhs)
bool	Equals (float rhs)
override bool	Equals (object? other)

Static Public Member Functions
static unsafe implicit	operator Const_SegmPointf (float a)
	Generated from constructor MR.SegmPointf.SegmPointf.
static unsafe implicit	operator float (MR.Const_SegmPointf _this)
	Generated from conversion operator MR::SegmPointf::operator float.
static unsafe bool	operator== (MR.Const_SegmPointf _this, MR.Const_SegmPointf rhs)
	returns true if two points have equal (a) representation Generated from method MR::SegmPointf::operator==.
static unsafe bool	operator!= (MR.Const_SegmPointf _this, MR.Const_SegmPointf rhs)
static unsafe bool	operator== (MR.Const_SegmPointf _this, float rhs)
	Generated from method MR::SegmPointf::operator==.
static unsafe bool	operator!= (MR.Const_SegmPointf _this, float rhs)

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Protected Attributes
unsafe float *	__ref_storage_a

Static Protected Attributes
static unsafe float *	__ref_storage_Eps

Properties
static unsafe float	Eps [get]
unsafe float	a [get]
	a in [0,1], a=0 => point is in v0, a=1 => point is in v1

Detailed Description

encodes a point inside a line segment using relative distance in [0,1] Generated from class MR.SegmPointf. This is the const half of the class.

Constructor & Destructor Documentation

Const_SegmPointf() [1/4]

unsafe MR.Const_SegmPointf.Const_SegmPointf ( )

inline

Constructs an empty (default-constructed) instance.

Const_SegmPointf() [2/4]

unsafe MR.Const_SegmPointf.Const_SegmPointf ( MR.Const_SegmPointf _other )

inline

Generated from constructor MR.SegmPointf.SegmPointf.

Const_SegmPointf() [3/4]

MR.Const_SegmPointf.Const_SegmPointf ( SegmPointf _other )

inline

Generated from constructor MR.SegmPointf.SegmPointf.

Const_SegmPointf() [4/4]

unsafe MR.Const_SegmPointf.Const_SegmPointf ( float a )

inline

Generated from constructor MR.SegmPointf.SegmPointf.

Member Function Documentation

Dispose() [1/2]

virtual void MR.Const_SegmPointf.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.Const_SegmPointf.Dispose ( bool disposing )

inlineprotectedvirtual

Equals() [1/3]

bool MR.Const_SegmPointf.Equals ( float rhs )

inline

Equals() [2/3]

bool MR.Const_SegmPointf.Equals ( MR.Const_SegmPointf? rhs )

inline

Equals() [3/3]

override bool MR.Const_SegmPointf.Equals ( object? other )

inline

inVertex()

unsafe int MR.Const_SegmPointf.inVertex ( )

inline

returns [0,1] if the point is in a vertex or -1 otherwise Generated from method MR.SegmPointf.inVertex.

operator Const_SegmPointf()

unsafe implicit MR.Const_SegmPointf.operator Const_SegmPointf ( float a )

inlinestatic

Generated from constructor MR.SegmPointf.SegmPointf.

operator float()

unsafe implicit MR.Const_SegmPointf.operator float ( MR.Const_SegmPointf _this )

inlinestatic

Generated from conversion operator MR::SegmPointf::operator float.

operator!=() [1/2]

unsafe bool MR.Const_SegmPointf.operator!= ( MR.Const_SegmPointf _this, float rhs )

inlinestatic

operator!=() [2/2]

unsafe bool MR.Const_SegmPointf.operator!= ( MR.Const_SegmPointf _this, MR.Const_SegmPointf rhs )

inlinestatic

operator==() [1/2]

unsafe bool MR.Const_SegmPointf.operator== ( MR.Const_SegmPointf _this, float rhs )

inlinestatic

Generated from method MR::SegmPointf::operator==.

operator==() [2/2]

unsafe bool MR.Const_SegmPointf.operator== ( MR.Const_SegmPointf _this, MR.Const_SegmPointf rhs )

inlinestatic

returns true if two points have equal (a) representation Generated from method MR::SegmPointf::operator==.

sym()

unsafe MR.SegmPointf MR.Const_SegmPointf.sym ( )

inline

represents the same point relative to oppositely directed segment Generated from method MR.SegmPointf.sym.

Member Data Documentation

__ref_storage_a

unsafe float* MR.Const_SegmPointf.__ref_storage_a

protected

__ref_storage_Eps

unsafe float* MR.Const_SegmPointf.__ref_storage_Eps

staticprotected

Property Documentation

a

unsafe float MR.Const_SegmPointf.a

get

a in [0,1], a=0 => point is in v0, a=1 => point is in v1

Eps

unsafe float MR.Const_SegmPointf.Eps

staticget

---

The documentation for this class was generated from the following file:

• MRSegmPoint.cs
