encodes a point inside a triangle using barycentric coordinates More...

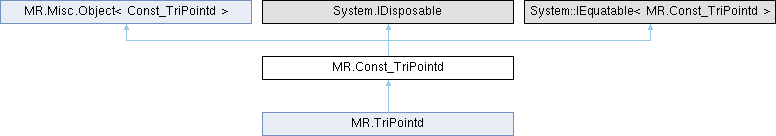

Inheritance diagram for MR.Const_TriPointd:

Classes

struct  _Underlying

Public Member Functions

virtual void Dispose ()
unsafe Const_TriPointd ()
 Constructs an empty (default-constructed) instance.
unsafe Const_TriPointd (MR.Const_TriPointd _other)
 Generated from constructor MR.TriPointd.TriPointd.
 Const_TriPointd (TriPointd _other)
 Generated from constructor MR.TriPointd.TriPointd.
unsafe Const_TriPointd (MR.Const_NoInit _1)
 Generated from constructor MR.TriPointd.TriPointd.
unsafe Const_TriPointd (double a, double b)
 Generated from constructor MR.TriPointd.TriPointd.
unsafe Const_TriPointd (in MR.Vector3d p, in MR.Vector3d v0, in MR.Vector3d v1, in MR.Vector3d v2, int? edge=null)
 given a point coordinates and triangle (v0,v1,v2) computes barycentric coordinates of the point; if the point is known to be on an edge, numbered as in onEdge(), then pass it to place the point exactly there Generated from constructor MR.TriPointd.TriPointd. Parameter edge defaults to -1.
unsafe Const_TriPointd (in MR.Vector3d p, in MR.Vector3d v1, in MR.Vector3d v2, int? edge=null)
 given a point coordinates and triangle (0,v1,v2) computes barycentric coordinates of the point; if the point is known to be on an edge, numbered as in onEdge(), then pass it to place the point exactly there Generated from constructor MR.TriPointd.TriPointd. Parameter edge defaults to -1.
unsafe MR.TriPointd lnext ()
 represents the same point relative to next edge in the same triangle Generated from method MR.TriPointd.lnext.
unsafe int inVertex ()
 returns [0,2] if the point is in a vertex or -1 otherwise Generated from method MR.TriPointd.inVertex.
unsafe int onEdge ()
 returns [0,2] if the point is on edge or -1 otherwise: 0 means edge [v1,v2]; 1 means edge [v2,v0]; 2 means edge [v0,v1] Generated from method MR.TriPointd.onEdge.
bool Equals (MR.Const_TriPointd? rhs)
override bool Equals (object? other)

Static Public Member Functions

static unsafe bool operator== (MR.Const_TriPointd _this, MR.Const_TriPointd rhs)
 returns true if two points have equal (a,b) representation Generated from method MR::TriPointd::operator==.
static unsafe bool operator!= (MR.Const_TriPointd _this, MR.Const_TriPointd rhs)

Protected Member Functions

virtual unsafe void Dispose (bool disposing)

Protected Attributes

unsafe double * __ref_storage_a
unsafe double * __ref_storage_b

Static Protected Attributes

static unsafe double * __ref_storage_Eps

Properties

static unsafe double Eps [get]
unsafe double a [get]
 a in [0,1], a=0 => point is on [v2,v0] edge, a=1 => point is in v1
unsafe double b [get]
 b in [0,1], b=0 => point is on [v0,v1] edge, b=1 => point is in v2

Detailed Description

encodes a point inside a triangle using barycentric coordinates

Notations used below: v0, v1, v2 - points of the triangle Generated from class MR.TriPointd. This is the const half of the class.

Constructor & Destructor Documentation

◆ Const_TriPointd() [1/7]

unsafe MR.Const_TriPointd.Const_TriPointd ( )
inline

Constructs an empty (default-constructed) instance.

◆ Const_TriPointd() [2/7]

unsafe MR.Const_TriPointd.Const_TriPointd ( MR.Const_TriPointd _other)
inline

Generated from constructor MR.TriPointd.TriPointd.

◆ Const_TriPointd() [3/7]

MR.Const_TriPointd.Const_TriPointd ( TriPointd _other)
inline

Generated from constructor MR.TriPointd.TriPointd.

◆ Const_TriPointd() [4/7]

unsafe MR.Const_TriPointd.Const_TriPointd ( MR.Const_NoInit _1)
inline

Generated from constructor MR.TriPointd.TriPointd.

◆ Const_TriPointd() [5/7]

unsafe MR.Const_TriPointd.Const_TriPointd ( double a,
double b )
inline

Generated from constructor MR.TriPointd.TriPointd.

◆ Const_TriPointd() [6/7]

unsafe MR.Const_TriPointd.Const_TriPointd ( in MR.Vector3d p,
in MR.Vector3d v0,
in MR.Vector3d v1,
in MR.Vector3d v2,
int? edge = null )
inline

given a point coordinates and triangle (v0,v1,v2) computes barycentric coordinates of the point; if the point is known to be on an edge, numbered as in onEdge(), then pass it to place the point exactly there Generated from constructor MR.TriPointd.TriPointd. Parameter edge defaults to -1.

◆ Const_TriPointd() [7/7]

unsafe MR.Const_TriPointd.Const_TriPointd ( in MR.Vector3d p,
in MR.Vector3d v1,
in MR.Vector3d v2,
int? edge = null )
inline

given a point coordinates and triangle (0,v1,v2) computes barycentric coordinates of the point; if the point is known to be on an edge, numbered as in onEdge(), then pass it to place the point exactly there Generated from constructor MR.TriPointd.TriPointd. Parameter edge defaults to -1.

Member Function Documentation

◆ Dispose() [1/2]

virtual void MR.Const_TriPointd.Dispose ( )
inlinevirtual

◆ Dispose() [2/2]

virtual unsafe void MR.Const_TriPointd.Dispose ( bool disposing)
inlineprotectedvirtual

◆ Equals() [1/2]

bool MR.Const_TriPointd.Equals ( MR.Const_TriPointd? rhs)
inline

◆ Equals() [2/2]

override bool MR.Const_TriPointd.Equals ( object? other)
inline

◆ inVertex()

unsafe int MR.Const_TriPointd.inVertex ( )
inline

returns [0,2] if the point is in a vertex or -1 otherwise Generated from method MR.TriPointd.inVertex.

◆ lnext()

unsafe MR.TriPointd MR.Const_TriPointd.lnext ( )
inline

represents the same point relative to next edge in the same triangle Generated from method MR.TriPointd.lnext.

◆ onEdge()

unsafe int MR.Const_TriPointd.onEdge ( )
inline

returns [0,2] if the point is on edge or -1 otherwise: 0 means edge [v1,v2]; 1 means edge [v2,v0]; 2 means edge [v0,v1] Generated from method MR.TriPointd.onEdge.

◆ operator!=()

unsafe bool MR.Const_TriPointd.operator!= ( MR.Const_TriPointd _this,
MR.Const_TriPointd rhs )
inlinestatic

◆ operator==()

unsafe bool MR.Const_TriPointd.operator== ( MR.Const_TriPointd _this,
MR.Const_TriPointd rhs )
inlinestatic

returns true if two points have equal (a,b) representation Generated from method MR::TriPointd::operator==.

Member Data Documentation

◆ __ref_storage_a

unsafe double* MR.Const_TriPointd.__ref_storage_a
protected

◆ __ref_storage_b

unsafe double* MR.Const_TriPointd.__ref_storage_b
protected

◆ __ref_storage_Eps

unsafe double* MR.Const_TriPointd.__ref_storage_Eps
staticprotected

Property Documentation

◆ a

unsafe double MR.Const_TriPointd.a
get

a in [0,1], a=0 => point is on [v2,v0] edge, a=1 => point is in v1

◆ b

unsafe double MR.Const_TriPointd.b
get

b in [0,1], b=0 => point is on [v0,v1] edge, b=1 => point is in v2

◆ Eps

unsafe double MR.Const_TriPointd.Eps
staticget
