associated with each vertex in graph Generated from class MR.WatershedGraph.BasinInfo. This is the non-const half of the class. More...

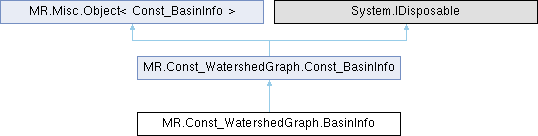

Inheritance diagram for MR.Const_WatershedGraph.BasinInfo:

Public Member Functions
unsafe	BasinInfo ()
	Constructs an empty (default-constructed) instance.
unsafe	BasinInfo (MR.WatershedGraph.Const_BasinInfo _other)
	Generated from constructor MR::WatershedGraph::BasinInfo::BasinInfo.
	BasinInfo (BasinInfo _other)
	Generated from constructor MR::WatershedGraph::BasinInfo::BasinInfo.
unsafe MR.WatershedGraph.BasinInfo	assign (MR.WatershedGraph.Const_BasinInfo _other)
	Generated from method MR::WatershedGraph::BasinInfo::operator=.
unsafe void	updateAccVolume (float amount)
	updates accumulated volume in the basin to the moment of given precipitation amount Generated from method MR::WatershedGraph::BasinInfo::updateAccVolume.
Public Member Functions inherited from MR.Const_WatershedGraph.Const_BasinInfo
virtual void	Dispose ()
unsafe	Const_BasinInfo ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_BasinInfo (MR.WatershedGraph.Const_BasinInfo _other)
	Generated from constructor MR::WatershedGraph::BasinInfo::BasinInfo.
	Const_BasinInfo (BasinInfo _other)
	Generated from constructor MR::WatershedGraph::BasinInfo::BasinInfo.
unsafe float	amountTillOverflow ()
	amount of precipitation (in same units as mesh coordinates and water level), which can be added before overflowing the basin Generated from method MR::WatershedGraph::BasinInfo::amountTillOverflow.
unsafe float	approxLevel ()
	approximate current level of water (z-coordinate) in the basin Generated from method MR::WatershedGraph::BasinInfo::approxLevel.

Properties
new unsafe ref MR.VertId	lowestVert `[get]`
	in the whole basin
new unsafe ref float	lowestLevel `[get]`
	lowest level (z-coordinate of lowestVert) in the basin
new unsafe ref float	area `[get]`
	precipitation area that flows in this basin (and if it is full, continue flowing next)
new unsafe ref float	lowestBdLevel `[get]`
	lowest position on the boundary of the basin
new unsafe ref float	maxVolume `[get]`
	full water volume to be accumulated in the basin till water reaches the lowest height on the boundary
new unsafe ref float	accVolume `[get]`
	accumulated water volume in the basin so far
new unsafe ref float	lastUpdateAmount `[get]`
	the amount when accVolume was last updated
new unsafe ref float	lastMergeLevel `[get]`
	water level in the basin when it was formed (by merge or creation)
new unsafe ref float	lastMergeVolume `[get]`
	water volume in the basin when it was formed (by merge or creation)
new unsafe ref MR.GraphEdgeId	overflowVia `[get]`
	when level=lowestBdLevel, volume=0, all water from this basin overflows via this boundary
Properties inherited from MR.Const_WatershedGraph.Const_BasinInfo
unsafe ref readonly MR.VertId	lowestVert `[get]`
	in the whole basin
unsafe float	lowestLevel `[get]`
	lowest level (z-coordinate of lowestVert) in the basin
unsafe float	area `[get]`
	precipitation area that flows in this basin (and if it is full, continue flowing next)
unsafe float	lowestBdLevel `[get]`
	lowest position on the boundary of the basin
unsafe float	maxVolume `[get]`
	full water volume to be accumulated in the basin till water reaches the lowest height on the boundary
unsafe float	accVolume `[get]`
	accumulated water volume in the basin so far
unsafe float	lastUpdateAmount `[get]`
	the amount when accVolume was last updated
unsafe float	lastMergeLevel `[get]`
	water level in the basin when it was formed (by merge or creation)
unsafe float	lastMergeVolume `[get]`
	water volume in the basin when it was formed (by merge or creation)
unsafe ref readonly MR.GraphEdgeId	overflowVia `[get]`
	when level=lowestBdLevel, volume=0, all water from this basin overflows via this boundary

Additional Inherited Members
Protected Member Functions inherited from MR.Const_WatershedGraph.Const_BasinInfo
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_WatershedGraph.Const_BasinInfo
unsafe MR.VertId *	__ref_storage_lowestVert
unsafe float *	__ref_storage_lowestLevel
unsafe float *	__ref_storage_area
unsafe float *	__ref_storage_lowestBdLevel
unsafe float *	__ref_storage_maxVolume
unsafe float *	__ref_storage_accVolume
unsafe float *	__ref_storage_lastUpdateAmount
unsafe float *	__ref_storage_lastMergeLevel
unsafe float *	__ref_storage_lastMergeVolume
unsafe MR.GraphEdgeId *	__ref_storage_overflowVia

Detailed Description

associated with each vertex in graph Generated from class MR.WatershedGraph.BasinInfo. This is the non-const half of the class.

Constructor & Destructor Documentation

◆ BasinInfo() [1/3]

unsafe MR.Const_WatershedGraph.BasinInfo.BasinInfo ( )

inline

Constructs an empty (default-constructed) instance.

◆ BasinInfo() [2/3]

unsafe MR.Const_WatershedGraph.BasinInfo.BasinInfo ( MR.WatershedGraph.Const_BasinInfo _other )

inline

Generated from constructor MR::WatershedGraph::BasinInfo::BasinInfo.

◆ BasinInfo() [3/3]

MR.Const_WatershedGraph.BasinInfo.BasinInfo ( BasinInfo _other )

inline

Generated from constructor MR::WatershedGraph::BasinInfo::BasinInfo.

Member Function Documentation

◆ assign()

unsafe MR.WatershedGraph.BasinInfo MR.Const_WatershedGraph.BasinInfo.assign ( MR.WatershedGraph.Const_BasinInfo _other )

inline

Generated from method MR::WatershedGraph::BasinInfo::operator=.

◆ updateAccVolume()

unsafe void MR.Const_WatershedGraph.BasinInfo.updateAccVolume ( float amount )

inline

updates accumulated volume in the basin to the moment of given precipitation amount Generated from method MR::WatershedGraph::BasinInfo::updateAccVolume.

Property Documentation

◆ accVolume

new unsafe ref float MR.Const_WatershedGraph.BasinInfo.accVolume

get

accumulated water volume in the basin so far

◆ area

new unsafe ref float MR.Const_WatershedGraph.BasinInfo.area

get

precipitation area that flows in this basin (and if it is full, continue flowing next)

◆ lastMergeLevel

new unsafe ref float MR.Const_WatershedGraph.BasinInfo.lastMergeLevel

get

water level in the basin when it was formed (by merge or creation)

◆ lastMergeVolume

new unsafe ref float MR.Const_WatershedGraph.BasinInfo.lastMergeVolume

get

water volume in the basin when it was formed (by merge or creation)

◆ lastUpdateAmount

new unsafe ref float MR.Const_WatershedGraph.BasinInfo.lastUpdateAmount

get

the amount when accVolume was last updated

◆ lowestBdLevel

new unsafe ref float MR.Const_WatershedGraph.BasinInfo.lowestBdLevel

get

lowest position on the boundary of the basin

◆ lowestLevel

new unsafe ref float MR.Const_WatershedGraph.BasinInfo.lowestLevel

get

lowest level (z-coordinate of lowestVert) in the basin

◆ lowestVert

new unsafe ref MR.VertId MR.Const_WatershedGraph.BasinInfo.lowestVert

get

in the whole basin

◆ maxVolume

new unsafe ref float MR.Const_WatershedGraph.BasinInfo.maxVolume

get

full water volume to be accumulated in the basin till water reaches the lowest height on the boundary

◆ overflowVia

new unsafe ref MR.GraphEdgeId MR.Const_WatershedGraph.BasinInfo.overflowVia

get

when level=lowestBdLevel, volume=0, all water from this basin overflows via this boundary

The documentation for this class was generated from the following file:

MRWatershedGraph.cs
