MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f Class Reference

base class for most AABB-trees (except for AABBTreePoints) Generated from class MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>. Derived classes: Direct: (non-virtual) MR.AABBTreePolyline2 This is the non-const half of the class. More...

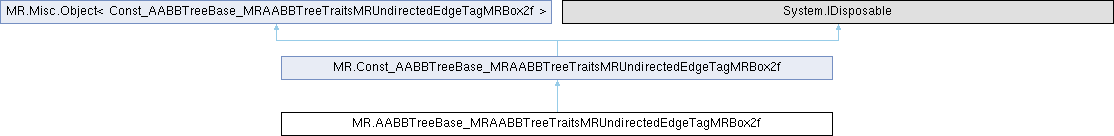

Inheritance diagram for MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f:

Public Member Functions
unsafe	AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f ()
	Constructs an empty (default-constructed) instance.
unsafe	AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f (MR._ByValue_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other)
	Generated from constructor MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::AABBTreeBase.
	AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f (Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other)
	Generated from constructor MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::AABBTreeBase.
	AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f (AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other)
	Generated from constructor MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::AABBTreeBase.
unsafe MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f	assign (MR._ByValue_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other)
	Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::operator=.
unsafe void	getLeafOrderAndReset (MR.UndirectedEdgeBMap leafMap)
	fills map: LeafId -> leaf#, then resets leaf order to 0,1,2,...; buffer in leafMap must be resized before the call, and caller is responsible for filling missing leaf elements Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>getLeafOrderAndReset.
Public Member Functions inherited from MR.Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f
virtual void	Dispose ()
unsafe	Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f (MR._ByValue_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other)
	Generated from constructor MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::AABBTreeBase.
	Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f (Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other)
	Generated from constructor MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::AABBTreeBase.
	Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f (AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other)
	Generated from constructor MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::AABBTreeBase.
unsafe MR.Const_Vector_MRAABBTreeNodeMRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f_MRNodeId	nodes ()
	const-access to all nodes Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>nodes.
unsafe MR.Box2f	getBoundingBox ()
	returns the root node bounding box Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>getBoundingBox.
unsafe ulong	heapBytes ()
	returns the amount of memory this object occupies on heap Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>heapBytes.
unsafe ulong	numLeaves ()
	returns the number of leaves in whole tree Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>numLeaves.
unsafe MR.Std.Vector_MRNodeId	getSubtrees (int minNum)
	returns at least given number of top-level not-intersecting subtrees, union of which contain all tree leaves Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>getSubtrees.
unsafe MR.UndirectedEdgeBitSet	getSubtreeLeaves (MR.NodeId subtreeRoot)
	returns all leaves in the subtree with given root Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>getSubtreeLeaves.
unsafe MR.NodeBitSet	getNodesFromLeaves (MR.Const_UndirectedEdgeBitSet leaves)
	returns set of nodes containing among direct or indirect children given leaves Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>getNodesFromLeaves.
unsafe void	getLeafOrder (MR.UndirectedEdgeBMap leafMap)
	fills map: LeafId -> leaf#; buffer in leafMap must be resized before the call, and caller is responsible for filling missing leaf elements Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>getLeafOrder.

Additional Inherited Members
Static Public Member Functions inherited from MR.Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f
static MR.NodeId	rootNodeId ()
	returns root node id Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>rootNodeId.
Protected Member Functions inherited from MR.Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f
virtual unsafe void	Dispose (bool disposing)
Properties inherited from MR.Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f
unsafe MR.Const_AABBTreeNode_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f	this[MR.NodeId nid] [get]
	const-access to any node Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::operator[].

Detailed Description

base class for most AABB-trees (except for AABBTreePoints) Generated from class MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>. Derived classes: Direct: (non-virtual) MR.AABBTreePolyline2 This is the non-const half of the class.

Constructor & Destructor Documentation

AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f() [1/4]

unsafe MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f ( )

inline

Constructs an empty (default-constructed) instance.

AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f() [2/4]

unsafe MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f ( MR._ByValue_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other )

inline

Generated from constructor MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::AABBTreeBase.

AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f() [3/4]

MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f ( Const_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other )

inline

Generated from constructor MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::AABBTreeBase.

AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f() [4/4]

MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f ( AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other )

inline

Generated from constructor MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::AABBTreeBase.

Member Function Documentation

assign()

unsafe MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f.assign ( MR._ByValue_AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f _other )

inline

Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>::operator=.

getLeafOrderAndReset()

unsafe void MR.AABBTreeBase_MRAABBTreeTraitsMRUndirectedEdgeTagMRBox2f.getLeafOrderAndReset ( MR.UndirectedEdgeBMap leafMap )

inline

fills map: LeafId -> leaf#, then resets leaf order to 0,1,2,...; buffer in leafMap must be resized before the call, and caller is responsible for filling missing leaf elements Generated from method MR::AABBTreeBase<MR::AABBTreeTraits<MR::UndirectedEdgeTag, MR.Box2f>>getLeafOrderAndReset.

---

The documentation for this class was generated from the following file:

• MRAABBTreeBase.cs
