MR.Box_Box1i Class Reference

Box given by its min- and max- corners Generated from class MR.Box1i. This is the non-const reference to the struct. More...

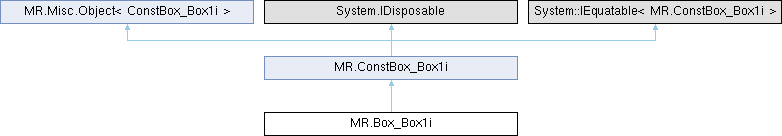

Inheritance diagram for MR.Box_Box1i:

Public Member Functions
unsafe	Box_Box1i (Box1i other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	Box_Box1i (ConstBox_Box1i _other)
	Generated copy constructor.
void	Assign (ConstBox_Box1i _other)
	Generated copy assignment.
unsafe	Box_Box1i ()
	Constructs an empty (default-constructed) instance.
unsafe	Box_Box1i (int min, int max)
	Generated from constructor MR.Box1i.Box1i.
unsafe	Box_Box1i (MR.Const_NoInit _1)
	Generated from constructor MR.Box1i.Box1i.
unsafe void	include (int pt)
	minimally increases the box to include given point Generated from method MR.Box1i.include.
unsafe void	include (in MR.Box1i b)
	minimally increases the box to include another box Generated from method MR.Box1i.include.
unsafe ref MR.Box1i	intersect (in MR.Box1i b)
	Generated from method MR.Box1i.intersect.
Public Member Functions inherited from MR.ConstBox_Box1i
unsafe	ConstBox_Box1i (Box1i other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
virtual void	Dispose ()
unsafe	ConstBox_Box1i (ConstBox_Box1i _other)
	Generated copy constructor.
unsafe	ConstBox_Box1i ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Box1i (int min, int max)
	Generated from constructor MR.Box1i.Box1i.
unsafe	ConstBox_Box1i (MR.Const_NoInit _1)
	Generated from constructor MR.Box1i.Box1i.
unsafe bool	valid ()
	true if the box contains at least one point Generated from method MR.Box1i.valid.
unsafe int	center ()
	computes center of the box Generated from method MR.Box1i.center.
unsafe int	corner (bool c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.Box1i.corner.
unsafe int	size ()
	computes size of the box in all dimensions Generated from method MR.Box1i.size.
unsafe int	diagonal ()
	computes length from min to max Generated from method MR.Box1i.diagonal.
unsafe int	volume ()
	computes the volume of this box Generated from method MR.Box1i.volume.
unsafe bool	contains (int pt)
	checks whether given point is inside (including the surface) of this box Generated from method MR.Box1i.contains.
unsafe bool	contains (in MR.Box1i otherbox)
	checks whether given box is fully inside (the surfaces may touch) of this box Generated from method MR.Box1i.contains.
unsafe int	getBoxClosestPointTo (int pt)
	returns closest point in the box to given point Generated from method MR.Box1i.getBoxClosestPointTo.
unsafe bool	intersects (in MR.Box1i b)
	checks whether this box intersects or touches given box Generated from method MR.Box1i.intersects.
unsafe MR.Box1i	intersection (in MR.Box1i b)
	computes intersection between this and other box Generated from method MR.Box1i.intersection.
unsafe int	getDistanceSq (in MR.Box1i b)
	returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method MR.Box1i.getDistanceSq.
unsafe int	getDistanceSq (int pt)
	returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method MR.Box1i.getDistanceSq.
unsafe int	getProjection (int pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.Box1i.getProjection.
unsafe MR.Box1i	expanded (int expansion)
	decreases min and increased max on given value Generated from method MR.Box1i.expanded.
unsafe MR.Box1i	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method MR.Box1i.insignificantlyExpanded.
bool	Equals (MR.ConstBox_Box1i? a)
override bool	Equals (object? other)

Properties
unsafe new ref Box1i	_Ref [get]
	Get the underlying struct.
new ref int	min [get]
new ref int	max [get]
unsafe new ref int	this[int e] [get]
	Generated from method MR.Box1i.operator[].
Properties inherited from MR.ConstBox_Box1i
unsafe ref readonly Box1i	_Ref [get]
	Get the underlying struct.
ref readonly int	min [get]
ref readonly int	max [get]
static unsafe int	Elements [get]
unsafe int	this[int e] [get]
	min/max access by 0/1 index Generated from method MR.Box1i.operator[].
Properties inherited from MR.Misc.Object< ConstBox_Box1i >
virtual bool	_IsOwning [get]
	Returns true if this is an owning instance, and when disposed, will destroy the underlying C++ instance. If false, we assume that the underlying C++ instance will live long enough.

Additional Inherited Members
Static Public Member Functions inherited from MR.ConstBox_Box1i
static implicit	operator ConstBox_Box1i (Box1i other)
	Convert from a struct by copying it. Note that only ConstBox_Box1i has this conversion, Box_Box1i intentionally doesn't.
static unsafe MR.Box1i	fromMinAndSize (int min, int size)
	Generated from method MR.Box1i.fromMinAndSize.
static unsafe bool	getMinBoxCorner (int n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.Box1i.getMinBoxCorner.
static unsafe bool	getMaxBoxCorner (int n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.Box1i.getMaxBoxCorner.
static unsafe bool	operator== (MR.ConstBox_Box1i _this, MR.ConstBox_Box1i a)
	Generated from method MR.Box1i.operator==.
static unsafe bool	operator!= (MR.ConstBox_Box1i _this, MR.ConstBox_Box1i a)
Protected Member Functions inherited from MR.ConstBox_Box1i
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Misc.Object< ConstBox_Box1i >
bool	_IsOwningVal

Detailed Description

Box given by its min- and max- corners Generated from class MR.Box1i. This is the non-const reference to the struct.

---

The documentation for this class was generated from the following file:

• MRBox.cs
