MR.Box_Matrix2f Class Reference

arbitrary 2x2 matrix Generated from class MR.Matrix2f. This is the non-const reference to the struct. More...

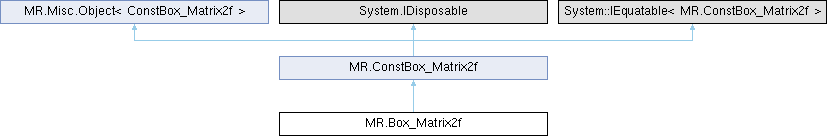

Inheritance diagram for MR.Box_Matrix2f:

Public Member Functions
unsafe	Box_Matrix2f (Matrix2f other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	Box_Matrix2f (ConstBox_Matrix2f _other)
	Generated copy constructor.
void	Assign (ConstBox_Matrix2f _other)
	Generated copy assignment.
unsafe	Box_Matrix2f ()
	Constructs an empty (default-constructed) instance.
unsafe	Box_Matrix2f (in MR.Vector2f x, in MR.Vector2f y)
	initializes matrix from its 2 rows Generated from constructor MR.Matrix2f.Matrix2f.
unsafe ref MR.Matrix2f	addAssign (in MR.Matrix2f b)
	Generated from function MR.operator+=.
unsafe ref MR.Matrix2f	subAssign (in MR.Matrix2f b)
	Generated from function MR.operator-=.
unsafe ref MR.Matrix2f	mulAssign (float b)
	Generated from function MR.operator*=.
unsafe ref MR.Matrix2f	divAssign (float b)
	Generated from function MR.operator/=.
Public Member Functions inherited from MR.ConstBox_Matrix2f
virtual void	Dispose ()
unsafe	ConstBox_Matrix2f (Matrix2f other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	ConstBox_Matrix2f (ConstBox_Matrix2f _other)
	Generated copy constructor.
unsafe	ConstBox_Matrix2f ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Matrix2f (in MR.Vector2f x, in MR.Vector2f y)
	initializes matrix from its 2 rows Generated from constructor MR.Matrix2f.Matrix2f.
unsafe MR.Vector2f	col (int i)
	column access Generated from method MR.Matrix2f.col.
unsafe float	trace ()
	computes trace of the matrix Generated from method MR.Matrix2f.trace.
unsafe float	normSq ()
	compute sum of squared matrix elements Generated from method MR.Matrix2f.normSq.
unsafe float	norm ()
	Generated from method MR.Matrix2f.norm.
unsafe float	det ()
	computes determinant of the matrix Generated from method MR.Matrix2f.det.
unsafe MR.Matrix2f	inverse ()
	computes inverse matrix Generated from method MR.Matrix2f.inverse.
unsafe MR.Matrix2f	transposed ()
	computes transposed matrix Generated from method MR.Matrix2f.transposed.
bool	Equals (MR.ConstBox_Matrix2f? b)
override bool	Equals (object? other)

Properties
new ref MR.Vector2f	x [get]
	rows, identity matrix by default
new ref MR.Vector2f	y [get]
unsafe new ref MR.Vector2f	this[int row] [get]
	Generated from method MR.Matrix2f.operator[].
Properties inherited from MR.ConstBox_Matrix2f
ref readonly MR.Vector2f	x [get]
	rows, identity matrix by default
ref readonly MR.Vector2f	y [get]
unsafe ref readonly MR.Vector2f	this[int row] [get]
	row access Generated from method MR.Matrix2f.operator[].

Additional Inherited Members
Static Public Member Functions inherited from MR.ConstBox_Matrix2f
static implicit	operator ConstBox_Matrix2f (Matrix2f other)
	Convert from a struct by copying it. Note that only ConstBox_Matrix2f has this conversion, Box_Matrix2f intentionally doesn't.
static MR.Matrix2f	zero ()
	Generated from method MR.Matrix2f.zero.
static MR.Matrix2f	identity ()
	Generated from method MR.Matrix2f.identity.
static MR.Matrix2f	scale (float s)
	returns a matrix that scales uniformly Generated from method MR.Matrix2f.scale.
static MR.Matrix2f	scale (float sx, float sy)
	returns a matrix that has its own scale along each axis Generated from method MR.Matrix2f.scale.
static unsafe MR.Matrix2f	scale (in MR.Vector2f s)
	Generated from method MR.Matrix2f.scale.
static MR.Matrix2f	rotation (float angle)
	creates matrix representing rotation around origin on given angle Generated from method MR.Matrix2f.rotation.
static unsafe MR.Matrix2f	rotation (in MR.Vector2f from, in MR.Vector2f to)
	creates matrix representing rotation that after application to (from) makes (to) vector Generated from method MR.Matrix2f.rotation.
static unsafe MR.Matrix2f	fromRows (in MR.Vector2f x, in MR.Vector2f y)
	constructs a matrix from its 2 rows Generated from method MR.Matrix2f.fromRows.
static unsafe MR.Matrix2f	fromColumns (in MR.Vector2f x, in MR.Vector2f y)
	constructs a matrix from its 2 columns; use this method to get the matrix that transforms basis vectors ( plusX, plusY ) into vectors ( x, y ) respectively Generated from method MR.Matrix2f.fromColumns.
static unsafe bool	operator== (MR.ConstBox_Matrix2f a, MR.ConstBox_Matrix2f b)
	Generated from function MR.operator==.
static unsafe bool	operator!= (MR.ConstBox_Matrix2f a, MR.ConstBox_Matrix2f b)
static unsafe MR.Matrix2f	operator+ (MR.ConstBox_Matrix2f a, in MR.Matrix2f b)
	Generated from function MR.operator+.
static unsafe MR.Matrix2f	operator- (MR.ConstBox_Matrix2f a, in MR.Matrix2f b)
	Generated from function MR.operator-.
static unsafe MR.Matrix2f	operator* (float a, MR.ConstBox_Matrix2f b)
	Generated from function MR.operator*.
static unsafe MR.Matrix2f	operator* (MR.ConstBox_Matrix2f b, float a)
	Generated from function MR.operator*.
static unsafe MR.Matrix2f	operator/ (ConstBox_Matrix2f b, float a)
	Generated from function MR.operator/.
static unsafe MR.Vector2f	operator* (MR.ConstBox_Matrix2f a, in MR.Vector2f b)
	x = a * b Generated from function MR.operator*.
static unsafe MR.Matrix2f	operator* (MR.ConstBox_Matrix2f a, in MR.Matrix2f b)
	product of two matrices Generated from function MR.operator*.
Protected Member Functions inherited from MR.ConstBox_Matrix2f
virtual unsafe void	Dispose (bool disposing)

Detailed Description

arbitrary 2x2 matrix Generated from class MR.Matrix2f. This is the non-const reference to the struct.

Constructor & Destructor Documentation

Box_Matrix2f() [1/4]

unsafe MR.Box_Matrix2f.Box_Matrix2f ( Matrix2f other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

Box_Matrix2f() [2/4]

unsafe MR.Box_Matrix2f.Box_Matrix2f ( ConstBox_Matrix2f _other )

inline

Generated copy constructor.

Box_Matrix2f() [3/4]

unsafe MR.Box_Matrix2f.Box_Matrix2f ( )

inline

Constructs an empty (default-constructed) instance.

Box_Matrix2f() [4/4]

unsafe MR.Box_Matrix2f.Box_Matrix2f ( in MR.Vector2f x, in MR.Vector2f y )

inline

initializes matrix from its 2 rows Generated from constructor MR.Matrix2f.Matrix2f.

Member Function Documentation

addAssign()

unsafe ref MR.Matrix2f MR.Box_Matrix2f.addAssign ( in MR.Matrix2f b )

inline

Generated from function MR.operator+=.

Assign()

void MR.Box_Matrix2f.Assign ( ConstBox_Matrix2f _other )

inline

Generated copy assignment.

divAssign()

unsafe ref MR.Matrix2f MR.Box_Matrix2f.divAssign ( float b )

inline

Generated from function MR.operator/=.

mulAssign()

unsafe ref MR.Matrix2f MR.Box_Matrix2f.mulAssign ( float b )

inline

Generated from function MR.operator*=.

subAssign()

unsafe ref MR.Matrix2f MR.Box_Matrix2f.subAssign ( in MR.Matrix2f b )

inline

Generated from function MR.operator-=.

Property Documentation

this[int row]

unsafe new ref MR.Vector2f MR.Box_Matrix2f.this[int row]

get

Generated from method MR.Matrix2f.operator[].

x

new ref MR.Vector2f MR.Box_Matrix2f.x

get

rows, identity matrix by default

y

new ref MR.Vector2f MR.Box_Matrix2f.y

get

---

The documentation for this class was generated from the following file:

• MRMatrix2.cs
