Box given by its min- and max- corners Generated from class MR.Box1i64. This is the const reference to the struct. More...

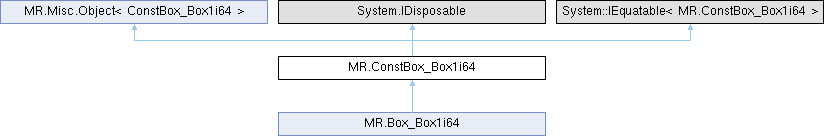

Inheritance diagram for MR.ConstBox_Box1i64:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()

unsafe	ConstBox_Box1i64 (Box1i64 other)
	Make a copy of a struct. (Even though we initially pass `is_owning: false`, we then use the copy constructor to produce an owning instance.)

unsafe	ConstBox_Box1i64 (ConstBox_Box1i64 _other)
	Generated copy constructor.

unsafe	ConstBox_Box1i64 ()
	Constructs an empty (default-constructed) instance.

unsafe	ConstBox_Box1i64 (long min, long max)
	Generated from constructor `MR.Box1i64.Box1i64`.

unsafe	ConstBox_Box1i64 (MR.Const_NoInit _1)
	Generated from constructor `MR.Box1i64.Box1i64`.

unsafe bool	valid ()
	true if the box contains at least one point Generated from method `MR.Box1i64.valid`.

unsafe long	center ()
	computes center of the box Generated from method `MR.Box1i64.center`.

unsafe long	corner (bool c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method `MR.Box1i64.corner`.

unsafe long	size ()
	computes size of the box in all dimensions Generated from method `MR.Box1i64.size`.

unsafe long	diagonal ()
	computes length from min to max Generated from method `MR.Box1i64.diagonal`.

unsafe long	volume ()
	computes the volume of this box Generated from method `MR.Box1i64.volume`.

unsafe bool	contains (long pt)
	checks whether given point is inside (including the surface) of this box Generated from method `MR.Box1i64.contains`.

unsafe bool	contains (in MR.Box1i64 otherbox)
	checks whether given box is fully inside (the surfaces may touch) of this box Generated from method `MR.Box1i64.contains`.

unsafe long	getBoxClosestPointTo (long pt)
	returns closest point in the box to given point Generated from method `MR.Box1i64.getBoxClosestPointTo`.

unsafe bool	intersects (in MR.Box1i64 b)
	checks whether this box intersects or touches given box Generated from method `MR.Box1i64.intersects`.

unsafe MR.Box1i64	intersection (in MR.Box1i64 b)
	computes intersection between this and other box Generated from method `MR.Box1i64.intersection`.

unsafe long	getDistanceSq (in MR.Box1i64 b)
	returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method `MR.Box1i64.getDistanceSq`.

unsafe long	getDistanceSq (long pt)
	returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method `MR.Box1i64.getDistanceSq`.

unsafe long	getProjection (long pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method `MR.Box1i64.getProjection`.

unsafe MR.Box1i64	expanded (long expansion)
	decreases min and increased max on given value Generated from method `MR.Box1i64.expanded`.

unsafe MR.Box1i64	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method `MR.Box1i64.insignificantlyExpanded`.

bool	Equals (MR.ConstBox_Box1i64? a)

override bool	Equals (object? other)

Static Public Member Functions
static implicit	operator ConstBox_Box1i64 (Box1i64 other)
	Convert from a struct by copying it. Note that only `ConstBox_Box1i64` has this conversion, `Box_Box1i64` intentionally doesn't.

static unsafe MR.Box1i64	fromMinAndSize (long min, long size)
	Generated from method `MR.Box1i64.fromMinAndSize`.

static unsafe bool	getMinBoxCorner (long n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method `MR.Box1i64.getMinBoxCorner`.

static unsafe bool	getMaxBoxCorner (long n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method `MR.Box1i64.getMaxBoxCorner`.

static unsafe bool	operator== (MR.ConstBox_Box1i64 _this, MR.ConstBox_Box1i64 a)
	Generated from method `MR.Box1i64.operator==`.

static unsafe bool	operator!= (MR.ConstBox_Box1i64 _this, MR.ConstBox_Box1i64 a)

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Static Protected Attributes
static unsafe int *	__ref_storage_Elements

Properties
ref readonly long	min `[get]`

ref readonly long	max `[get]`

static unsafe int	Elements `[get]`

unsafe long	this[int e] `[get]`
	min/max access by 0/1 index Generated from method `MR.Box1i64.operator[]`.

Detailed Description

Box given by its min- and max- corners Generated from class MR.Box1i64. This is the const reference to the struct.

Constructor & Destructor Documentation

◆ ConstBox_Box1i64() [1/5]

unsafe MR.ConstBox_Box1i64.ConstBox_Box1i64 ( Box1i64 other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

◆ ConstBox_Box1i64() [2/5]

unsafe MR.ConstBox_Box1i64.ConstBox_Box1i64 ( ConstBox_Box1i64 _other )

inline

Generated copy constructor.

◆ ConstBox_Box1i64() [3/5]

unsafe MR.ConstBox_Box1i64.ConstBox_Box1i64 ( )

inline

Constructs an empty (default-constructed) instance.

◆ ConstBox_Box1i64() [4/5]

unsafe MR.ConstBox_Box1i64.ConstBox_Box1i64	(	long	min,
		long	max )

inline

Generated from constructor MR.Box1i64.Box1i64.

◆ ConstBox_Box1i64() [5/5]

unsafe MR.ConstBox_Box1i64.ConstBox_Box1i64 ( MR.Const_NoInit _1 )

inline

Generated from constructor MR.Box1i64.Box1i64.

Member Function Documentation

◆ center()

unsafe long MR.ConstBox_Box1i64.center ( )

inline

computes center of the box Generated from method MR.Box1i64.center.

◆ contains() [1/2]

unsafe bool MR.ConstBox_Box1i64.contains ( in MR.Box1i64 otherbox )

inline

checks whether given box is fully inside (the surfaces may touch) of this box Generated from method MR.Box1i64.contains.

◆ contains() [2/2]

unsafe bool MR.ConstBox_Box1i64.contains ( long pt )

inline

checks whether given point is inside (including the surface) of this box Generated from method MR.Box1i64.contains.

◆ corner()

unsafe long MR.ConstBox_Box1i64.corner ( bool c )

inline

returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.Box1i64.corner.

◆ diagonal()

unsafe long MR.ConstBox_Box1i64.diagonal ( )

inline

computes length from min to max Generated from method MR.Box1i64.diagonal.

◆ Dispose() [1/2]

virtual void MR.ConstBox_Box1i64.Dispose ( )

inlinevirtual

◆ Dispose() [2/2]

virtual unsafe void MR.ConstBox_Box1i64.Dispose ( bool disposing )

inlineprotectedvirtual

◆ Equals() [1/2]

bool MR.ConstBox_Box1i64.Equals ( MR.ConstBox_Box1i64? a )

inline

◆ Equals() [2/2]

override bool MR.ConstBox_Box1i64.Equals ( object? other )

inline

◆ expanded()

unsafe MR.Box1i64 MR.ConstBox_Box1i64.expanded ( long expansion )

inline

decreases min and increased max on given value Generated from method MR.Box1i64.expanded.

◆ fromMinAndSize()

static unsafe MR.Box1i64 MR.ConstBox_Box1i64.fromMinAndSize	(	long	min,
		long	size )

inlinestatic

Generated from method MR.Box1i64.fromMinAndSize.

◆ getBoxClosestPointTo()

unsafe long MR.ConstBox_Box1i64.getBoxClosestPointTo ( long pt )

inline

returns closest point in the box to given point Generated from method MR.Box1i64.getBoxClosestPointTo.

◆ getDistanceSq() [1/2]

unsafe long MR.ConstBox_Box1i64.getDistanceSq ( in MR.Box1i64 b )

inline

returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method MR.Box1i64.getDistanceSq.

◆ getDistanceSq() [2/2]

unsafe long MR.ConstBox_Box1i64.getDistanceSq ( long pt )

inline

returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method MR.Box1i64.getDistanceSq.

◆ getMaxBoxCorner()

static unsafe bool MR.ConstBox_Box1i64.getMaxBoxCorner ( long n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.Box1i64.getMaxBoxCorner.

◆ getMinBoxCorner()

static unsafe bool MR.ConstBox_Box1i64.getMinBoxCorner ( long n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.Box1i64.getMinBoxCorner.

◆ getProjection()

unsafe long MR.ConstBox_Box1i64.getProjection ( long pt )

inline

returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.Box1i64.getProjection.

◆ insignificantlyExpanded()

unsafe MR.Box1i64 MR.ConstBox_Box1i64.insignificantlyExpanded ( )

inline

decreases min and increases max to their closest representable value Generated from method MR.Box1i64.insignificantlyExpanded.

◆ intersection()

unsafe MR.Box1i64 MR.ConstBox_Box1i64.intersection ( in MR.Box1i64 b )

inline

computes intersection between this and other box Generated from method MR.Box1i64.intersection.

◆ intersects()

unsafe bool MR.ConstBox_Box1i64.intersects ( in MR.Box1i64 b )

inline

checks whether this box intersects or touches given box Generated from method MR.Box1i64.intersects.

◆ operator ConstBox_Box1i64()

static implicit MR.ConstBox_Box1i64.operator ConstBox_Box1i64 ( Box1i64 other )

inlinestatic

Convert from a struct by copying it. Note that only ConstBox_Box1i64 has this conversion, Box_Box1i64 intentionally doesn't.

◆ operator!=()

static unsafe bool MR.ConstBox_Box1i64.operator!=	(	MR.ConstBox_Box1i64	_this,
		MR.ConstBox_Box1i64	a )

inlinestatic

◆ operator==()

static unsafe bool MR.ConstBox_Box1i64.operator==	(	MR.ConstBox_Box1i64	_this,
		MR.ConstBox_Box1i64	a )

inlinestatic

Generated from method MR.Box1i64.operator==.

◆ size()

unsafe long MR.ConstBox_Box1i64.size ( )

inline

computes size of the box in all dimensions Generated from method MR.Box1i64.size.

◆ valid()

unsafe bool MR.ConstBox_Box1i64.valid ( )

inline

true if the box contains at least one point Generated from method MR.Box1i64.valid.

◆ volume()

unsafe long MR.ConstBox_Box1i64.volume ( )

inline

computes the volume of this box Generated from method MR.Box1i64.volume.

Member Data Documentation

◆ __ref_storage_Elements

unsafe int* MR.ConstBox_Box1i64.__ref_storage_Elements

staticprotected

Property Documentation

◆ Elements

unsafe int MR.ConstBox_Box1i64.Elements

staticget

◆ max

ref readonly long MR.ConstBox_Box1i64.max

get

◆ min

ref readonly long MR.ConstBox_Box1i64.min

get

◆ this[int e]

unsafe long MR.ConstBox_Box1i64.this[int e]

get

min/max access by 0/1 index Generated from method MR.Box1i64.operator[].

The documentation for this class was generated from the following file:

MRBox.cs
