MR.ConstBox_Box2i Class Reference

Box given by its min- and max- corners Generated from class MR.Box2i. This is the const reference to the struct. More...

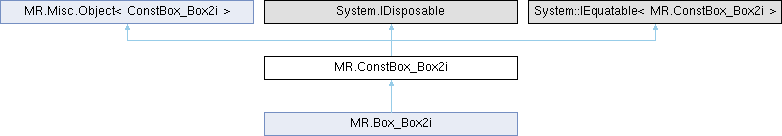

Inheritance diagram for MR.ConstBox_Box2i:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	ConstBox_Box2i (Box2i other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	ConstBox_Box2i (ConstBox_Box2i _other)
	Generated copy constructor.
unsafe	ConstBox_Box2i ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Box2i (in MR.Vector2i min, in MR.Vector2i max)
	Generated from constructor MR.Box2i.Box2i.
unsafe	ConstBox_Box2i (MR.Const_NoInit _1)
	Generated from constructor MR.Box2i.Box2i.
unsafe bool	valid ()
	true if the box contains at least one point Generated from method MR.Box2i.valid.
unsafe MR.Vector2i	center ()
	computes center of the box Generated from method MR.Box2i.center.
unsafe MR.Vector2i	corner (in MR.Vector2b c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.Box2i.corner.
unsafe MR.Vector2i	size ()
	computes size of the box in all dimensions Generated from method MR.Box2i.size.
unsafe int	diagonal ()
	computes length from min to max Generated from method MR.Box2i.diagonal.
unsafe int	volume ()
	computes the volume of this box Generated from method MR.Box2i.volume.
unsafe bool	contains (in MR.Vector2i pt)
	checks whether given point is inside (including the surface) of this box Generated from method MR.Box2i.contains.
unsafe bool	contains (in MR.Box2i otherbox)
	checks whether given box is fully inside (the surfaces may touch) of this box Generated from method MR.Box2i.contains.
unsafe MR.Vector2i	getBoxClosestPointTo (in MR.Vector2i pt)
	returns closest point in the box to given point Generated from method MR.Box2i.getBoxClosestPointTo.
unsafe bool	intersects (in MR.Box2i b)
	checks whether this box intersects or touches given box Generated from method MR.Box2i.intersects.
unsafe MR.Box2i	intersection (in MR.Box2i b)
	computes intersection between this and other box Generated from method MR.Box2i.intersection.
unsafe int	getDistanceSq (in MR.Box2i b)
	returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method MR.Box2i.getDistanceSq.
unsafe int	getDistanceSq (in MR.Vector2i pt)
	returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method MR.Box2i.getDistanceSq.
unsafe MR.Vector2i	getProjection (in MR.Vector2i pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.Box2i.getProjection.
unsafe MR.Box2i	expanded (in MR.Vector2i expansion)
	decreases min and increased max on given value Generated from method MR.Box2i.expanded.
unsafe MR.Box2i	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method MR.Box2i.insignificantlyExpanded.
bool	Equals (MR.ConstBox_Box2i? a)
override bool	Equals (object? other)

Static Public Member Functions
static implicit	operator ConstBox_Box2i (Box2i other)
	Convert from a struct by copying it. Note that only ConstBox_Box2i has this conversion, Box_Box2i intentionally doesn't.
static unsafe MR.Box2i	fromMinAndSize (in MR.Vector2i min, in MR.Vector2i size)
	Generated from method MR.Box2i.fromMinAndSize.
static unsafe MR.Vector2b	getMinBoxCorner (in MR.Vector2i n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.Box2i.getMinBoxCorner.
static unsafe MR.Vector2b	getMaxBoxCorner (in MR.Vector2i n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.Box2i.getMaxBoxCorner.
static unsafe bool	operator== (MR.ConstBox_Box2i _this, MR.ConstBox_Box2i a)
	Generated from method MR.Box2i.operator==.
static unsafe bool	operator!= (MR.ConstBox_Box2i _this, MR.ConstBox_Box2i a)

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Static Protected Attributes
static unsafe int *	__ref_storage_Elements

Properties
ref readonly MR.Vector2i	min [get]
ref readonly MR.Vector2i	max [get]
static unsafe int	Elements [get]
unsafe ref readonly MR.Vector2i	this[int e] [get]
	min/max access by 0/1 index Generated from method MR.Box2i.operator[].

Detailed Description

Box given by its min- and max- corners Generated from class MR.Box2i. This is the const reference to the struct.

Constructor & Destructor Documentation

ConstBox_Box2i() [1/5]

unsafe MR.ConstBox_Box2i.ConstBox_Box2i ( Box2i other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

ConstBox_Box2i() [2/5]

unsafe MR.ConstBox_Box2i.ConstBox_Box2i ( ConstBox_Box2i _other )

inline

Generated copy constructor.

ConstBox_Box2i() [3/5]

unsafe MR.ConstBox_Box2i.ConstBox_Box2i ( )

inline

Constructs an empty (default-constructed) instance.

ConstBox_Box2i() [4/5]

unsafe MR.ConstBox_Box2i.ConstBox_Box2i ( in MR.Vector2i min, in MR.Vector2i max )

inline

Generated from constructor MR.Box2i.Box2i.

ConstBox_Box2i() [5/5]

unsafe MR.ConstBox_Box2i.ConstBox_Box2i ( MR.Const_NoInit _1 )

inline

Generated from constructor MR.Box2i.Box2i.

Member Function Documentation

center()

unsafe MR.Vector2i MR.ConstBox_Box2i.center ( )

inline

computes center of the box Generated from method MR.Box2i.center.

contains() [1/2]

unsafe bool MR.ConstBox_Box2i.contains ( in MR.Box2i otherbox )

inline

checks whether given box is fully inside (the surfaces may touch) of this box Generated from method MR.Box2i.contains.

contains() [2/2]

unsafe bool MR.ConstBox_Box2i.contains ( in MR.Vector2i pt )

inline

checks whether given point is inside (including the surface) of this box Generated from method MR.Box2i.contains.

corner()

unsafe MR.Vector2i MR.ConstBox_Box2i.corner ( in MR.Vector2b c )

inline

returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.Box2i.corner.

diagonal()

unsafe int MR.ConstBox_Box2i.diagonal ( )

inline

computes length from min to max Generated from method MR.Box2i.diagonal.

Dispose() [1/2]

virtual void MR.ConstBox_Box2i.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.ConstBox_Box2i.Dispose ( bool disposing )

inlineprotectedvirtual

Equals() [1/2]

bool MR.ConstBox_Box2i.Equals ( MR.ConstBox_Box2i? a )

inline

Equals() [2/2]

override bool MR.ConstBox_Box2i.Equals ( object? other )

inline

expanded()

unsafe MR.Box2i MR.ConstBox_Box2i.expanded ( in MR.Vector2i expansion )

inline

decreases min and increased max on given value Generated from method MR.Box2i.expanded.

fromMinAndSize()

static unsafe MR.Box2i MR.ConstBox_Box2i.fromMinAndSize ( in MR.Vector2i min, in MR.Vector2i size )

inlinestatic

Generated from method MR.Box2i.fromMinAndSize.

getBoxClosestPointTo()

unsafe MR.Vector2i MR.ConstBox_Box2i.getBoxClosestPointTo ( in MR.Vector2i pt )

inline

returns closest point in the box to given point Generated from method MR.Box2i.getBoxClosestPointTo.

getDistanceSq() [1/2]

unsafe int MR.ConstBox_Box2i.getDistanceSq ( in MR.Box2i b )

inline

returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method MR.Box2i.getDistanceSq.

getDistanceSq() [2/2]

unsafe int MR.ConstBox_Box2i.getDistanceSq ( in MR.Vector2i pt )

inline

returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method MR.Box2i.getDistanceSq.

getMaxBoxCorner()

static unsafe MR.Vector2b MR.ConstBox_Box2i.getMaxBoxCorner ( in MR.Vector2i n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.Box2i.getMaxBoxCorner.

getMinBoxCorner()

static unsafe MR.Vector2b MR.ConstBox_Box2i.getMinBoxCorner ( in MR.Vector2i n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.Box2i.getMinBoxCorner.

getProjection()

unsafe MR.Vector2i MR.ConstBox_Box2i.getProjection ( in MR.Vector2i pt )

inline

returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.Box2i.getProjection.

insignificantlyExpanded()

unsafe MR.Box2i MR.ConstBox_Box2i.insignificantlyExpanded ( )

inline

decreases min and increases max to their closest representable value Generated from method MR.Box2i.insignificantlyExpanded.

intersection()

unsafe MR.Box2i MR.ConstBox_Box2i.intersection ( in MR.Box2i b )

inline

computes intersection between this and other box Generated from method MR.Box2i.intersection.

intersects()

unsafe bool MR.ConstBox_Box2i.intersects ( in MR.Box2i b )

inline

checks whether this box intersects or touches given box Generated from method MR.Box2i.intersects.

operator ConstBox_Box2i()

static implicit MR.ConstBox_Box2i.operator ConstBox_Box2i ( Box2i other )

inlinestatic

Convert from a struct by copying it. Note that only ConstBox_Box2i has this conversion, Box_Box2i intentionally doesn't.

operator!=()

static unsafe bool MR.ConstBox_Box2i.operator!= ( MR.ConstBox_Box2i _this, MR.ConstBox_Box2i a )

inlinestatic

operator==()

static unsafe bool MR.ConstBox_Box2i.operator== ( MR.ConstBox_Box2i _this, MR.ConstBox_Box2i a )

inlinestatic

Generated from method MR.Box2i.operator==.

size()

unsafe MR.Vector2i MR.ConstBox_Box2i.size ( )

inline

computes size of the box in all dimensions Generated from method MR.Box2i.size.

valid()

unsafe bool MR.ConstBox_Box2i.valid ( )

inline

true if the box contains at least one point Generated from method MR.Box2i.valid.

volume()

unsafe int MR.ConstBox_Box2i.volume ( )

inline

computes the volume of this box Generated from method MR.Box2i.volume.

Member Data Documentation

__ref_storage_Elements

unsafe int* MR.ConstBox_Box2i.__ref_storage_Elements

staticprotected

Property Documentation

Elements

unsafe int MR.ConstBox_Box2i.Elements

staticget

max

ref readonly MR.Vector2i MR.ConstBox_Box2i.max

get

min

ref readonly MR.Vector2i MR.ConstBox_Box2i.min

get

this[int e]

unsafe ref readonly MR.Vector2i MR.ConstBox_Box2i.this[int e]

get

min/max access by 0/1 index Generated from method MR.Box2i.operator[].

---

The documentation for this class was generated from the following file:

• MRBox.cs
