Box given by its min- and max- corners Generated from class MR.Box3d. This is the const reference to the struct. More...

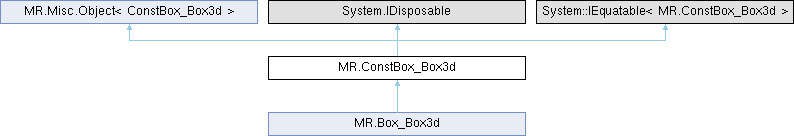

Inheritance diagram for MR.ConstBox_Box3d:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()

unsafe	ConstBox_Box3d (Box3d other)
	Make a copy of a struct. (Even though we initially pass `is_owning: false`, we then use the copy constructor to produce an owning instance.)

unsafe	ConstBox_Box3d (ConstBox_Box3d _other)
	Generated copy constructor.

unsafe	ConstBox_Box3d ()
	Constructs an empty (default-constructed) instance.

unsafe	ConstBox_Box3d (in MR.Vector3d min, in MR.Vector3d max)
	Generated from constructor `MR.Box3d.Box3d`.

unsafe	ConstBox_Box3d (MR.Const_NoInit _1)
	Generated from constructor `MR.Box3d.Box3d`.

unsafe bool	valid ()
	true if the box contains at least one point Generated from method `MR.Box3d.valid`.

unsafe MR.Vector3d	center ()
	computes center of the box Generated from method `MR.Box3d.center`.

unsafe MR.Vector3d	corner (in MR.Vector3b c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method `MR.Box3d.corner`.

unsafe MR.Vector3d	size ()
	computes size of the box in all dimensions Generated from method `MR.Box3d.size`.

unsafe double	diagonal ()
	computes length from min to max Generated from method `MR.Box3d.diagonal`.

unsafe double	volume ()
	computes the volume of this box Generated from method `MR.Box3d.volume`.

unsafe bool	contains (in MR.Vector3d pt)
	checks whether given point is inside (including the surface) of this box Generated from method `MR.Box3d.contains`.

unsafe bool	contains (in MR.Box3d otherbox)
	checks whether given box is fully inside (the surfaces may touch) of this box Generated from method `MR.Box3d.contains`.

unsafe MR.Vector3d	getBoxClosestPointTo (in MR.Vector3d pt)
	returns closest point in the box to given point Generated from method `MR.Box3d.getBoxClosestPointTo`.

unsafe bool	intersects (in MR.Box3d b)
	checks whether this box intersects or touches given box Generated from method `MR.Box3d.intersects`.

unsafe MR.Box3d	intersection (in MR.Box3d b)
	computes intersection between this and other box Generated from method `MR.Box3d.intersection`.

unsafe double	getDistanceSq (in MR.Box3d b)
	returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method `MR.Box3d.getDistanceSq`.

unsafe double	getDistanceSq (in MR.Vector3d pt)
	returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method `MR.Box3d.getDistanceSq`.

unsafe MR.Vector3d	getProjection (in MR.Vector3d pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method `MR.Box3d.getProjection`.

unsafe MR.Box3d	expanded (in MR.Vector3d expansion)
	decreases min and increased max on given value Generated from method `MR.Box3d.expanded`.

unsafe MR.Box3d	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method `MR.Box3d.insignificantlyExpanded`.

bool	Equals (MR.ConstBox_Box3d? a)

override bool	Equals (object? other)

Static Public Member Functions
static implicit	operator ConstBox_Box3d (Box3d other)
	Convert from a struct by copying it. Note that only `ConstBox_Box3d` has this conversion, `Box_Box3d` intentionally doesn't.

static unsafe MR.Box3d	fromMinAndSize (in MR.Vector3d min, in MR.Vector3d size)
	Generated from method `MR.Box3d.fromMinAndSize`.

static unsafe MR.Vector3b	getMinBoxCorner (in MR.Vector3d n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method `MR.Box3d.getMinBoxCorner`.

static unsafe MR.Vector3b	getMaxBoxCorner (in MR.Vector3d n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method `MR.Box3d.getMaxBoxCorner`.

static unsafe bool	operator== (MR.ConstBox_Box3d _this, MR.ConstBox_Box3d a)
	Generated from method `MR.Box3d.operator==`.

static unsafe bool	operator!= (MR.ConstBox_Box3d _this, MR.ConstBox_Box3d a)

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Static Protected Attributes
static unsafe int *	__ref_storage_Elements

Properties
ref readonly MR.Vector3d	min `[get]`

ref readonly MR.Vector3d	max `[get]`

static unsafe int	Elements `[get]`

unsafe ref readonly MR.Vector3d	this[int e] `[get]`
	min/max access by 0/1 index Generated from method `MR.Box3d.operator[]`.

Detailed Description

Box given by its min- and max- corners Generated from class MR.Box3d. This is the const reference to the struct.

Constructor & Destructor Documentation

◆ ConstBox_Box3d() [1/5]

unsafe MR.ConstBox_Box3d.ConstBox_Box3d ( Box3d other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

◆ ConstBox_Box3d() [2/5]

unsafe MR.ConstBox_Box3d.ConstBox_Box3d ( ConstBox_Box3d _other )

inline

Generated copy constructor.

◆ ConstBox_Box3d() [3/5]

unsafe MR.ConstBox_Box3d.ConstBox_Box3d ( )

inline

Constructs an empty (default-constructed) instance.

◆ ConstBox_Box3d() [4/5]

unsafe MR.ConstBox_Box3d.ConstBox_Box3d	(	in MR.Vector3d	min,
		in MR.Vector3d	max )

inline

Generated from constructor MR.Box3d.Box3d.

◆ ConstBox_Box3d() [5/5]

unsafe MR.ConstBox_Box3d.ConstBox_Box3d ( MR.Const_NoInit _1 )

inline

Generated from constructor MR.Box3d.Box3d.

Member Function Documentation

◆ center()

unsafe MR.Vector3d MR.ConstBox_Box3d.center ( )

inline

computes center of the box Generated from method MR.Box3d.center.

◆ contains() [1/2]

unsafe bool MR.ConstBox_Box3d.contains ( in MR.Box3d otherbox )

inline

checks whether given box is fully inside (the surfaces may touch) of this box Generated from method MR.Box3d.contains.

◆ contains() [2/2]

unsafe bool MR.ConstBox_Box3d.contains ( in MR.Vector3d pt )

inline

checks whether given point is inside (including the surface) of this box Generated from method MR.Box3d.contains.

◆ corner()

unsafe MR.Vector3d MR.ConstBox_Box3d.corner ( in MR.Vector3b c )

inline

returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.Box3d.corner.

◆ diagonal()

unsafe double MR.ConstBox_Box3d.diagonal ( )

inline

computes length from min to max Generated from method MR.Box3d.diagonal.

◆ Dispose() [1/2]

virtual void MR.ConstBox_Box3d.Dispose ( )

inlinevirtual

◆ Dispose() [2/2]

virtual unsafe void MR.ConstBox_Box3d.Dispose ( bool disposing )

inlineprotectedvirtual

◆ Equals() [1/2]

bool MR.ConstBox_Box3d.Equals ( MR.ConstBox_Box3d? a )

inline

◆ Equals() [2/2]

override bool MR.ConstBox_Box3d.Equals ( object? other )

inline

◆ expanded()

unsafe MR.Box3d MR.ConstBox_Box3d.expanded ( in MR.Vector3d expansion )

inline

decreases min and increased max on given value Generated from method MR.Box3d.expanded.

◆ fromMinAndSize()

static unsafe MR.Box3d MR.ConstBox_Box3d.fromMinAndSize	(	in MR.Vector3d	min,
		in MR.Vector3d	size )

inlinestatic

Generated from method MR.Box3d.fromMinAndSize.

◆ getBoxClosestPointTo()

unsafe MR.Vector3d MR.ConstBox_Box3d.getBoxClosestPointTo ( in MR.Vector3d pt )

inline

returns closest point in the box to given point Generated from method MR.Box3d.getBoxClosestPointTo.

◆ getDistanceSq() [1/2]

unsafe double MR.ConstBox_Box3d.getDistanceSq ( in MR.Box3d b )

inline

returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method MR.Box3d.getDistanceSq.

◆ getDistanceSq() [2/2]

unsafe double MR.ConstBox_Box3d.getDistanceSq ( in MR.Vector3d pt )

inline

returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method MR.Box3d.getDistanceSq.

◆ getMaxBoxCorner()

static unsafe MR.Vector3b MR.ConstBox_Box3d.getMaxBoxCorner ( in MR.Vector3d n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.Box3d.getMaxBoxCorner.

◆ getMinBoxCorner()

static unsafe MR.Vector3b MR.ConstBox_Box3d.getMinBoxCorner ( in MR.Vector3d n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.Box3d.getMinBoxCorner.

◆ getProjection()

unsafe MR.Vector3d MR.ConstBox_Box3d.getProjection ( in MR.Vector3d pt )

inline

returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.Box3d.getProjection.

◆ insignificantlyExpanded()

unsafe MR.Box3d MR.ConstBox_Box3d.insignificantlyExpanded ( )

inline

decreases min and increases max to their closest representable value Generated from method MR.Box3d.insignificantlyExpanded.

◆ intersection()

unsafe MR.Box3d MR.ConstBox_Box3d.intersection ( in MR.Box3d b )

inline

computes intersection between this and other box Generated from method MR.Box3d.intersection.

◆ intersects()

unsafe bool MR.ConstBox_Box3d.intersects ( in MR.Box3d b )

inline

checks whether this box intersects or touches given box Generated from method MR.Box3d.intersects.

◆ operator ConstBox_Box3d()

static implicit MR.ConstBox_Box3d.operator ConstBox_Box3d ( Box3d other )

inlinestatic

Convert from a struct by copying it. Note that only ConstBox_Box3d has this conversion, Box_Box3d intentionally doesn't.

◆ operator!=()

static unsafe bool MR.ConstBox_Box3d.operator!=	(	MR.ConstBox_Box3d	_this,
		MR.ConstBox_Box3d	a )

inlinestatic

◆ operator==()

static unsafe bool MR.ConstBox_Box3d.operator==	(	MR.ConstBox_Box3d	_this,
		MR.ConstBox_Box3d	a )

inlinestatic

Generated from method MR.Box3d.operator==.

◆ size()

unsafe MR.Vector3d MR.ConstBox_Box3d.size ( )

inline

computes size of the box in all dimensions Generated from method MR.Box3d.size.

◆ valid()

unsafe bool MR.ConstBox_Box3d.valid ( )

inline

true if the box contains at least one point Generated from method MR.Box3d.valid.

◆ volume()

unsafe double MR.ConstBox_Box3d.volume ( )

inline

computes the volume of this box Generated from method MR.Box3d.volume.

Member Data Documentation

◆ __ref_storage_Elements

unsafe int* MR.ConstBox_Box3d.__ref_storage_Elements

staticprotected

Property Documentation

◆ Elements

unsafe int MR.ConstBox_Box3d.Elements

staticget

◆ max

ref readonly MR.Vector3d MR.ConstBox_Box3d.max

get

◆ min

ref readonly MR.Vector3d MR.ConstBox_Box3d.min

get

◆ this[int e]

unsafe ref readonly MR.Vector3d MR.ConstBox_Box3d.this[int e]

get

min/max access by 0/1 index Generated from method MR.Box3d.operator[].

The documentation for this class was generated from the following file:

MRBox.cs
