Box given by its min- and max- corners Generated from class MR.Box3f. This is the const reference to the struct. More...

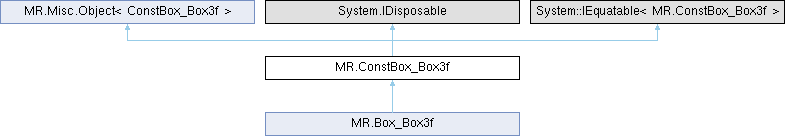

Inheritance diagram for MR.ConstBox_Box3f:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()

unsafe	ConstBox_Box3f (Box3f other)
	Make a copy of a struct. (Even though we initially pass `is_owning: false`, we then use the copy constructor to produce an owning instance.)

unsafe	ConstBox_Box3f (ConstBox_Box3f _other)
	Generated copy constructor.

unsafe	ConstBox_Box3f ()
	Constructs an empty (default-constructed) instance.

unsafe	ConstBox_Box3f (in MR.Vector3f min, in MR.Vector3f max)
	Generated from constructor `MR.Box3f.Box3f`.

unsafe	ConstBox_Box3f (MR.Const_NoInit _1)
	Generated from constructor `MR.Box3f.Box3f`.

unsafe bool	valid ()
	true if the box contains at least one point Generated from method `MR.Box3f.valid`.

unsafe MR.Vector3f	center ()
	computes center of the box Generated from method `MR.Box3f.center`.

unsafe MR.Vector3f	corner (in MR.Vector3b c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method `MR.Box3f.corner`.

unsafe MR.Vector3f	size ()
	computes size of the box in all dimensions Generated from method `MR.Box3f.size`.

unsafe float	diagonal ()
	computes length from min to max Generated from method `MR.Box3f.diagonal`.

unsafe float	volume ()
	computes the volume of this box Generated from method `MR.Box3f.volume`.

unsafe bool	contains (in MR.Vector3f pt)
	checks whether given point is inside (including the surface) of this box Generated from method `MR.Box3f.contains`.

unsafe bool	contains (in MR.Box3f otherbox)
	checks whether given box is fully inside (the surfaces may touch) of this box Generated from method `MR.Box3f.contains`.

unsafe MR.Vector3f	getBoxClosestPointTo (in MR.Vector3f pt)
	returns closest point in the box to given point Generated from method `MR.Box3f.getBoxClosestPointTo`.

unsafe bool	intersects (in MR.Box3f b)
	checks whether this box intersects or touches given box Generated from method `MR.Box3f.intersects`.

unsafe MR.Box3f	intersection (in MR.Box3f b)
	computes intersection between this and other box Generated from method `MR.Box3f.intersection`.

unsafe float	getDistanceSq (in MR.Box3f b)
	returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method `MR.Box3f.getDistanceSq`.

unsafe float	getDistanceSq (in MR.Vector3f pt)
	returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method `MR.Box3f.getDistanceSq`.

unsafe MR.Vector3f	getProjection (in MR.Vector3f pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method `MR.Box3f.getProjection`.

unsafe MR.Box3f	expanded (in MR.Vector3f expansion)
	decreases min and increased max on given value Generated from method `MR.Box3f.expanded`.

unsafe MR.Box3f	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method `MR.Box3f.insignificantlyExpanded`.

bool	Equals (MR.ConstBox_Box3f? a)

override bool	Equals (object? other)

Static Public Member Functions
static implicit	operator ConstBox_Box3f (Box3f other)
	Convert from a struct by copying it. Note that only `ConstBox_Box3f` has this conversion, `Box_Box3f` intentionally doesn't.

static unsafe MR.Box3f	fromMinAndSize (in MR.Vector3f min, in MR.Vector3f size)
	Generated from method `MR.Box3f.fromMinAndSize`.

static unsafe MR.Vector3b	getMinBoxCorner (in MR.Vector3f n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method `MR.Box3f.getMinBoxCorner`.

static unsafe MR.Vector3b	getMaxBoxCorner (in MR.Vector3f n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method `MR.Box3f.getMaxBoxCorner`.

static unsafe bool	operator== (MR.ConstBox_Box3f _this, MR.ConstBox_Box3f a)
	Generated from method `MR.Box3f.operator==`.

static unsafe bool	operator!= (MR.ConstBox_Box3f _this, MR.ConstBox_Box3f a)

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Static Protected Attributes
static unsafe int *	__ref_storage_Elements

Properties
ref readonly MR.Vector3f	min `[get]`

ref readonly MR.Vector3f	max `[get]`

static unsafe int	Elements `[get]`

unsafe ref readonly MR.Vector3f	this[int e] `[get]`
	min/max access by 0/1 index Generated from method `MR.Box3f.operator[]`.

Detailed Description

Box given by its min- and max- corners Generated from class MR.Box3f. This is the const reference to the struct.

Constructor & Destructor Documentation

◆ ConstBox_Box3f() [1/5]

unsafe MR.ConstBox_Box3f.ConstBox_Box3f ( Box3f other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

◆ ConstBox_Box3f() [2/5]

unsafe MR.ConstBox_Box3f.ConstBox_Box3f ( ConstBox_Box3f _other )

inline

Generated copy constructor.

◆ ConstBox_Box3f() [3/5]

unsafe MR.ConstBox_Box3f.ConstBox_Box3f ( )

inline

Constructs an empty (default-constructed) instance.

◆ ConstBox_Box3f() [4/5]

unsafe MR.ConstBox_Box3f.ConstBox_Box3f	(	in MR.Vector3f	min,
		in MR.Vector3f	max )

inline

Generated from constructor MR.Box3f.Box3f.

◆ ConstBox_Box3f() [5/5]

unsafe MR.ConstBox_Box3f.ConstBox_Box3f ( MR.Const_NoInit _1 )

inline

Generated from constructor MR.Box3f.Box3f.

Member Function Documentation

◆ center()

unsafe MR.Vector3f MR.ConstBox_Box3f.center ( )

inline

computes center of the box Generated from method MR.Box3f.center.

◆ contains() [1/2]

unsafe bool MR.ConstBox_Box3f.contains ( in MR.Box3f otherbox )

inline

checks whether given box is fully inside (the surfaces may touch) of this box Generated from method MR.Box3f.contains.

◆ contains() [2/2]

unsafe bool MR.ConstBox_Box3f.contains ( in MR.Vector3f pt )

inline

checks whether given point is inside (including the surface) of this box Generated from method MR.Box3f.contains.

◆ corner()

unsafe MR.Vector3f MR.ConstBox_Box3f.corner ( in MR.Vector3b c )

inline

returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.Box3f.corner.

◆ diagonal()

unsafe float MR.ConstBox_Box3f.diagonal ( )

inline

computes length from min to max Generated from method MR.Box3f.diagonal.

◆ Dispose() [1/2]

virtual void MR.ConstBox_Box3f.Dispose ( )

inlinevirtual

◆ Dispose() [2/2]

virtual unsafe void MR.ConstBox_Box3f.Dispose ( bool disposing )

inlineprotectedvirtual

◆ Equals() [1/2]

bool MR.ConstBox_Box3f.Equals ( MR.ConstBox_Box3f? a )

inline

◆ Equals() [2/2]

override bool MR.ConstBox_Box3f.Equals ( object? other )

inline

◆ expanded()

unsafe MR.Box3f MR.ConstBox_Box3f.expanded ( in MR.Vector3f expansion )

inline

decreases min and increased max on given value Generated from method MR.Box3f.expanded.

◆ fromMinAndSize()

static unsafe MR.Box3f MR.ConstBox_Box3f.fromMinAndSize	(	in MR.Vector3f	min,
		in MR.Vector3f	size )

inlinestatic

Generated from method MR.Box3f.fromMinAndSize.

◆ getBoxClosestPointTo()

unsafe MR.Vector3f MR.ConstBox_Box3f.getBoxClosestPointTo ( in MR.Vector3f pt )

inline

returns closest point in the box to given point Generated from method MR.Box3f.getBoxClosestPointTo.

◆ getDistanceSq() [1/2]

unsafe float MR.ConstBox_Box3f.getDistanceSq ( in MR.Box3f b )

inline

returns squared distance between this box and given one; returns zero if the boxes touch or intersect Generated from method MR.Box3f.getDistanceSq.

◆ getDistanceSq() [2/2]

unsafe float MR.ConstBox_Box3f.getDistanceSq ( in MR.Vector3f pt )

inline

returns squared distance between this box and given point; returns zero if the point is inside or on the boundary of the box Generated from method MR.Box3f.getDistanceSq.

◆ getMaxBoxCorner()

static unsafe MR.Vector3b MR.ConstBox_Box3f.getMaxBoxCorner ( in MR.Vector3f n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.Box3f.getMaxBoxCorner.

◆ getMinBoxCorner()

static unsafe MR.Vector3b MR.ConstBox_Box3f.getMinBoxCorner ( in MR.Vector3f n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.Box3f.getMinBoxCorner.

◆ getProjection()

unsafe MR.Vector3f MR.ConstBox_Box3f.getProjection ( in MR.Vector3f pt )

inline

returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.Box3f.getProjection.

◆ insignificantlyExpanded()

unsafe MR.Box3f MR.ConstBox_Box3f.insignificantlyExpanded ( )

inline

decreases min and increases max to their closest representable value Generated from method MR.Box3f.insignificantlyExpanded.

◆ intersection()

unsafe MR.Box3f MR.ConstBox_Box3f.intersection ( in MR.Box3f b )

inline

computes intersection between this and other box Generated from method MR.Box3f.intersection.

◆ intersects()

unsafe bool MR.ConstBox_Box3f.intersects ( in MR.Box3f b )

inline

checks whether this box intersects or touches given box Generated from method MR.Box3f.intersects.

◆ operator ConstBox_Box3f()

static implicit MR.ConstBox_Box3f.operator ConstBox_Box3f ( Box3f other )

inlinestatic

Convert from a struct by copying it. Note that only ConstBox_Box3f has this conversion, Box_Box3f intentionally doesn't.

◆ operator!=()

static unsafe bool MR.ConstBox_Box3f.operator!=	(	MR.ConstBox_Box3f	_this,
		MR.ConstBox_Box3f	a )

inlinestatic

◆ operator==()

static unsafe bool MR.ConstBox_Box3f.operator==	(	MR.ConstBox_Box3f	_this,
		MR.ConstBox_Box3f	a )

inlinestatic

Generated from method MR.Box3f.operator==.

◆ size()

unsafe MR.Vector3f MR.ConstBox_Box3f.size ( )

inline

computes size of the box in all dimensions Generated from method MR.Box3f.size.

◆ valid()

unsafe bool MR.ConstBox_Box3f.valid ( )

inline

true if the box contains at least one point Generated from method MR.Box3f.valid.

◆ volume()

unsafe float MR.ConstBox_Box3f.volume ( )

inline

computes the volume of this box Generated from method MR.Box3f.volume.

Member Data Documentation

◆ __ref_storage_Elements

unsafe int* MR.ConstBox_Box3f.__ref_storage_Elements

staticprotected

Property Documentation

◆ Elements

unsafe int MR.ConstBox_Box3f.Elements

staticget

◆ max

ref readonly MR.Vector3f MR.ConstBox_Box3f.max

get

◆ min

ref readonly MR.Vector3f MR.ConstBox_Box3f.min

get

◆ this[int e]

unsafe ref readonly MR.Vector3f MR.ConstBox_Box3f.this[int e]

get

min/max access by 0/1 index Generated from method MR.Box3f.operator[].

The documentation for this class was generated from the following file:

MRBox.cs
