MR.ConstBox_Matrix3i64 Class Reference

arbitrary 3x3 matrix Generated from class MR.Matrix3i64. This is the const reference to the struct. More...

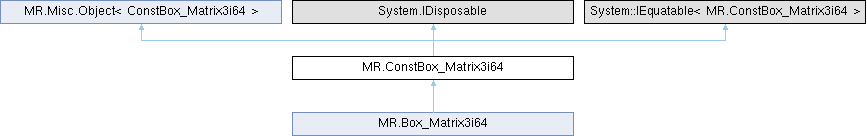

Inheritance diagram for MR.ConstBox_Matrix3i64:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	ConstBox_Matrix3i64 (Matrix3i64 other)
	Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)
unsafe	ConstBox_Matrix3i64 (ConstBox_Matrix3i64 _other)
	Generated copy constructor.
unsafe	ConstBox_Matrix3i64 ()
	Constructs an empty (default-constructed) instance.
unsafe	ConstBox_Matrix3i64 (in MR.Vector3i64 x, in MR.Vector3i64 y, in MR.Vector3i64 z)
	initializes matrix from its 3 rows Generated from constructor MR.Matrix3i64.Matrix3i64.
unsafe MR.Vector3i64	col (int i)
	column access Generated from method MR.Matrix3i64.col.
unsafe long	trace ()
	computes trace of the matrix Generated from method MR.Matrix3i64.trace.
unsafe long	normSq ()
	compute sum of squared matrix elements Generated from method MR.Matrix3i64.normSq.
unsafe double	norm ()
	Generated from method MR.Matrix3i64.norm.
unsafe long	det ()
	computes determinant of the matrix Generated from method MR.Matrix3i64.det.
unsafe MR.Matrix3i64	transposed ()
	computes transposed matrix Generated from method MR.Matrix3i64.transposed.
bool	Equals (MR.ConstBox_Matrix3i64? b)
override bool	Equals (object? other)

Static Public Member Functions
static implicit	operator ConstBox_Matrix3i64 (Matrix3i64 other)
	Convert from a struct by copying it. Note that only ConstBox_Matrix3i64 has this conversion, Box_Matrix3i64 intentionally doesn't.
static MR.Matrix3i64	zero ()
	Generated from method MR.Matrix3i64.zero.
static MR.Matrix3i64	identity ()
	Generated from method MR.Matrix3i64.identity.
static MR.Matrix3i64	scale (long s)
	returns a matrix that scales uniformly Generated from method MR.Matrix3i64.scale.
static MR.Matrix3i64	scale (long sx, long sy, long sz)
	returns a matrix that has its own scale along each axis Generated from method MR.Matrix3i64.scale.
static unsafe MR.Matrix3i64	scale (in MR.Vector3i64 s)
	Generated from method MR.Matrix3i64.scale.
static unsafe MR.Matrix3i64	fromRows (in MR.Vector3i64 x, in MR.Vector3i64 y, in MR.Vector3i64 z)
	constructs a matrix from its 3 rows Generated from method MR.Matrix3i64.fromRows.
static unsafe MR.Matrix3i64	fromColumns (in MR.Vector3i64 x, in MR.Vector3i64 y, in MR.Vector3i64 z)
	constructs a matrix from its 3 columns; use this method to get the matrix that transforms basis vectors ( plusX, plusY, plusZ ) into vectors ( x, y, z ) respectively Generated from method MR.Matrix3i64.fromColumns.
static unsafe bool	operator== (MR.ConstBox_Matrix3i64 a, MR.ConstBox_Matrix3i64 b)
	Generated from function MR.operator==.
static unsafe bool	operator!= (MR.ConstBox_Matrix3i64 a, MR.ConstBox_Matrix3i64 b)
static unsafe MR.Matrix3i64	operator+ (MR.ConstBox_Matrix3i64 a, in MR.Matrix3i64 b)
	Generated from function MR.operator+.
static unsafe MR.Matrix3i64	operator- (MR.ConstBox_Matrix3i64 a, in MR.Matrix3i64 b)
	Generated from function MR.operator-.
static unsafe MR.Matrix3i64	operator* (long a, MR.ConstBox_Matrix3i64 b)
	Generated from function MR.operator*.
static unsafe MR.Matrix3i64	operator* (MR.ConstBox_Matrix3i64 b, long a)
	Generated from function MR.operator*.
static unsafe MR.Matrix3i64	operator/ (ConstBox_Matrix3i64 b, long a)
	Generated from function MR.operator/.
static unsafe MR.Vector3i64	operator* (MR.ConstBox_Matrix3i64 a, in MR.Vector3i64 b)
	x = a * b Generated from function MR.operator*.
static unsafe MR.Matrix3i64	operator* (MR.ConstBox_Matrix3i64 a, in MR.Matrix3i64 b)
	product of two matrices Generated from function MR.operator*.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Properties
ref readonly MR.Vector3i64	x [get]
	rows, identity matrix by default
ref readonly MR.Vector3i64	y [get]
ref readonly MR.Vector3i64	z [get]
unsafe ref readonly MR.Vector3i64	this[int row] [get]
	row access Generated from method MR.Matrix3i64.operator[].

Detailed Description

arbitrary 3x3 matrix Generated from class MR.Matrix3i64. This is the const reference to the struct.

Constructor & Destructor Documentation

ConstBox_Matrix3i64() [1/4]

unsafe MR.ConstBox_Matrix3i64.ConstBox_Matrix3i64 ( Matrix3i64 other )

inline

Make a copy of a struct. (Even though we initially pass is_owning: false, we then use the copy constructor to produce an owning instance.)

ConstBox_Matrix3i64() [2/4]

unsafe MR.ConstBox_Matrix3i64.ConstBox_Matrix3i64 ( ConstBox_Matrix3i64 _other )

inline

Generated copy constructor.

ConstBox_Matrix3i64() [3/4]

unsafe MR.ConstBox_Matrix3i64.ConstBox_Matrix3i64 ( )

inline

Constructs an empty (default-constructed) instance.

ConstBox_Matrix3i64() [4/4]

unsafe MR.ConstBox_Matrix3i64.ConstBox_Matrix3i64 ( in MR.Vector3i64 x, in MR.Vector3i64 y, in MR.Vector3i64 z )

inline

initializes matrix from its 3 rows Generated from constructor MR.Matrix3i64.Matrix3i64.

Member Function Documentation

col()

unsafe MR.Vector3i64 MR.ConstBox_Matrix3i64.col ( int i )

inline

column access Generated from method MR.Matrix3i64.col.

det()

unsafe long MR.ConstBox_Matrix3i64.det ( )

inline

computes determinant of the matrix Generated from method MR.Matrix3i64.det.

Dispose() [1/2]

virtual void MR.ConstBox_Matrix3i64.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.ConstBox_Matrix3i64.Dispose ( bool disposing )

inlineprotectedvirtual

Equals() [1/2]

bool MR.ConstBox_Matrix3i64.Equals ( MR.ConstBox_Matrix3i64? b )

inline

Equals() [2/2]

override bool MR.ConstBox_Matrix3i64.Equals ( object? other )

inline

fromColumns()

static unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.fromColumns ( in MR.Vector3i64 x, in MR.Vector3i64 y, in MR.Vector3i64 z )

inlinestatic

constructs a matrix from its 3 columns; use this method to get the matrix that transforms basis vectors ( plusX, plusY, plusZ ) into vectors ( x, y, z ) respectively Generated from method MR.Matrix3i64.fromColumns.

fromRows()

static unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.fromRows ( in MR.Vector3i64 x, in MR.Vector3i64 y, in MR.Vector3i64 z )

inlinestatic

constructs a matrix from its 3 rows Generated from method MR.Matrix3i64.fromRows.

identity()

static MR.Matrix3i64 MR.ConstBox_Matrix3i64.identity ( )

inlinestatic

Generated from method MR.Matrix3i64.identity.

norm()

unsafe double MR.ConstBox_Matrix3i64.norm ( )

inline

Generated from method MR.Matrix3i64.norm.

normSq()

unsafe long MR.ConstBox_Matrix3i64.normSq ( )

inline

compute sum of squared matrix elements Generated from method MR.Matrix3i64.normSq.

operator ConstBox_Matrix3i64()

static implicit MR.ConstBox_Matrix3i64.operator ConstBox_Matrix3i64 ( Matrix3i64 other )

inlinestatic

Convert from a struct by copying it. Note that only ConstBox_Matrix3i64 has this conversion, Box_Matrix3i64 intentionally doesn't.

operator!=()

static unsafe bool MR.ConstBox_Matrix3i64.operator!= ( MR.ConstBox_Matrix3i64 a, MR.ConstBox_Matrix3i64 b )

inlinestatic

operator*() [1/4]

static unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.operator* ( long a, MR.ConstBox_Matrix3i64 b )

inlinestatic

Generated from function MR.operator*.

operator*() [2/4]

static unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.operator* ( MR.ConstBox_Matrix3i64 a, in MR.Matrix3i64 b )

inlinestatic

product of two matrices Generated from function MR.operator*.

operator*() [3/4]

static unsafe MR.Vector3i64 MR.ConstBox_Matrix3i64.operator* ( MR.ConstBox_Matrix3i64 a, in MR.Vector3i64 b )

inlinestatic

x = a * b Generated from function MR.operator*.

operator*() [4/4]

static unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.operator* ( MR.ConstBox_Matrix3i64 b, long a )

inlinestatic

Generated from function MR.operator*.

operator+()

static unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.operator+ ( MR.ConstBox_Matrix3i64 a, in MR.Matrix3i64 b )

inlinestatic

Generated from function MR.operator+.

operator-()

static unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.operator- ( MR.ConstBox_Matrix3i64 a, in MR.Matrix3i64 b )

inlinestatic

Generated from function MR.operator-.

operator/()

static unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.operator/ ( ConstBox_Matrix3i64 b, long a )

inlinestatic

Generated from function MR.operator/.

operator==()

static unsafe bool MR.ConstBox_Matrix3i64.operator== ( MR.ConstBox_Matrix3i64 a, MR.ConstBox_Matrix3i64 b )

inlinestatic

Generated from function MR.operator==.

scale() [1/3]

static unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.scale ( in MR.Vector3i64 s )

inlinestatic

Generated from method MR.Matrix3i64.scale.

scale() [2/3]

static MR.Matrix3i64 MR.ConstBox_Matrix3i64.scale ( long s )

inlinestatic

returns a matrix that scales uniformly Generated from method MR.Matrix3i64.scale.

scale() [3/3]

static MR.Matrix3i64 MR.ConstBox_Matrix3i64.scale ( long sx, long sy, long sz )

inlinestatic

returns a matrix that has its own scale along each axis Generated from method MR.Matrix3i64.scale.

trace()

unsafe long MR.ConstBox_Matrix3i64.trace ( )

inline

computes trace of the matrix Generated from method MR.Matrix3i64.trace.

transposed()

unsafe MR.Matrix3i64 MR.ConstBox_Matrix3i64.transposed ( )

inline

computes transposed matrix Generated from method MR.Matrix3i64.transposed.

zero()

static MR.Matrix3i64 MR.ConstBox_Matrix3i64.zero ( )

inlinestatic

Generated from method MR.Matrix3i64.zero.

Property Documentation

this[int row]

unsafe ref readonly MR.Vector3i64 MR.ConstBox_Matrix3i64.this[int row]

get

row access Generated from method MR.Matrix3i64.operator[].

x

ref readonly MR.Vector3i64 MR.ConstBox_Matrix3i64.x

get

rows, identity matrix by default

y

ref readonly MR.Vector3i64 MR.ConstBox_Matrix3i64.y

get

z

ref readonly MR.Vector3i64 MR.ConstBox_Matrix3i64.z

get

---

The documentation for this class was generated from the following file:

• MRMatrix3.cs
