MR.Const_AABBTreePoints.Node Class Reference

Generated from class MR.AABBTreePoints.Node. This is the non-const half of the class. More...

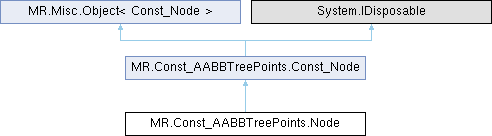

Inheritance diagram for MR.Const_AABBTreePoints.Node:

Public Member Functions
unsafe	Node ()
	Constructs an empty (default-constructed) instance.
unsafe	Node (MR.Box3f box, MR.NodeId l, MR.NodeId r)
	Constructs MR.AABBTreePoints.Node elementwise.
unsafe	Node (MR.AABBTreePoints.Const_Node _other)
	Generated from constructor MR::AABBTreePoints::Node::Node.
	Node (Node _other)
	Generated from constructor MR::AABBTreePoints::Node::Node.
unsafe MR.AABBTreePoints.Node	assign (MR.AABBTreePoints.Const_Node _other)
	Generated from method MR::AABBTreePoints::Node::operator=.
unsafe void	setLeafPointRange (int first, int last)
	sets [first,last) to this node (leaf) Generated from method MR::AABBTreePoints::Node::setLeafPointRange.
Public Member Functions inherited from MR.Const_AABBTreePoints.Const_Node
virtual void	Dispose ()
unsafe	Const_Node ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_Node (MR.Box3f box, MR.NodeId l, MR.NodeId r)
	Constructs MR.AABBTreePoints.Node elementwise.
unsafe	Const_Node (MR.AABBTreePoints.Const_Node _other)
	Generated from constructor MR::AABBTreePoints::Node::Node.
	Const_Node (Node _other)
	Generated from constructor MR::AABBTreePoints::Node::Node.
unsafe bool	leaf ()
	returns true if node represent real points, false if it has child nodes Generated from method MR::AABBTreePoints::Node::leaf.
unsafe MR.Std.Pair_Int_Int	getLeafPointRange ()
	returns [first,last) indices of leaf points Generated from method MR::AABBTreePoints::Node::getLeafPointRange.

Properties
new unsafe ref MR.Box3f	box [get]
	bounding box of whole subtree
new unsafe ref MR.NodeId	l [get]
	left child node for an inner node, or -(l+1) is the index of the first point in a leaf node
new unsafe ref MR.NodeId	r [get]
	right child node for an inner node, or -(r+1) is the index of the last point in a leaf node
Properties inherited from MR.Const_AABBTreePoints.Const_Node
unsafe ref readonly MR.Box3f	box [get]
	bounding box of whole subtree
unsafe ref readonly MR.NodeId	l [get]
	left child node for an inner node, or -(l+1) is the index of the first point in a leaf node
unsafe ref readonly MR.NodeId	r [get]
	right child node for an inner node, or -(r+1) is the index of the last point in a leaf node

Additional Inherited Members
Protected Member Functions inherited from MR.Const_AABBTreePoints.Const_Node
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_AABBTreePoints.Const_Node
unsafe MR.Box3f *	__ref_storage_box
unsafe MR.NodeId *	__ref_storage_l
unsafe MR.NodeId *	__ref_storage_r

Detailed Description

Generated from class MR.AABBTreePoints.Node. This is the non-const half of the class.

Constructor & Destructor Documentation

Node() [1/4]

unsafe MR.Const_AABBTreePoints.Node.Node ( )

inline

Constructs an empty (default-constructed) instance.

Node() [2/4]

unsafe MR.Const_AABBTreePoints.Node.Node ( MR.Box3f box, MR.NodeId l, MR.NodeId r )

inline

Constructs MR.AABBTreePoints.Node elementwise.

Node() [3/4]

unsafe MR.Const_AABBTreePoints.Node.Node ( MR.AABBTreePoints.Const_Node _other )

inline

Generated from constructor MR::AABBTreePoints::Node::Node.

Node() [4/4]

MR.Const_AABBTreePoints.Node.Node ( Node _other )

inline

Generated from constructor MR::AABBTreePoints::Node::Node.

Member Function Documentation

assign()

unsafe MR.AABBTreePoints.Node MR.Const_AABBTreePoints.Node.assign ( MR.AABBTreePoints.Const_Node _other )

inline

Generated from method MR::AABBTreePoints::Node::operator=.

setLeafPointRange()

unsafe void MR.Const_AABBTreePoints.Node.setLeafPointRange ( int first, int last )

inline

sets [first,last) to this node (leaf) Generated from method MR::AABBTreePoints::Node::setLeafPointRange.

Property Documentation

box

new unsafe ref MR.Box3f MR.Const_AABBTreePoints.Node.box

get

bounding box of whole subtree

l

new unsafe ref MR.NodeId MR.Const_AABBTreePoints.Node.l

get

left child node for an inner node, or -(l+1) is the index of the first point in a leaf node

r

new unsafe ref MR.NodeId MR.Const_AABBTreePoints.Node.r

get

right child node for an inner node, or -(r+1) is the index of the last point in a leaf node

---

The documentation for this class was generated from the following file:

• MRAABBTreePoints.cs
