MR.Const_InSphereTesterSoS Class Reference

the precise tester with simulation-of-simplicity resolution of "exactly on the sphere" ties, which reuses all the geometric machinery of InSphereTester<int> and adds only the vertex ids Generated from class MR.InSphereTesterSoS. Base classes: Direct: (non-virtual) MR::InSphereTester&lt;int&gt; Derived classes: Direct: (non-virtual) MR.FastInSphereTesterSoS This is the const half of the class. More...

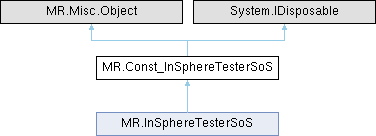

Inheritance diagram for MR.Const_InSphereTesterSoS:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	Const_InSphereTesterSoS ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_InSphereTesterSoS (MR.Const_InSphereTesterSoS _other)
	Generated from constructor MR.InSphereTesterSoS.InSphereTesterSoS.
	Const_InSphereTesterSoS (InSphereTesterSoS _other)
	Generated from constructor MR.InSphereTesterSoS.InSphereTesterSoS.
unsafe MR.InSphereResult	call (MR.Const_PreciseVertCoords d)
	returns the position of the point d.pt relative to the sphere, resolving "exactly on the sphere" ties into Inside or Outside by simulation-of-simplicity as described at the inSphere overload above, using the ids of d and of the points given in reset() (never returns OnSphere or NoSphere); shall be called only after reset() returned true, and all four ids must be distinct Generated from method MR::InSphereTesterSoS::operator().
unsafe bool	degenerateTriangle ()
	whether the last successful reset() got a degenerate triangle (two coincident points), where only the symbolically perturbed sphere exists; the exact sphere quantities of the base class are not valid then Generated from method MR.InSphereTesterSoS.degenerateTriangle.

Static Public Member Functions
static unsafe implicit	operator MR.Const_InSphereTester_Int (Const_InSphereTesterSoS self)

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Detailed Description

the precise tester with simulation-of-simplicity resolution of "exactly on the sphere" ties, which reuses all the geometric machinery of InSphereTester<int> and adds only the vertex ids Generated from class MR.InSphereTesterSoS. Base classes: Direct: (non-virtual) MR::InSphereTester&lt;int&gt; Derived classes: Direct: (non-virtual) MR.FastInSphereTesterSoS This is the const half of the class.

Constructor & Destructor Documentation

Const_InSphereTesterSoS() [1/3]

unsafe MR.Const_InSphereTesterSoS.Const_InSphereTesterSoS ( )

inline

Constructs an empty (default-constructed) instance.

Const_InSphereTesterSoS() [2/3]

unsafe MR.Const_InSphereTesterSoS.Const_InSphereTesterSoS ( MR.Const_InSphereTesterSoS _other )

inline

Generated from constructor MR.InSphereTesterSoS.InSphereTesterSoS.

Const_InSphereTesterSoS() [3/3]

MR.Const_InSphereTesterSoS.Const_InSphereTesterSoS ( InSphereTesterSoS _other )

inline

Generated from constructor MR.InSphereTesterSoS.InSphereTesterSoS.

Member Function Documentation

call()

unsafe MR.InSphereResult MR.Const_InSphereTesterSoS.call ( MR.Const_PreciseVertCoords d )

inline

returns the position of the point d.pt relative to the sphere, resolving "exactly on the sphere" ties into Inside or Outside by simulation-of-simplicity as described at the inSphere overload above, using the ids of d and of the points given in reset() (never returns OnSphere or NoSphere); shall be called only after reset() returned true, and all four ids must be distinct Generated from method MR::InSphereTesterSoS::operator().

degenerateTriangle()

unsafe bool MR.Const_InSphereTesterSoS.degenerateTriangle ( )

inline

whether the last successful reset() got a degenerate triangle (two coincident points), where only the symbolically perturbed sphere exists; the exact sphere quantities of the base class are not valid then Generated from method MR.InSphereTesterSoS.degenerateTriangle.

Dispose() [1/2]

virtual void MR.Const_InSphereTesterSoS.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.Const_InSphereTesterSoS.Dispose ( bool disposing )

inlineprotectedvirtual

operator MR.Const_InSphereTester_Int()

unsafe implicit MR.Const_InSphereTesterSoS.operator MR.Const_InSphereTester_Int ( Const_InSphereTesterSoS self )

inlinestatic

---

The documentation for this class was generated from the following file:

• MRInSphere.cs
