MR.Const_Line3d Class Reference

2- or 3-dimensional line: cross( x - p, d ) = 0 Generated from class MR.Line3d. This is the const half of the class. More...

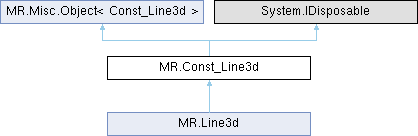

Inheritance diagram for MR.Const_Line3d:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	Const_Line3d ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_Line3d (MR.Const_Line3d _other)
	Generated from constructor MR.Line3d.Line3d.
	Const_Line3d (Line3d _other)
	Generated from constructor MR.Line3d.Line3d.
unsafe	Const_Line3d (in MR.Vector3d p, in MR.Vector3d d)
	Generated from constructor MR.Line3d.Line3d.
unsafe MR.Vector3d	call (double param)
	returns point on the line, where param=0 returns p and param=1 returns p+d Generated from method MR::Line3d::operator().
unsafe double	distanceSq (in MR.Vector3d x)
	returns squared distance from given point to this line Generated from method MR.Line3d.distanceSq.
unsafe MR.Line3d	normalized ()
	returns same line represented with unit d-vector Generated from method MR.Line3d.normalized.
unsafe MR.Vector3d	project (in MR.Vector3d x)
	finds the closest point on line Generated from method MR.Line3d.project.

Static Public Member Functions
static unsafe MR.Line3d	operator- (MR.Const_Line3d _this)
	returns same line represented with flipped direction of d-vector Generated from method MR::Line3d::operator-.
static unsafe MR.Const_Line3d	operator+ (MR.Const_Line3d _this)
	returns same representation Generated from method MR::Line3d::operator+.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Protected Attributes
unsafe MR.Vector3d *	__ref_storage_p
unsafe MR.Vector3d *	__ref_storage_d

Properties
unsafe ref readonly MR.Vector3d	p [get]
unsafe ref readonly MR.Vector3d	d [get]

Detailed Description

2- or 3-dimensional line: cross( x - p, d ) = 0 Generated from class MR.Line3d. This is the const half of the class.

Constructor & Destructor Documentation

Const_Line3d() [1/4]

unsafe MR.Const_Line3d.Const_Line3d ( )

inline

Constructs an empty (default-constructed) instance.

Const_Line3d() [2/4]

unsafe MR.Const_Line3d.Const_Line3d ( MR.Const_Line3d _other )

inline

Generated from constructor MR.Line3d.Line3d.

Const_Line3d() [3/4]

MR.Const_Line3d.Const_Line3d ( Line3d _other )

inline

Generated from constructor MR.Line3d.Line3d.

Const_Line3d() [4/4]

unsafe MR.Const_Line3d.Const_Line3d ( in MR.Vector3d p, in MR.Vector3d d )

inline

Generated from constructor MR.Line3d.Line3d.

Member Function Documentation

call()

unsafe MR.Vector3d MR.Const_Line3d.call ( double param )

inline

returns point on the line, where param=0 returns p and param=1 returns p+d Generated from method MR::Line3d::operator().

Dispose() [1/2]

virtual void MR.Const_Line3d.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.Const_Line3d.Dispose ( bool disposing )

inlineprotectedvirtual

distanceSq()

unsafe double MR.Const_Line3d.distanceSq ( in MR.Vector3d x )

inline

returns squared distance from given point to this line Generated from method MR.Line3d.distanceSq.

normalized()

unsafe MR.Line3d MR.Const_Line3d.normalized ( )

inline

returns same line represented with unit d-vector Generated from method MR.Line3d.normalized.

operator+()

unsafe MR.Const_Line3d MR.Const_Line3d.operator+ ( MR.Const_Line3d _this )

inlinestatic

returns same representation Generated from method MR::Line3d::operator+.

operator-()

unsafe MR.Line3d MR.Const_Line3d.operator- ( MR.Const_Line3d _this )

inlinestatic

returns same line represented with flipped direction of d-vector Generated from method MR::Line3d::operator-.

project()

unsafe MR.Vector3d MR.Const_Line3d.project ( in MR.Vector3d x )

inline

finds the closest point on line Generated from method MR.Line3d.project.

Member Data Documentation

__ref_storage_d

unsafe MR.Vector3d* MR.Const_Line3d.__ref_storage_d

protected

__ref_storage_p

unsafe MR.Vector3d* MR.Const_Line3d.__ref_storage_p

protected

Property Documentation

d

unsafe ref readonly MR.Vector3d MR.Const_Line3d.d

get

p

unsafe ref readonly MR.Vector3d MR.Const_Line3d.p

get

---

The documentation for this class was generated from the following file:

• MRLine.cs
