MR.Const_Matrix3_UnsignedChar Class Reference

arbitrary 3x3 matrix Generated from class MR::Matrix3<unsigned char>. This is the const half of the class. More...

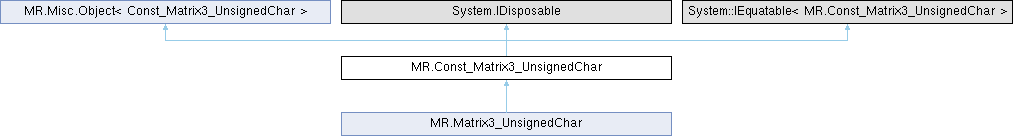

Inheritance diagram for MR.Const_Matrix3_UnsignedChar:

Classes
class	_InOptConst_QR
	This is used for optional parameters of class QR with default arguments. This is only used const parameters. For non-const ones we have _InOptMut_QR. Usage:
class	_InOptMut_QR
	This is used for optional parameters of class QR with default arguments. This is only used mutable parameters. For const ones we have _InOptConst_QR. Usage:
struct	_Underlying
class	Const_QR
	Generated from class MR::Matrix3<unsigned char>QR. This is the const half of the class. More...
class	QR
	Generated from class MR::Matrix3<unsigned char>QR. This is the non-const half of the class. More...

Public Member Functions
virtual void	Dispose ()
unsafe	Const_Matrix3_UnsignedChar ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_Matrix3_UnsignedChar (MR.Const_Matrix3_UnsignedChar _other)
	Generated from constructor MR::Matrix3<unsigned char>::Matrix3.
	Const_Matrix3_UnsignedChar (Matrix3_UnsignedChar _other)
	Generated from constructor MR::Matrix3<unsigned char>::Matrix3.
unsafe	Const_Matrix3_UnsignedChar (MR.Const_Vector3_UnsignedChar x, MR.Const_Vector3_UnsignedChar y, MR.Const_Vector3_UnsignedChar z)
	initializes matrix from its 3 rows Generated from constructor MR::Matrix3<unsigned char>::Matrix3.
unsafe MR.Vector3_UnsignedChar	col (int i)
	column access Generated from method MR::Matrix3<unsigned char>col.
unsafe byte	trace ()
	computes trace of the matrix Generated from method MR::Matrix3<unsigned char>trace.
unsafe byte	normSq ()
	compute sum of squared matrix elements Generated from method MR::Matrix3<unsigned char>normSq.
unsafe double	norm ()
	Generated from method MR::Matrix3<unsigned char>norm.
unsafe byte	det ()
	computes determinant of the matrix Generated from method MR::Matrix3<unsigned char>det.
unsafe MR.Matrix3_UnsignedChar	transposed ()
	computes transposed matrix Generated from method MR::Matrix3<unsigned char>transposed.
bool	Equals (MR.Const_Matrix3_UnsignedChar? b)
override bool	Equals (object? other)

Static Public Member Functions
static unsafe MR.Matrix3_UnsignedChar	zero ()
	Generated from method MR::Matrix3<unsigned char>zero.
static unsafe MR.Matrix3_UnsignedChar	identity ()
	Generated from method MR::Matrix3<unsigned char>identity.
static unsafe MR.Matrix3_UnsignedChar	scale (byte s)
	returns a matrix that scales uniformly Generated from method MR::Matrix3<unsigned char>scale.
static unsafe MR.Matrix3_UnsignedChar	scale (byte sx, byte sy, byte sz)
	returns a matrix that has its own scale along each axis Generated from method MR::Matrix3<unsigned char>scale.
static unsafe MR.Matrix3_UnsignedChar	scale (MR.Const_Vector3_UnsignedChar s)
	Generated from method MR::Matrix3<unsigned char>scale.
static unsafe MR.Matrix3_UnsignedChar	fromRows (MR.Const_Vector3_UnsignedChar x, MR.Const_Vector3_UnsignedChar y, MR.Const_Vector3_UnsignedChar z)
	constructs a matrix from its 3 rows Generated from method MR::Matrix3<unsigned char>fromRows.
static unsafe MR.Matrix3_UnsignedChar	fromColumns (MR.Const_Vector3_UnsignedChar x, MR.Const_Vector3_UnsignedChar y, MR.Const_Vector3_UnsignedChar z)
	constructs a matrix from its 3 columns; use this method to get the matrix that transforms basis vectors ( plusX, plusY, plusZ ) into vectors ( x, y, z ) respectively Generated from method MR::Matrix3<unsigned char>fromColumns.
static unsafe bool	operator== (MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b)
	Generated from function MR::operator==.
static unsafe bool	operator!= (MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b)
static unsafe MR.Matrix3i	operator+ (MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b)
	Generated from function MR::operator+.
static unsafe MR.Matrix3i	operator- (MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b)
	Generated from function MR::operator-.
static unsafe MR.Matrix3i	operator* (byte a, MR.Const_Matrix3_UnsignedChar b)
	Generated from function MR::operator*.
static unsafe MR.Matrix3i	operator* (MR.Const_Matrix3_UnsignedChar b, byte a)
	Generated from function MR::operator*.
static unsafe MR.Matrix3i	operator/ (Const_Matrix3_UnsignedChar b, byte a)
	Generated from function MR::operator/.
static unsafe MR.Vector3i	operator* (MR.Const_Matrix3_UnsignedChar a, MR.Const_Vector3_UnsignedChar b)
	x = a * b Generated from function MR::operator*.
static unsafe MR.Matrix3i	operator* (MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b)
	product of two matrices Generated from function MR::operator*.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Properties
unsafe MR.Const_Vector3_UnsignedChar	x [get, protected set]
	rows, identity matrix by default
unsafe MR.Const_Vector3_UnsignedChar	y [get, protected set]
unsafe MR.Const_Vector3_UnsignedChar	z [get, protected set]
unsafe MR.Const_Vector3_UnsignedChar	this[int row] [get]
	row access Generated from method MR::Matrix3<unsigned char>::operator[].

Detailed Description

arbitrary 3x3 matrix Generated from class MR::Matrix3<unsigned char>. This is the const half of the class.

Constructor & Destructor Documentation

Const_Matrix3_UnsignedChar() [1/4]

unsafe MR.Const_Matrix3_UnsignedChar.Const_Matrix3_UnsignedChar ( )

inline

Constructs an empty (default-constructed) instance.

Const_Matrix3_UnsignedChar() [2/4]

unsafe MR.Const_Matrix3_UnsignedChar.Const_Matrix3_UnsignedChar ( MR.Const_Matrix3_UnsignedChar _other )

inline

Generated from constructor MR::Matrix3<unsigned char>::Matrix3.

Const_Matrix3_UnsignedChar() [3/4]

MR.Const_Matrix3_UnsignedChar.Const_Matrix3_UnsignedChar ( Matrix3_UnsignedChar _other )

inline

Generated from constructor MR::Matrix3<unsigned char>::Matrix3.

Const_Matrix3_UnsignedChar() [4/4]

unsafe MR.Const_Matrix3_UnsignedChar.Const_Matrix3_UnsignedChar ( MR.Const_Vector3_UnsignedChar x, MR.Const_Vector3_UnsignedChar y, MR.Const_Vector3_UnsignedChar z )

inline

initializes matrix from its 3 rows Generated from constructor MR::Matrix3<unsigned char>::Matrix3.

Member Function Documentation

col()

unsafe MR.Vector3_UnsignedChar MR.Const_Matrix3_UnsignedChar.col ( int i )

inline

column access Generated from method MR::Matrix3<unsigned char>col.

det()

unsafe byte MR.Const_Matrix3_UnsignedChar.det ( )

inline

computes determinant of the matrix Generated from method MR::Matrix3<unsigned char>det.

Dispose() [1/2]

virtual void MR.Const_Matrix3_UnsignedChar.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.Const_Matrix3_UnsignedChar.Dispose ( bool disposing )

inlineprotectedvirtual

Equals() [1/2]

bool MR.Const_Matrix3_UnsignedChar.Equals ( MR.Const_Matrix3_UnsignedChar? b )

inline

Equals() [2/2]

override bool MR.Const_Matrix3_UnsignedChar.Equals ( object? other )

inline

fromColumns()

unsafe MR.Matrix3_UnsignedChar MR.Const_Matrix3_UnsignedChar.fromColumns ( MR.Const_Vector3_UnsignedChar x, MR.Const_Vector3_UnsignedChar y, MR.Const_Vector3_UnsignedChar z )

inlinestatic

constructs a matrix from its 3 columns; use this method to get the matrix that transforms basis vectors ( plusX, plusY, plusZ ) into vectors ( x, y, z ) respectively Generated from method MR::Matrix3<unsigned char>fromColumns.

fromRows()

unsafe MR.Matrix3_UnsignedChar MR.Const_Matrix3_UnsignedChar.fromRows ( MR.Const_Vector3_UnsignedChar x, MR.Const_Vector3_UnsignedChar y, MR.Const_Vector3_UnsignedChar z )

inlinestatic

constructs a matrix from its 3 rows Generated from method MR::Matrix3<unsigned char>fromRows.

identity()

unsafe MR.Matrix3_UnsignedChar MR.Const_Matrix3_UnsignedChar.identity ( )

inlinestatic

Generated from method MR::Matrix3<unsigned char>identity.

norm()

unsafe double MR.Const_Matrix3_UnsignedChar.norm ( )

inline

Generated from method MR::Matrix3<unsigned char>norm.

normSq()

unsafe byte MR.Const_Matrix3_UnsignedChar.normSq ( )

inline

compute sum of squared matrix elements Generated from method MR::Matrix3<unsigned char>normSq.

operator!=()

unsafe bool MR.Const_Matrix3_UnsignedChar.operator!= ( MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b )

inlinestatic

operator*() [1/4]

unsafe MR.Matrix3i MR.Const_Matrix3_UnsignedChar.operator* ( byte a, MR.Const_Matrix3_UnsignedChar b )

inlinestatic

Generated from function MR::operator*.

operator*() [2/4]

unsafe MR.Matrix3i MR.Const_Matrix3_UnsignedChar.operator* ( MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b )

inlinestatic

product of two matrices Generated from function MR::operator*.

operator*() [3/4]

unsafe MR.Vector3i MR.Const_Matrix3_UnsignedChar.operator* ( MR.Const_Matrix3_UnsignedChar a, MR.Const_Vector3_UnsignedChar b )

inlinestatic

x = a * b Generated from function MR::operator*.

operator*() [4/4]

unsafe MR.Matrix3i MR.Const_Matrix3_UnsignedChar.operator* ( MR.Const_Matrix3_UnsignedChar b, byte a )

inlinestatic

Generated from function MR::operator*.

operator+()

unsafe MR.Matrix3i MR.Const_Matrix3_UnsignedChar.operator+ ( MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b )

inlinestatic

Generated from function MR::operator+.

operator-()

unsafe MR.Matrix3i MR.Const_Matrix3_UnsignedChar.operator- ( MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b )

inlinestatic

Generated from function MR::operator-.

operator/()

unsafe MR.Matrix3i MR.Const_Matrix3_UnsignedChar.operator/ ( Const_Matrix3_UnsignedChar b, byte a )

inlinestatic

Generated from function MR::operator/.

operator==()

unsafe bool MR.Const_Matrix3_UnsignedChar.operator== ( MR.Const_Matrix3_UnsignedChar a, MR.Const_Matrix3_UnsignedChar b )

inlinestatic

Generated from function MR::operator==.

scale() [1/3]

unsafe MR.Matrix3_UnsignedChar MR.Const_Matrix3_UnsignedChar.scale ( byte s )

inlinestatic

returns a matrix that scales uniformly Generated from method MR::Matrix3<unsigned char>scale.

scale() [2/3]

unsafe MR.Matrix3_UnsignedChar MR.Const_Matrix3_UnsignedChar.scale ( byte sx, byte sy, byte sz )

inlinestatic

returns a matrix that has its own scale along each axis Generated from method MR::Matrix3<unsigned char>scale.

scale() [3/3]

unsafe MR.Matrix3_UnsignedChar MR.Const_Matrix3_UnsignedChar.scale ( MR.Const_Vector3_UnsignedChar s )

inlinestatic

Generated from method MR::Matrix3<unsigned char>scale.

trace()

unsafe byte MR.Const_Matrix3_UnsignedChar.trace ( )

inline

computes trace of the matrix Generated from method MR::Matrix3<unsigned char>trace.

transposed()

unsafe MR.Matrix3_UnsignedChar MR.Const_Matrix3_UnsignedChar.transposed ( )

inline

computes transposed matrix Generated from method MR::Matrix3<unsigned char>transposed.

zero()

unsafe MR.Matrix3_UnsignedChar MR.Const_Matrix3_UnsignedChar.zero ( )

inlinestatic

Generated from method MR::Matrix3<unsigned char>zero.

Property Documentation

this[int row]

unsafe MR.Const_Vector3_UnsignedChar MR.Const_Matrix3_UnsignedChar.this[int row]

get

row access Generated from method MR::Matrix3<unsigned char>::operator[].

x

unsafe MR.Const_Vector3_UnsignedChar MR.Const_Matrix3_UnsignedChar.x

getprotected set

rows, identity matrix by default

y

unsafe MR.Const_Vector3_UnsignedChar MR.Const_Matrix3_UnsignedChar.y

getprotected set

z

unsafe MR.Const_Vector3_UnsignedChar MR.Const_Matrix3_UnsignedChar.z

getprotected set

---

The documentation for this class was generated from the following file:

• MRMatrix3.cs
