polyline that stores points of type V Generated from class MR.Polyline3. This is the const half of the class. More...

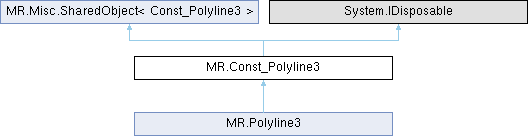

Inheritance diagram for MR.Const_Polyline3:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	Const_Polyline3 ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_Polyline3 (MR._ByValue_Polyline3 _other)
	Generated from constructor MR.Polyline3.Polyline3.
	Const_Polyline3 (Const_Polyline3 _other)
	Generated from constructor MR.Polyline3.Polyline3.
	Const_Polyline3 (Polyline3 _other)
	Generated from constructor MR.Polyline3.Polyline3.
unsafe	Const_Polyline3 (MR.Std.Const_Vector_MRVector3f contour)
	creates polyline from one contour (open or closed) Generated from constructor MR.Polyline3.Polyline3.
unsafe	Const_Polyline3 (MR.Std.Const_Vector_StdVectorMRVector3f contours)
	creates polyline from several contours (each can be open or closed) Generated from constructor MR.Polyline3.Polyline3.
unsafe	Const_Polyline3 (MR.Std.Const_Vector_MRVertId comp2firstVert, MR._ByValue_VertCoords ps)
	creates comp2firstVert.size()-1 not-closed polylines each pair (a,b) of indices in
unsafe MR.Vector3f	orgPnt (MR.EdgeId e)
	returns coordinates of the edge origin Generated from method MR.Polyline3.orgPnt.
unsafe MR.Vector3f	destPnt (MR.EdgeId e)
	returns coordinates of the edge destination Generated from method MR.Polyline3.destPnt.
unsafe MR.Vector3f	edgePoint (MR.EdgeId e, float f)
	returns a point on the edge: origin point for f=0 and destination point for f=1 Generated from method MR.Polyline3.edgePoint.
unsafe MR.Vector3f	edgePoint (MR.Const_EdgePoint ep)
	computes coordinates of point given as edge and relative position on it Generated from method MR.Polyline3.edgePoint.
unsafe MR.Vector3f	edgeCenter (MR.EdgeId e)
	returns edge's centroid Generated from method MR.Polyline3.edgeCenter.
unsafe MR.Vector3f	edgeVector (MR.EdgeId e)
	returns vector equal to edge destination point minus edge origin point Generated from method MR.Polyline3.edgeVector.
unsafe MR.LineSegm3f	edgeSegment (MR.EdgeId e)
	returns line segment of given edge Generated from method MR.Polyline3.edgeSegment.
unsafe MR.EdgePoint	toEdgePoint (MR.VertId v)
	converts vertex into edge-point representation Generated from method MR.Polyline3.toEdgePoint.
unsafe MR.EdgePoint	toEdgePoint (MR.EdgeId e, in MR.Vector3f p)
	converts edge and point's coordinates into edge-point representation Generated from method MR.Polyline3.toEdgePoint.
unsafe float	edgeLength (MR.EdgeId e)
	returns Euclidean length of the edge Generated from method MR.Polyline3.edgeLength.
unsafe float	edgeLengthSq (MR.EdgeId e)
	returns squared Euclidean length of the edge (faster to compute than length) Generated from method MR.Polyline3.edgeLengthSq.
unsafe MR.Vector3f	loopDirArea (MR.EdgeId e)
	calculates directed loop area if iterating in e direction .z = FLT_MAX if e does not represent a loop Generated from method MR.Polyline3.loopDirArea.
unsafe float	totalLength ()
	returns total length of the polyline Generated from method MR.Polyline3.totalLength.
unsafe float	averageEdgeLength ()
	returns average edge length in the polyline Generated from method MR.Polyline3.averageEdgeLength.
unsafe MR.Const_AABBTreePolyline3	getAABBTree ()
	returns cached aabb-tree for this polyline, creating it if it did not exist in a thread-safe manner Generated from method MR.Polyline3.getAABBTree.
unsafe MR.? Const_AABBTreePolyline3	getAABBTreeNotCreate ()
	returns cached aabb-tree for this polyline, but does not create it if it did not exist Generated from method MR.Polyline3.getAABBTreeNotCreate.
unsafe MR.Box3f	getBoundingBox ()
	returns the minimal bounding box containing all valid vertices (implemented via getAABBTree()) Generated from method MR.Polyline3.getBoundingBox.
unsafe MR.Box3f	computeBoundingBox (MR.AffineXf3f? toWorld=null)
	passes through all valid points and finds the minimal bounding box containing all of them
unsafe MR.Vector3f	findCenterFromPoints ()
	Generated from method MR.Polyline3.findCenterFromPoints.
unsafe MR.Std.Vector_StdVectorMRVector3f	contours (MR.Std.Vector_StdVectorMRVertId? vertMap=null)
	convert Polyline to simple contour structures with vector of points inside
unsafe ulong	heapBytes ()
	returns the amount of memory this object occupies on heap Generated from method MR.Polyline3.heapBytes.

Static Public Member Functions
static unsafe implicit	operator Const_Polyline3 (MR.Std.Const_Vector_MRVector3f contour)
	creates polyline from one contour (open or closed) Generated from constructor MR.Polyline3.Polyline3.
static unsafe implicit	operator Const_Polyline3 (MR.Std.Const_Vector_StdVectorMRVector3f contours)
	creates polyline from several contours (each can be open or closed) Generated from constructor MR.Polyline3.Polyline3.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Properties
unsafe MR.Const_PolylineTopology	topology `[get, protected set]`
unsafe MR.Const_VertCoords	points `[get, protected set]`

Detailed Description

polyline that stores points of type V Generated from class MR.Polyline3. This is the const half of the class.

Constructor & Destructor Documentation

◆ Const_Polyline3() [1/7]

unsafe MR.Const_Polyline3.Const_Polyline3 ( )

inline

Constructs an empty (default-constructed) instance.

◆ Const_Polyline3() [2/7]

unsafe MR.Const_Polyline3.Const_Polyline3 ( MR._ByValue_Polyline3 _other )

inline

Generated from constructor MR.Polyline3.Polyline3.

◆ Const_Polyline3() [3/7]

MR.Const_Polyline3.Const_Polyline3 ( Const_Polyline3 _other )

inline

Generated from constructor MR.Polyline3.Polyline3.

◆ Const_Polyline3() [4/7]

MR.Const_Polyline3.Const_Polyline3 ( Polyline3 _other )

inline

Generated from constructor MR.Polyline3.Polyline3.

◆ Const_Polyline3() [5/7]

unsafe MR.Const_Polyline3.Const_Polyline3 ( MR.Std.Const_Vector_MRVector3f contour )

inline

creates polyline from one contour (open or closed) Generated from constructor MR.Polyline3.Polyline3.

◆ Const_Polyline3() [6/7]

unsafe MR.Const_Polyline3.Const_Polyline3 ( MR.Std.Const_Vector_StdVectorMRVector3f contours )

inline

creates polyline from several contours (each can be open or closed) Generated from constructor MR.Polyline3.Polyline3.

◆ Const_Polyline3() [7/7]

unsafe MR.Const_Polyline3.Const_Polyline3	(	MR.Std.Const_Vector_MRVertId	comp2firstVert,
		MR._ByValue_VertCoords	ps )

inline

creates comp2firstVert.size()-1 not-closed polylines each pair (a,b) of indices in

Parameters

comp2firstVert	defines vertex range of a polyline [a,b)
ps	point coordinates Generated from constructor MR.Polyline3.Polyline3.

Member Function Documentation

◆ averageEdgeLength()

unsafe float MR.Const_Polyline3.averageEdgeLength ( )

inline

returns average edge length in the polyline Generated from method MR.Polyline3.averageEdgeLength.

◆ computeBoundingBox()

unsafe MR.Box3f MR.Const_Polyline3.computeBoundingBox ( MR.AffineXf3f? toWorld = null )

inline

passes through all valid points and finds the minimal bounding box containing all of them

if toWorld transformation is given then returns minimal bounding box in world space Generated from method MR.Polyline3.computeBoundingBox.

◆ contours()

unsafe MR.Std.Vector_StdVectorMRVector3f MR.Const_Polyline3.contours ( MR.Std.Vector_StdVectorMRVertId? vertMap = null )

inline

convert Polyline to simple contour structures with vector of points inside

if all even edges are consistently oriented, then the output contours will be oriented the same

Parameters

vertMap optional output map for for each contour point to corresponding VertId Generated from method MR.Polyline3.contours.

◆ destPnt()

unsafe MR.Vector3f MR.Const_Polyline3.destPnt ( MR.EdgeId e )

inline

returns coordinates of the edge destination Generated from method MR.Polyline3.destPnt.

◆ Dispose() [1/2]

virtual void MR.Const_Polyline3.Dispose ( )

inlinevirtual

◆ Dispose() [2/2]

virtual unsafe void MR.Const_Polyline3.Dispose ( bool disposing )

inlineprotectedvirtual

◆ edgeCenter()

unsafe MR.Vector3f MR.Const_Polyline3.edgeCenter ( MR.EdgeId e )

inline

returns edge's centroid Generated from method MR.Polyline3.edgeCenter.

◆ edgeLength()

unsafe float MR.Const_Polyline3.edgeLength ( MR.EdgeId e )

inline

returns Euclidean length of the edge Generated from method MR.Polyline3.edgeLength.

◆ edgeLengthSq()

unsafe float MR.Const_Polyline3.edgeLengthSq ( MR.EdgeId e )

inline

returns squared Euclidean length of the edge (faster to compute than length) Generated from method MR.Polyline3.edgeLengthSq.

◆ edgePoint() [1/2]

unsafe MR.Vector3f MR.Const_Polyline3.edgePoint ( MR.Const_EdgePoint ep )

inline

computes coordinates of point given as edge and relative position on it Generated from method MR.Polyline3.edgePoint.

◆ edgePoint() [2/2]

unsafe MR.Vector3f MR.Const_Polyline3.edgePoint	(	MR.EdgeId	e,
		float	f )

inline

returns a point on the edge: origin point for f=0 and destination point for f=1 Generated from method MR.Polyline3.edgePoint.

◆ edgeSegment()

unsafe MR.LineSegm3f MR.Const_Polyline3.edgeSegment ( MR.EdgeId e )

inline

returns line segment of given edge Generated from method MR.Polyline3.edgeSegment.

◆ edgeVector()

unsafe MR.Vector3f MR.Const_Polyline3.edgeVector ( MR.EdgeId e )

inline

returns vector equal to edge destination point minus edge origin point Generated from method MR.Polyline3.edgeVector.

◆ findCenterFromPoints()

unsafe MR.Vector3f MR.Const_Polyline3.findCenterFromPoints ( )

inline

Generated from method MR.Polyline3.findCenterFromPoints.

◆ getAABBTree()

unsafe MR.Const_AABBTreePolyline3 MR.Const_Polyline3.getAABBTree ( )

inline

returns cached aabb-tree for this polyline, creating it if it did not exist in a thread-safe manner Generated from method MR.Polyline3.getAABBTree.

◆ getAABBTreeNotCreate()

unsafe MR.? Const_AABBTreePolyline3 MR.Const_Polyline3.getAABBTreeNotCreate ( )

inline

returns cached aabb-tree for this polyline, but does not create it if it did not exist Generated from method MR.Polyline3.getAABBTreeNotCreate.

◆ getBoundingBox()

unsafe MR.Box3f MR.Const_Polyline3.getBoundingBox ( )

inline

returns the minimal bounding box containing all valid vertices (implemented via getAABBTree()) Generated from method MR.Polyline3.getBoundingBox.

◆ heapBytes()

unsafe ulong MR.Const_Polyline3.heapBytes ( )

inline

returns the amount of memory this object occupies on heap Generated from method MR.Polyline3.heapBytes.

◆ loopDirArea()

unsafe MR.Vector3f MR.Const_Polyline3.loopDirArea ( MR.EdgeId e )

inline

calculates directed loop area if iterating in e direction .z = FLT_MAX if e does not represent a loop Generated from method MR.Polyline3.loopDirArea.

◆ operator Const_Polyline3() [1/2]

unsafe implicit MR.Const_Polyline3.operator Const_Polyline3 ( MR.Std.Const_Vector_MRVector3f contour )

inlinestatic

creates polyline from one contour (open or closed) Generated from constructor MR.Polyline3.Polyline3.

◆ operator Const_Polyline3() [2/2]

unsafe implicit MR.Const_Polyline3.operator Const_Polyline3 ( MR.Std.Const_Vector_StdVectorMRVector3f contours )

inlinestatic

creates polyline from several contours (each can be open or closed) Generated from constructor MR.Polyline3.Polyline3.

◆ orgPnt()

unsafe MR.Vector3f MR.Const_Polyline3.orgPnt ( MR.EdgeId e )

inline

returns coordinates of the edge origin Generated from method MR.Polyline3.orgPnt.

◆ toEdgePoint() [1/2]

unsafe MR.EdgePoint MR.Const_Polyline3.toEdgePoint	(	MR.EdgeId	e,
		in MR.Vector3f	p )

inline

converts edge and point's coordinates into edge-point representation Generated from method MR.Polyline3.toEdgePoint.

◆ toEdgePoint() [2/2]

unsafe MR.EdgePoint MR.Const_Polyline3.toEdgePoint ( MR.VertId v )

inline

converts vertex into edge-point representation Generated from method MR.Polyline3.toEdgePoint.

◆ totalLength()

unsafe float MR.Const_Polyline3.totalLength ( )

inline

returns total length of the polyline Generated from method MR.Polyline3.totalLength.

Property Documentation

◆ points

unsafe MR.Const_VertCoords MR.Const_Polyline3.points

getprotected set

◆ topology

unsafe MR.Const_PolylineTopology MR.Const_Polyline3.topology

getprotected set

The documentation for this class was generated from the following file:

MRPolyline.cs
