MR.Const_PolylineProjectionResult2 Class Reference

Generated from class MR.PolylineProjectionResult2. This is the const half of the class. More...

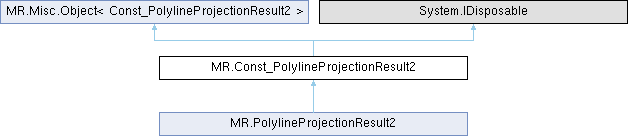

Inheritance diagram for MR.Const_PolylineProjectionResult2:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	Const_PolylineProjectionResult2 ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_PolylineProjectionResult2 (MR.UndirectedEdgeId line, MR.Vector2f point, float distSq)
	Constructs MR.PolylineProjectionResult2 elementwise.
unsafe	Const_PolylineProjectionResult2 (MR.Const_PolylineProjectionResult2 _other)
	Generated from constructor MR.PolylineProjectionResult2.PolylineProjectionResult2.
	Const_PolylineProjectionResult2 (PolylineProjectionResult2 _other)
	Generated from constructor MR.PolylineProjectionResult2.PolylineProjectionResult2.
unsafe bool	valid ()
	check for validity, otherwise the projection was not found Generated from method MR.PolylineProjectionResult2.valid.

Static Public Member Functions
static unsafe	operator bool (MR.Const_PolylineProjectionResult2 _this)
	Generated from conversion operator MR::PolylineProjectionResult2::operator bool.

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Protected Attributes
unsafe MR.UndirectedEdgeId *	__ref_storage_line
unsafe MR.Vector2f *	__ref_storage_point
unsafe float *	__ref_storage_distSq

Properties
unsafe ref readonly MR.UndirectedEdgeId	line [get]
	polyline's edge containing the closest point
unsafe ref readonly MR.Vector2f	point [get]
	closest point on polyline, transformed by xf if it is given
unsafe float	distSq [get]
	squared distance from pt to proj

Detailed Description

Generated from class MR.PolylineProjectionResult2. This is the const half of the class.

Constructor & Destructor Documentation

Const_PolylineProjectionResult2() [1/4]

unsafe MR.Const_PolylineProjectionResult2.Const_PolylineProjectionResult2 ( )

inline

Constructs an empty (default-constructed) instance.

Const_PolylineProjectionResult2() [2/4]

unsafe MR.Const_PolylineProjectionResult2.Const_PolylineProjectionResult2 ( MR.UndirectedEdgeId line, MR.Vector2f point, float distSq )

inline

Constructs MR.PolylineProjectionResult2 elementwise.

Const_PolylineProjectionResult2() [3/4]

unsafe MR.Const_PolylineProjectionResult2.Const_PolylineProjectionResult2 ( MR.Const_PolylineProjectionResult2 _other )

inline

Generated from constructor MR.PolylineProjectionResult2.PolylineProjectionResult2.

Const_PolylineProjectionResult2() [4/4]

MR.Const_PolylineProjectionResult2.Const_PolylineProjectionResult2 ( PolylineProjectionResult2 _other )

inline

Generated from constructor MR.PolylineProjectionResult2.PolylineProjectionResult2.

Member Function Documentation

Dispose() [1/2]

virtual void MR.Const_PolylineProjectionResult2.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.Const_PolylineProjectionResult2.Dispose ( bool disposing )

inlineprotectedvirtual

operator bool()

unsafe MR.Const_PolylineProjectionResult2.operator bool ( MR.Const_PolylineProjectionResult2 _this )

inlineexplicitstatic

Generated from conversion operator MR::PolylineProjectionResult2::operator bool.

valid()

unsafe bool MR.Const_PolylineProjectionResult2.valid ( )

inline

check for validity, otherwise the projection was not found Generated from method MR.PolylineProjectionResult2.valid.

Member Data Documentation

__ref_storage_distSq

unsafe float* MR.Const_PolylineProjectionResult2.__ref_storage_distSq

protected

__ref_storage_line

unsafe MR.UndirectedEdgeId* MR.Const_PolylineProjectionResult2.__ref_storage_line

protected

__ref_storage_point

unsafe MR.Vector2f* MR.Const_PolylineProjectionResult2.__ref_storage_point

protected

Property Documentation

distSq

unsafe float MR.Const_PolylineProjectionResult2.distSq

get

squared distance from pt to proj

line

unsafe ref readonly MR.UndirectedEdgeId MR.Const_PolylineProjectionResult2.line

get

polyline's edge containing the closest point

point

unsafe ref readonly MR.Vector2f MR.Const_PolylineProjectionResult2.point

get

closest point on polyline, transformed by xf if it is given

---

The documentation for this class was generated from the following file:

• MRPolylineProject.cs
