MR.Const_SimpleVolumeMinMax Class Reference

represents a box in 3D space subdivided on voxels stored in T; and stores minimum and maximum values among all valid voxels Generated from class MR.SimpleVolumeMinMax. Base classes: Direct: (non-virtual) MR.SimpleVolume MR.Box1f This is the const half of the class. More...

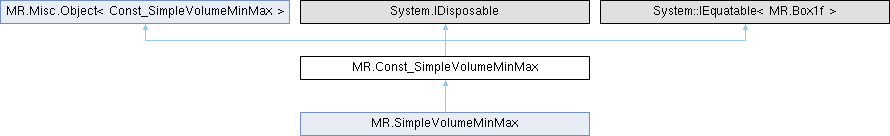

Inheritance diagram for MR.Const_SimpleVolumeMinMax:

Classes
struct	_Underlying

Public Member Functions
virtual void	Dispose ()
unsafe	Const_SimpleVolumeMinMax ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_SimpleVolumeMinMax (MR._ByValue_SimpleVolumeMinMax _other)
	Generated from constructor MR.SimpleVolumeMinMax.SimpleVolumeMinMax.
	Const_SimpleVolumeMinMax (Const_SimpleVolumeMinMax _other)
	Generated from constructor MR.SimpleVolumeMinMax.SimpleVolumeMinMax.
	Const_SimpleVolumeMinMax (SimpleVolumeMinMax _other)
	Generated from constructor MR.SimpleVolumeMinMax.SimpleVolumeMinMax.
unsafe ulong	heapBytes ()
	Generated from method MR.SimpleVolumeMinMax.heapBytes.
unsafe bool	valid ()
	true if the box contains at least one point Generated from method MR.SimpleVolumeMinMax.valid.
unsafe float	center ()
	computes center of the box Generated from method MR.SimpleVolumeMinMax.center.
unsafe float	corner (bool c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.SimpleVolumeMinMax.corner.
unsafe float	size ()
	computes size of the box in all dimensions Generated from method MR.SimpleVolumeMinMax.size.
unsafe float	diagonal ()
	computes length from min to max Generated from method MR.SimpleVolumeMinMax.diagonal.
unsafe float	volume ()
	computes the volume of this box Generated from method MR.SimpleVolumeMinMax.volume.
unsafe float	getBoxClosestPointTo (float pt)
	returns closest point in the box to given point Generated from method MR.SimpleVolumeMinMax.getBoxClosestPointTo.
unsafe bool	intersects (in MR.Box1f b)
	checks whether this box intersects or touches given box Generated from method MR.SimpleVolumeMinMax.intersects.
unsafe MR.Box1f	intersection (in MR.Box1f b)
	computes intersection between this and other box Generated from method MR.SimpleVolumeMinMax.intersection.
unsafe float	getProjection (float pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.SimpleVolumeMinMax.getProjection.
unsafe MR.Box1f	expanded (float expansion)
	decreases min and increased max on given value Generated from method MR.SimpleVolumeMinMax.expanded.
unsafe MR.Box1f	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method MR.SimpleVolumeMinMax.insignificantlyExpanded.
bool	Equals (MR.Box1f a)
override bool	Equals (object? other)

Static Public Member Functions
static unsafe implicit	operator MR.Const_SimpleVolume (Const_SimpleVolumeMinMax self)
static unsafe implicit	operator MR.ConstBox_Box1f (Const_SimpleVolumeMinMax self)
static unsafe MR.Box1f	fromMinAndSize (float min, float size)
	Generated from method MR.SimpleVolumeMinMax.fromMinAndSize.
static unsafe bool	getMinBoxCorner (float n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.SimpleVolumeMinMax.getMinBoxCorner.
static unsafe bool	getMaxBoxCorner (float n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.SimpleVolumeMinMax.getMaxBoxCorner.
static unsafe bool	operator== (MR.Const_SimpleVolumeMinMax _this, in MR.Box1f a)
	Generated from method MR::SimpleVolumeMinMax::operator==.
static unsafe bool	operator!= (MR.Const_SimpleVolumeMinMax _this, in MR.Box1f a)

Protected Member Functions
virtual unsafe void	Dispose (bool disposing)

Protected Attributes
unsafe MR.Vector3i *	__ref_storage_dims
unsafe MR.Vector3f *	__ref_storage_voxelSize
unsafe float *	__ref_storage_min
unsafe float *	__ref_storage_max

Static Protected Attributes
static unsafe int *	__ref_storage_Elements

Properties
unsafe MR.Const_Vector_Float_MRVoxelId	data [get, protected set]
unsafe ref readonly MR.Vector3i	dims [get]
unsafe ref readonly MR.Vector3f	voxelSize [get]
static unsafe int	Elements [get]
unsafe float	min [get]
unsafe float	max [get]

Detailed Description

represents a box in 3D space subdivided on voxels stored in T; and stores minimum and maximum values among all valid voxels Generated from class MR.SimpleVolumeMinMax. Base classes: Direct: (non-virtual) MR.SimpleVolume MR.Box1f This is the const half of the class.

Constructor & Destructor Documentation

Const_SimpleVolumeMinMax() [1/4]

unsafe MR.Const_SimpleVolumeMinMax.Const_SimpleVolumeMinMax ( )

inline

Constructs an empty (default-constructed) instance.

Const_SimpleVolumeMinMax() [2/4]

unsafe MR.Const_SimpleVolumeMinMax.Const_SimpleVolumeMinMax ( MR._ByValue_SimpleVolumeMinMax _other )

inline

Generated from constructor MR.SimpleVolumeMinMax.SimpleVolumeMinMax.

Const_SimpleVolumeMinMax() [3/4]

MR.Const_SimpleVolumeMinMax.Const_SimpleVolumeMinMax ( Const_SimpleVolumeMinMax _other )

inline

Generated from constructor MR.SimpleVolumeMinMax.SimpleVolumeMinMax.

Const_SimpleVolumeMinMax() [4/4]

MR.Const_SimpleVolumeMinMax.Const_SimpleVolumeMinMax ( SimpleVolumeMinMax _other )

inline

Generated from constructor MR.SimpleVolumeMinMax.SimpleVolumeMinMax.

Member Function Documentation

center()

unsafe float MR.Const_SimpleVolumeMinMax.center ( )

inline

computes center of the box Generated from method MR.SimpleVolumeMinMax.center.

corner()

unsafe float MR.Const_SimpleVolumeMinMax.corner ( bool c )

inline

returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.SimpleVolumeMinMax.corner.

diagonal()

unsafe float MR.Const_SimpleVolumeMinMax.diagonal ( )

inline

computes length from min to max Generated from method MR.SimpleVolumeMinMax.diagonal.

Dispose() [1/2]

virtual void MR.Const_SimpleVolumeMinMax.Dispose ( )

inlinevirtual

Dispose() [2/2]

virtual unsafe void MR.Const_SimpleVolumeMinMax.Dispose ( bool disposing )

inlineprotectedvirtual

Equals() [1/2]

bool MR.Const_SimpleVolumeMinMax.Equals ( MR.Box1f a )

inline

Equals() [2/2]

override bool MR.Const_SimpleVolumeMinMax.Equals ( object? other )

inline

expanded()

unsafe MR.Box1f MR.Const_SimpleVolumeMinMax.expanded ( float expansion )

inline

decreases min and increased max on given value Generated from method MR.SimpleVolumeMinMax.expanded.

fromMinAndSize()

unsafe MR.Box1f MR.Const_SimpleVolumeMinMax.fromMinAndSize ( float min, float size )

inlinestatic

Generated from method MR.SimpleVolumeMinMax.fromMinAndSize.

getBoxClosestPointTo()

unsafe float MR.Const_SimpleVolumeMinMax.getBoxClosestPointTo ( float pt )

inline

returns closest point in the box to given point Generated from method MR.SimpleVolumeMinMax.getBoxClosestPointTo.

getMaxBoxCorner()

unsafe bool MR.Const_SimpleVolumeMinMax.getMaxBoxCorner ( float n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.SimpleVolumeMinMax.getMaxBoxCorner.

getMinBoxCorner()

unsafe bool MR.Const_SimpleVolumeMinMax.getMinBoxCorner ( float n )

inlinestatic

considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.SimpleVolumeMinMax.getMinBoxCorner.

getProjection()

unsafe float MR.Const_SimpleVolumeMinMax.getProjection ( float pt )

inline

returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.SimpleVolumeMinMax.getProjection.

heapBytes()

unsafe ulong MR.Const_SimpleVolumeMinMax.heapBytes ( )

inline

Generated from method MR.SimpleVolumeMinMax.heapBytes.

insignificantlyExpanded()

unsafe MR.Box1f MR.Const_SimpleVolumeMinMax.insignificantlyExpanded ( )

inline

decreases min and increases max to their closest representable value Generated from method MR.SimpleVolumeMinMax.insignificantlyExpanded.

intersection()

unsafe MR.Box1f MR.Const_SimpleVolumeMinMax.intersection ( in MR.Box1f b )

inline

computes intersection between this and other box Generated from method MR.SimpleVolumeMinMax.intersection.

intersects()

unsafe bool MR.Const_SimpleVolumeMinMax.intersects ( in MR.Box1f b )

inline

checks whether this box intersects or touches given box Generated from method MR.SimpleVolumeMinMax.intersects.

operator MR.Const_SimpleVolume()

unsafe implicit MR.Const_SimpleVolumeMinMax.operator MR.Const_SimpleVolume ( Const_SimpleVolumeMinMax self )

inlinestatic

operator MR.ConstBox_Box1f()

unsafe implicit MR.Const_SimpleVolumeMinMax.operator MR.ConstBox_Box1f ( Const_SimpleVolumeMinMax self )

inlinestatic

operator!=()

unsafe bool MR.Const_SimpleVolumeMinMax.operator!= ( MR.Const_SimpleVolumeMinMax _this, in MR.Box1f a )

inlinestatic

operator==()

unsafe bool MR.Const_SimpleVolumeMinMax.operator== ( MR.Const_SimpleVolumeMinMax _this, in MR.Box1f a )

inlinestatic

Generated from method MR::SimpleVolumeMinMax::operator==.

size()

unsafe float MR.Const_SimpleVolumeMinMax.size ( )

inline

computes size of the box in all dimensions Generated from method MR.SimpleVolumeMinMax.size.

valid()

unsafe bool MR.Const_SimpleVolumeMinMax.valid ( )

inline

true if the box contains at least one point Generated from method MR.SimpleVolumeMinMax.valid.

volume()

unsafe float MR.Const_SimpleVolumeMinMax.volume ( )

inline

computes the volume of this box Generated from method MR.SimpleVolumeMinMax.volume.

Member Data Documentation

__ref_storage_dims

unsafe MR.Vector3i* MR.Const_SimpleVolumeMinMax.__ref_storage_dims

protected

__ref_storage_Elements

unsafe int* MR.Const_SimpleVolumeMinMax.__ref_storage_Elements

staticprotected

__ref_storage_max

unsafe float* MR.Const_SimpleVolumeMinMax.__ref_storage_max

protected

__ref_storage_min

unsafe float* MR.Const_SimpleVolumeMinMax.__ref_storage_min

protected

__ref_storage_voxelSize

unsafe MR.Vector3f* MR.Const_SimpleVolumeMinMax.__ref_storage_voxelSize

protected

Property Documentation

data

unsafe MR.Const_Vector_Float_MRVoxelId MR.Const_SimpleVolumeMinMax.data

getprotected set

dims

unsafe ref readonly MR.Vector3i MR.Const_SimpleVolumeMinMax.dims

get

Elements

unsafe int MR.Const_SimpleVolumeMinMax.Elements

staticget

max

unsafe float MR.Const_SimpleVolumeMinMax.max

get

min

unsafe float MR.Const_SimpleVolumeMinMax.min

get

voxelSize

unsafe ref readonly MR.Vector3f MR.Const_SimpleVolumeMinMax.voxelSize

get

---

The documentation for this class was generated from the following file:

• MRVoxelsVolume.cs
