encodes a point inside a triangle using barycentric coordinates More...

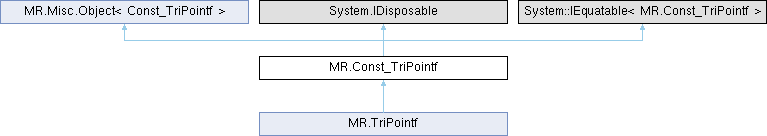

Inheritance diagram for MR.Const_TriPointf:

Classes

struct  _Underlying

Public Member Functions

virtual void Dispose ()
unsafe Const_TriPointf ()
 Constructs an empty (default-constructed) instance.
unsafe Const_TriPointf (MR.Const_TriPointf _other)
 Generated from constructor MR.TriPointf.TriPointf.
 Const_TriPointf (TriPointf _other)
 Generated from constructor MR.TriPointf.TriPointf.
unsafe Const_TriPointf (MR.Const_NoInit _1)
 Generated from constructor MR.TriPointf.TriPointf.
unsafe Const_TriPointf (float a, float b)
 Generated from constructor MR.TriPointf.TriPointf.
unsafe Const_TriPointf (in MR.Vector3f p, in MR.Vector3f v0, in MR.Vector3f v1, in MR.Vector3f v2, int? edge=null)
 given a point coordinates and triangle (v0,v1,v2) computes barycentric coordinates of the point; if the point is known to be on an edge, numbered as in onEdge(), then pass it to place the point exactly there Generated from constructor MR.TriPointf.TriPointf. Parameter edge defaults to -1.
unsafe Const_TriPointf (in MR.Vector3f p, in MR.Vector3f v1, in MR.Vector3f v2, int? edge=null)
 given a point coordinates and triangle (0,v1,v2) computes barycentric coordinates of the point; if the point is known to be on an edge, numbered as in onEdge(), then pass it to place the point exactly there Generated from constructor MR.TriPointf.TriPointf. Parameter edge defaults to -1.
unsafe MR.TriPointf lnext ()
 represents the same point relative to next edge in the same triangle Generated from method MR.TriPointf.lnext.
unsafe int inVertex ()
 returns [0,2] if the point is in a vertex or -1 otherwise Generated from method MR.TriPointf.inVertex.
unsafe int onEdge ()
 returns [0,2] if the point is on edge or -1 otherwise: 0 means edge [v1,v2]; 1 means edge [v2,v0]; 2 means edge [v0,v1] Generated from method MR.TriPointf.onEdge.
bool Equals (MR.Const_TriPointf? rhs)
override bool Equals (object? other)

Static Public Member Functions

static unsafe bool operator== (MR.Const_TriPointf _this, MR.Const_TriPointf rhs)
 returns true if two points have equal (a,b) representation Generated from method MR::TriPointf::operator==.
static unsafe bool operator!= (MR.Const_TriPointf _this, MR.Const_TriPointf rhs)

Protected Member Functions

virtual unsafe void Dispose (bool disposing)

Protected Attributes

unsafe float * __ref_storage_a
unsafe float * __ref_storage_b

Static Protected Attributes

static unsafe float * __ref_storage_Eps

Properties

static unsafe float Eps [get]
unsafe float a [get]
 a in [0,1], a=0 => point is on [v2,v0] edge, a=1 => point is in v1
unsafe float b [get]
 b in [0,1], b=0 => point is on [v0,v1] edge, b=1 => point is in v2

Detailed Description

encodes a point inside a triangle using barycentric coordinates

Notations used below: v0, v1, v2 - points of the triangle Generated from class MR.TriPointf. This is the const half of the class.

Constructor & Destructor Documentation

◆ Const_TriPointf() [1/7]

unsafe MR.Const_TriPointf.Const_TriPointf ( )
inline

Constructs an empty (default-constructed) instance.

◆ Const_TriPointf() [2/7]

unsafe MR.Const_TriPointf.Const_TriPointf ( MR.Const_TriPointf _other)
inline

Generated from constructor MR.TriPointf.TriPointf.

◆ Const_TriPointf() [3/7]

MR.Const_TriPointf.Const_TriPointf ( TriPointf _other)
inline

Generated from constructor MR.TriPointf.TriPointf.

◆ Const_TriPointf() [4/7]

unsafe MR.Const_TriPointf.Const_TriPointf ( MR.Const_NoInit _1)
inline

Generated from constructor MR.TriPointf.TriPointf.

◆ Const_TriPointf() [5/7]

unsafe MR.Const_TriPointf.Const_TriPointf ( float a,
float b )
inline

Generated from constructor MR.TriPointf.TriPointf.

◆ Const_TriPointf() [6/7]

unsafe MR.Const_TriPointf.Const_TriPointf ( in MR.Vector3f p,
in MR.Vector3f v0,
in MR.Vector3f v1,
in MR.Vector3f v2,
int? edge = null )
inline

given a point coordinates and triangle (v0,v1,v2) computes barycentric coordinates of the point; if the point is known to be on an edge, numbered as in onEdge(), then pass it to place the point exactly there Generated from constructor MR.TriPointf.TriPointf. Parameter edge defaults to -1.

◆ Const_TriPointf() [7/7]

unsafe MR.Const_TriPointf.Const_TriPointf ( in MR.Vector3f p,
in MR.Vector3f v1,
in MR.Vector3f v2,
int? edge = null )
inline

given a point coordinates and triangle (0,v1,v2) computes barycentric coordinates of the point; if the point is known to be on an edge, numbered as in onEdge(), then pass it to place the point exactly there Generated from constructor MR.TriPointf.TriPointf. Parameter edge defaults to -1.

Member Function Documentation

◆ Dispose() [1/2]

virtual void MR.Const_TriPointf.Dispose ( )
inlinevirtual

◆ Dispose() [2/2]

virtual unsafe void MR.Const_TriPointf.Dispose ( bool disposing)
inlineprotectedvirtual

◆ Equals() [1/2]

bool MR.Const_TriPointf.Equals ( MR.Const_TriPointf? rhs)
inline

◆ Equals() [2/2]

override bool MR.Const_TriPointf.Equals ( object? other)
inline

◆ inVertex()

unsafe int MR.Const_TriPointf.inVertex ( )
inline

returns [0,2] if the point is in a vertex or -1 otherwise Generated from method MR.TriPointf.inVertex.

◆ lnext()

unsafe MR.TriPointf MR.Const_TriPointf.lnext ( )
inline

represents the same point relative to next edge in the same triangle Generated from method MR.TriPointf.lnext.

◆ onEdge()

unsafe int MR.Const_TriPointf.onEdge ( )
inline

returns [0,2] if the point is on edge or -1 otherwise: 0 means edge [v1,v2]; 1 means edge [v2,v0]; 2 means edge [v0,v1] Generated from method MR.TriPointf.onEdge.

◆ operator!=()

unsafe bool MR.Const_TriPointf.operator!= ( MR.Const_TriPointf _this,
MR.Const_TriPointf rhs )
inlinestatic

◆ operator==()

unsafe bool MR.Const_TriPointf.operator== ( MR.Const_TriPointf _this,
MR.Const_TriPointf rhs )
inlinestatic

returns true if two points have equal (a,b) representation Generated from method MR::TriPointf::operator==.

Member Data Documentation

◆ __ref_storage_a

unsafe float* MR.Const_TriPointf.__ref_storage_a
protected

◆ __ref_storage_b

unsafe float* MR.Const_TriPointf.__ref_storage_b
protected

◆ __ref_storage_Eps

unsafe float* MR.Const_TriPointf.__ref_storage_Eps
staticprotected

Property Documentation

◆ a

unsafe float MR.Const_TriPointf.a
get

a in [0,1], a=0 => point is on [v2,v0] edge, a=1 => point is in v1

◆ b

unsafe float MR.Const_TriPointf.b
get

b in [0,1], b=0 => point is on [v0,v1] edge, b=1 => point is in v2

◆ Eps

unsafe float MR.Const_TriPointf.Eps
staticget
