MR.ContoursMeshAlignParams Class Reference

Parameters for aligning 2d contours onto mesh surface Generated from class MR.ContoursMeshAlignParams. This is the non-const half of the class. More...

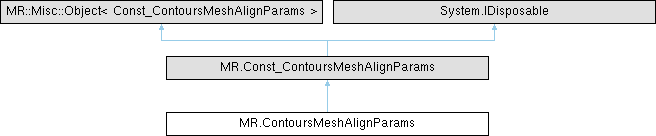

Inheritance diagram for MR.ContoursMeshAlignParams:

Public Member Functions
unsafe	ContoursMeshAlignParams ()
	Constructs an empty (default-constructed) instance.
unsafe	ContoursMeshAlignParams (MR.Const_MeshTriPoint meshPoint, MR.Vector2f pivotPoint, MR.Vector3f xDirection, MR.Vector3f? zDirection, float extrusion, float maximumShift)
	Constructs MR.ContoursMeshAlignParams elementwise.
unsafe	ContoursMeshAlignParams (MR.Const_ContoursMeshAlignParams _other)
	Generated from constructor MR.ContoursMeshAlignParams.ContoursMeshAlignParams.
	ContoursMeshAlignParams (ContoursMeshAlignParams _other)
	Generated from constructor MR.ContoursMeshAlignParams.ContoursMeshAlignParams.
unsafe MR.ContoursMeshAlignParams	assign (MR.Const_ContoursMeshAlignParams _other)
	Generated from method MR::ContoursMeshAlignParams::operator=.

Properties
new unsafe MR.MeshTriPoint	meshPoint [get, protected set]
	Point coordinate on mesh, represent position of contours box 'pivotPoint' on mesh.
new unsafe ref MR.Vector2f	pivotPoint [get]
	Relative position of 'meshPoint' in contours bounding box (0, 0) - bottom left, (0, 1) - bottom right, (0.5, 0.5) - center, (1, 1) - top right.
new unsafe ref MR.Vector3f	xDirection [get]
	Represents 2d contours xDirection in mesh space.
new unsafe MR.? ConstBox_Vector3f	zDirection [get, set]
	Represents contours normal in mesh space if nullptr - use mesh normal at 'meshPoint'.
new unsafe ref float	extrusion [get]
	Contours extrusion in +z and -z direction.
new unsafe ref float	maximumShift [get]
	Maximum allowed shift along 'zDirection' for alignment.

Detailed Description

Parameters for aligning 2d contours onto mesh surface Generated from class MR.ContoursMeshAlignParams. This is the non-const half of the class.

Constructor & Destructor Documentation

ContoursMeshAlignParams() [1/4]

unsafe MR.ContoursMeshAlignParams.ContoursMeshAlignParams ( )

inline

Constructs an empty (default-constructed) instance.

ContoursMeshAlignParams() [2/4]

unsafe MR.ContoursMeshAlignParams.ContoursMeshAlignParams ( MR.Const_MeshTriPoint meshPoint, MR.Vector2f pivotPoint, MR.Vector3f xDirection, MR.Vector3f? zDirection, float extrusion, float maximumShift )

inline

Constructs MR.ContoursMeshAlignParams elementwise.

ContoursMeshAlignParams() [3/4]

unsafe MR.ContoursMeshAlignParams.ContoursMeshAlignParams ( MR.Const_ContoursMeshAlignParams _other )

inline

Generated from constructor MR.ContoursMeshAlignParams.ContoursMeshAlignParams.

ContoursMeshAlignParams() [4/4]

MR.ContoursMeshAlignParams.ContoursMeshAlignParams ( ContoursMeshAlignParams _other )

inline

Generated from constructor MR.ContoursMeshAlignParams.ContoursMeshAlignParams.

Member Function Documentation

assign()

unsafe MR.ContoursMeshAlignParams MR.ContoursMeshAlignParams.assign ( MR.Const_ContoursMeshAlignParams _other )

inline

Generated from method MR::ContoursMeshAlignParams::operator=.

Property Documentation

extrusion

new unsafe ref float MR.ContoursMeshAlignParams.extrusion

get

Contours extrusion in +z and -z direction.

maximumShift

new unsafe ref float MR.ContoursMeshAlignParams.maximumShift

get

Maximum allowed shift along 'zDirection' for alignment.

meshPoint

new unsafe MR.MeshTriPoint MR.ContoursMeshAlignParams.meshPoint

getprotected set

Point coordinate on mesh, represent position of contours box 'pivotPoint' on mesh.

pivotPoint

new unsafe ref MR.Vector2f MR.ContoursMeshAlignParams.pivotPoint

get

Relative position of 'meshPoint' in contours bounding box (0, 0) - bottom left, (0, 1) - bottom right, (0.5, 0.5) - center, (1, 1) - top right.

xDirection

new unsafe ref MR.Vector3f MR.ContoursMeshAlignParams.xDirection

get

Represents 2d contours xDirection in mesh space.

zDirection

new unsafe MR.? ConstBox_Vector3f MR.ContoursMeshAlignParams.zDirection

getset

Represents contours normal in mesh space if nullptr - use mesh normal at 'meshPoint'.

---

The documentation for this class was generated from the following file:

• MRAlignContoursToMesh.cs
