MR.CutMeshResult Struct Reference

This structure contains result of MR.cutMesh function Generated from class MR.CutMeshResult. This is the const half of the class. More...

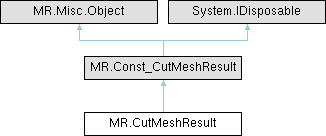

Inheritance diagram for MR.CutMeshResult:

Public Member Functions

unsafe CutMeshResult ()
 Constructs an empty (default-constructed) instance.
unsafe CutMeshResult (MR.Std._ByValue_Vector_StdVectorMREdgeId resultCut, MR._ByValue_FaceBitSet fbsWithContourIntersections)
 Constructs MR.CutMeshResult elementwise.
unsafe CutMeshResult (MR._ByValue_CutMeshResult _other)
 Generated from constructor MR.CutMeshResult.CutMeshResult.
 CutMeshResult (Const_CutMeshResult _other)
 Generated from constructor MR.CutMeshResult.CutMeshResult.
 CutMeshResult (CutMeshResult _other)
 Generated from constructor MR.CutMeshResult.CutMeshResult.
unsafe MR.CutMeshResult assign (MR._ByValue_CutMeshResult _other)
 Generated from method MR::CutMeshResult::operator=.
Public Member Functions inherited from MR.Const_CutMeshResult
virtual void Dispose ()
unsafe Const_CutMeshResult ()
 Constructs an empty (default-constructed) instance.
unsafe Const_CutMeshResult (MR.Std._ByValue_Vector_StdVectorMREdgeId resultCut, MR._ByValue_FaceBitSet fbsWithContourIntersections)
 Constructs MR.CutMeshResult elementwise.
unsafe Const_CutMeshResult (MR._ByValue_CutMeshResult _other)
 Generated from constructor MR.CutMeshResult.CutMeshResult.
 Const_CutMeshResult (Const_CutMeshResult _other)
 Generated from constructor MR.CutMeshResult.CutMeshResult.
 Const_CutMeshResult (CutMeshResult _other)
 Generated from constructor MR.CutMeshResult.CutMeshResult.

Properties

new unsafe MR.Std.Vector_StdVectorMREdgeId resultCut [get, protected set]
 Paths of new edges on mesh, they represent same contours as input, but already cut; a contour going from a mesh vertex to a point and back has an edge followed by its sym there; with CutMeshParameters.ForceFill.SplitCrossings and sortData, a path also passes the vertices where its contour crosses others (or itself) in bad faces.
new unsafe MR.FaceBitSet fbsWithContourIntersections [get, protected set]
 Bitset of bad triangles - triangles where input contours have intersections and cannot be cut and filled in a good way; under force fill, also the triangles where two segments of the contours cross (segments that follow each other along a contour or have a common mesh vertex do not), even if their cut is valid; the triangles where that cannot be told may be reported too: where the exact predicates fail on the points of the contours that they compare (e.g. coincident contours of a double-sided sheet), or, without sortData, where the corners of the triangle are on one line and more than three points of the contours are inside it.
Properties inherited from MR.Const_CutMeshResult
unsafe MR.Std.Const_Vector_StdVectorMREdgeId resultCut [get, protected set]
 Paths of new edges on mesh, they represent same contours as input, but already cut; a contour going from a mesh vertex to a point and back has an edge followed by its sym there; with CutMeshParameters.ForceFill.SplitCrossings and sortData, a path also passes the vertices where its contour crosses others (or itself) in bad faces.
unsafe MR.Const_FaceBitSet fbsWithContourIntersections [get, protected set]
 Bitset of bad triangles - triangles where input contours have intersections and cannot be cut and filled in a good way; under force fill, also the triangles where two segments of the contours cross (segments that follow each other along a contour or have a common mesh vertex do not), even if their cut is valid; the triangles where that cannot be told may be reported too: where the exact predicates fail on the points of the contours that they compare (e.g. coincident contours of a double-sided sheet), or, without sortData, where the corners of the triangle are on one line and more than three points of the contours are inside it.

Additional Inherited Members

Protected Member Functions inherited from MR.Const_CutMeshResult
virtual unsafe void Dispose (bool disposing)

Detailed Description

This structure contains result of MR.cutMesh function Generated from class MR.CutMeshResult. This is the const half of the class.

This structure contains result of MR.cutMesh function Generated from class MR.CutMeshResult. This is the non-const half of the class.

Constructor & Destructor Documentation

◆ CutMeshResult() [1/5]

unsafe MR.CutMeshResult.CutMeshResult ( )
inline

Constructs an empty (default-constructed) instance.

◆ CutMeshResult() [2/5]

unsafe MR.CutMeshResult.CutMeshResult ( MR.Std._ByValue_Vector_StdVectorMREdgeId resultCut,
MR._ByValue_FaceBitSet fbsWithContourIntersections )
inline

Constructs MR.CutMeshResult elementwise.

◆ CutMeshResult() [3/5]

unsafe MR.CutMeshResult.CutMeshResult ( MR._ByValue_CutMeshResult _other)
inline

Generated from constructor MR.CutMeshResult.CutMeshResult.

◆ CutMeshResult() [4/5]

MR.CutMeshResult.CutMeshResult ( Const_CutMeshResult _other)
inline

Generated from constructor MR.CutMeshResult.CutMeshResult.

◆ CutMeshResult() [5/5]

MR.CutMeshResult.CutMeshResult ( CutMeshResult _other)
inline

Generated from constructor MR.CutMeshResult.CutMeshResult.

Member Function Documentation

◆ assign()

unsafe MR.CutMeshResult MR.CutMeshResult.assign ( MR._ByValue_CutMeshResult _other)
inline

Generated from method MR::CutMeshResult::operator=.

Property Documentation

◆ fbsWithContourIntersections

new unsafe MR.FaceBitSet MR.CutMeshResult.fbsWithContourIntersections
getprotected set

Bitset of bad triangles - triangles where input contours have intersections and cannot be cut and filled in a good way; under force fill, also the triangles where two segments of the contours cross (segments that follow each other along a contour or have a common mesh vertex do not), even if their cut is valid; the triangles where that cannot be told may be reported too: where the exact predicates fail on the points of the contours that they compare (e.g. coincident contours of a double-sided sheet), or, without sortData, where the corners of the triangle are on one line and more than three points of the contours are inside it.

See also
MR.CutMeshParameters

◆ resultCut

new unsafe MR.Std.Vector_StdVectorMREdgeId MR.CutMeshResult.resultCut
getprotected set

Paths of new edges on mesh, they represent same contours as input, but already cut; a contour going from a mesh vertex to a point and back has an edge followed by its sym there; with CutMeshParameters.ForceFill.SplitCrossings and sortData, a path also passes the vertices where its contour crosses others (or itself) in bad faces.
