MR.DistanceFromWeightedPointsComputeParams Class Reference

Generated from class MR.DistanceFromWeightedPointsComputeParams. Base classes: Direct: (non-virtual) MR.DistanceFromWeightedPointsParams This is the non-const half of the class. More...

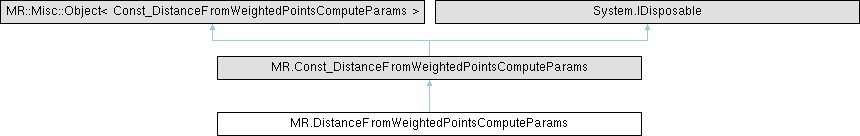

Inheritance diagram for MR.DistanceFromWeightedPointsComputeParams:

Public Member Functions
unsafe	DistanceFromWeightedPointsComputeParams ()
	Constructs an empty (default-constructed) instance.
unsafe	DistanceFromWeightedPointsComputeParams (MR._ByValue_DistanceFromWeightedPointsComputeParams _other)
	Generated from constructor MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams.
	DistanceFromWeightedPointsComputeParams (Const_DistanceFromWeightedPointsComputeParams _other)
	Generated from constructor MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams.
	DistanceFromWeightedPointsComputeParams (DistanceFromWeightedPointsComputeParams _other)
	Generated from constructor MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams.
unsafe MR.DistanceFromWeightedPointsComputeParams	assign (MR._ByValue_DistanceFromWeightedPointsComputeParams _other)
	Generated from method MR::DistanceFromWeightedPointsComputeParams::operator=.
Public Member Functions inherited from MR.Const_DistanceFromWeightedPointsComputeParams
virtual void	Dispose ()
unsafe	Const_DistanceFromWeightedPointsComputeParams ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_DistanceFromWeightedPointsComputeParams (MR._ByValue_DistanceFromWeightedPointsComputeParams _other)
	Generated from constructor MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams.
	Const_DistanceFromWeightedPointsComputeParams (Const_DistanceFromWeightedPointsComputeParams _other)
	Generated from constructor MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams.
	Const_DistanceFromWeightedPointsComputeParams (DistanceFromWeightedPointsComputeParams _other)
	Generated from constructor MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams.

Static Public Member Functions
static unsafe implicit	operator MR.DistanceFromWeightedPointsParams (DistanceFromWeightedPointsComputeParams self)
Static Public Member Functions inherited from MR.Const_DistanceFromWeightedPointsComputeParams
static unsafe implicit	operator MR.Const_DistanceFromWeightedPointsParams (Const_DistanceFromWeightedPointsComputeParams self)

Properties
new unsafe ref float	minBidirDist [get]
new unsafe ref float	maxBidirDist [get]
	find the closest point only if weighted bidirectional distance to it is less than given value
new unsafe MR.Std.Function_Float_From_MRVertId	pointWeight [get, protected set]
	function returning the weight of each point, must be set by the user
new unsafe ref float	minWeight [get]
	minimal weight among all points in the cloud; if this value is imprecise, then more computations will be made by algorithm
new unsafe ref float	maxWeight [get]
	maximal weight among all points in the cloud; if this value is imprecise, then more computations will be made by algorithm
new unsafe ref float	maxWeightGrad [get]
	maximal magnitude of gradient of points' weight in the cloud, >=0; if maxWeightGrad < 1 then more search optimizations can be done
new unsafe ref bool	bidirectionalMode [get]
	for points, it must always true; for triangles: if true the distances grow in both directions from each triangle, reaching minimum in the triangle; if false the distances grow to infinity in the direction of triangle's normals, and decrease to minus infinity in the opposite direction
Properties inherited from MR.Const_DistanceFromWeightedPointsComputeParams
unsafe float	minBidirDist [get]
unsafe float	maxBidirDist [get]
	find the closest point only if weighted bidirectional distance to it is less than given value
unsafe MR.Std.Const_Function_Float_From_MRVertId	pointWeight [get, protected set]
	function returning the weight of each point, must be set by the user
unsafe float	minWeight [get]
	minimal weight among all points in the cloud; if this value is imprecise, then more computations will be made by algorithm
unsafe float	maxWeight [get]
	maximal weight among all points in the cloud; if this value is imprecise, then more computations will be made by algorithm
unsafe float	maxWeightGrad [get]
	maximal magnitude of gradient of points' weight in the cloud, >=0; if maxWeightGrad < 1 then more search optimizations can be done
unsafe bool	bidirectionalMode [get]
	for points, it must always true; for triangles: if true the distances grow in both directions from each triangle, reaching minimum in the triangle; if false the distances grow to infinity in the direction of triangle's normals, and decrease to minus infinity in the opposite direction

Additional Inherited Members
Protected Member Functions inherited from MR.Const_DistanceFromWeightedPointsComputeParams
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_DistanceFromWeightedPointsComputeParams
unsafe float *	__ref_storage_minBidirDist
unsafe float *	__ref_storage_maxBidirDist
unsafe float *	__ref_storage_minWeight
unsafe float *	__ref_storage_maxWeight
unsafe float *	__ref_storage_maxWeightGrad
unsafe bool *	__ref_storage_bidirectionalMode

Detailed Description

Generated from class MR.DistanceFromWeightedPointsComputeParams. Base classes: Direct: (non-virtual) MR.DistanceFromWeightedPointsParams This is the non-const half of the class.

Constructor & Destructor Documentation

DistanceFromWeightedPointsComputeParams() [1/4]

unsafe MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams ( )

inline

Constructs an empty (default-constructed) instance.

DistanceFromWeightedPointsComputeParams() [2/4]

unsafe MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams ( MR._ByValue_DistanceFromWeightedPointsComputeParams _other )

inline

Generated from constructor MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams.

DistanceFromWeightedPointsComputeParams() [3/4]

MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams ( Const_DistanceFromWeightedPointsComputeParams _other )

inline

Generated from constructor MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams.

DistanceFromWeightedPointsComputeParams() [4/4]

MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams ( DistanceFromWeightedPointsComputeParams _other )

inline

Generated from constructor MR.DistanceFromWeightedPointsComputeParams.DistanceFromWeightedPointsComputeParams.

Member Function Documentation

assign()

unsafe MR.DistanceFromWeightedPointsComputeParams MR.DistanceFromWeightedPointsComputeParams.assign ( MR._ByValue_DistanceFromWeightedPointsComputeParams _other )

inline

Generated from method MR::DistanceFromWeightedPointsComputeParams::operator=.

operator MR.DistanceFromWeightedPointsParams()

unsafe implicit MR.DistanceFromWeightedPointsComputeParams.operator MR.DistanceFromWeightedPointsParams ( DistanceFromWeightedPointsComputeParams self )

inlinestatic

Property Documentation

bidirectionalMode

new unsafe ref bool MR.DistanceFromWeightedPointsComputeParams.bidirectionalMode

get

for points, it must always true; for triangles: if true the distances grow in both directions from each triangle, reaching minimum in the triangle; if false the distances grow to infinity in the direction of triangle's normals, and decrease to minus infinity in the opposite direction

maxBidirDist

new unsafe ref float MR.DistanceFromWeightedPointsComputeParams.maxBidirDist

get

find the closest point only if weighted bidirectional distance to it is less than given value

maxWeight

new unsafe ref float MR.DistanceFromWeightedPointsComputeParams.maxWeight

get

maximal weight among all points in the cloud; if this value is imprecise, then more computations will be made by algorithm

maxWeightGrad

new unsafe ref float MR.DistanceFromWeightedPointsComputeParams.maxWeightGrad

get

maximal magnitude of gradient of points' weight in the cloud, >=0; if maxWeightGrad < 1 then more search optimizations can be done

minBidirDist

new unsafe ref float MR.DistanceFromWeightedPointsComputeParams.minBidirDist

get

minWeight

new unsafe ref float MR.DistanceFromWeightedPointsComputeParams.minWeight

get

minimal weight among all points in the cloud; if this value is imprecise, then more computations will be made by algorithm

pointWeight

new unsafe MR.Std.Function_Float_From_MRVertId MR.DistanceFromWeightedPointsComputeParams.pointWeight

getprotected set

function returning the weight of each point, must be set by the user

---

The documentation for this class was generated from the following file:

• MRClosestWeightedPoint.cs
