MR.DistanceToMeshOptions Class Reference

options determining computation of distance from a point to a mesh Generated from class MR.DistanceToMeshOptions. Derived classes: Direct: (non-virtual) MR.SignedDistanceToMeshOptions This is the non-const half of the class. More...

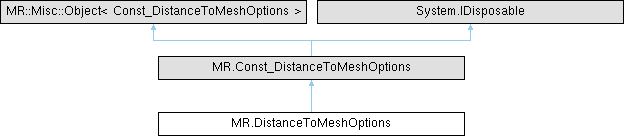

Inheritance diagram for MR.DistanceToMeshOptions:

Public Member Functions
unsafe	DistanceToMeshOptions ()
	Constructs an empty (default-constructed) instance.
unsafe	DistanceToMeshOptions (float minDistSq, float maxDistSq, bool nullOutsideMinMax, float windingNumberThreshold, float windingNumberBeta)
	Constructs MR.DistanceToMeshOptions elementwise.
unsafe	DistanceToMeshOptions (MR.Const_DistanceToMeshOptions _other)
	Generated from constructor MR.DistanceToMeshOptions.DistanceToMeshOptions.
	DistanceToMeshOptions (DistanceToMeshOptions _other)
	Generated from constructor MR.DistanceToMeshOptions.DistanceToMeshOptions.
unsafe MR.DistanceToMeshOptions	assign (MR.Const_DistanceToMeshOptions _other)
	Generated from method MR.DistanceToMeshOptions.operator=.

Properties
new unsafe ref float	minDistSq [get]
	minimum squared distance from a point to mesh to be computed precisely
new unsafe ref float	maxDistSq [get]
	maximum squared distance from a point to mesh to be computed precisely
new unsafe ref bool	nullOutsideMinMax [get]
new unsafe ref float	windingNumberThreshold [get]
new unsafe ref float	windingNumberBeta [get]

Detailed Description

options determining computation of distance from a point to a mesh Generated from class MR.DistanceToMeshOptions. Derived classes: Direct: (non-virtual) MR.SignedDistanceToMeshOptions This is the non-const half of the class.

Constructor & Destructor Documentation

DistanceToMeshOptions() [1/4]

unsafe MR.DistanceToMeshOptions.DistanceToMeshOptions ( )

inline

Constructs an empty (default-constructed) instance.

DistanceToMeshOptions() [2/4]

unsafe MR.DistanceToMeshOptions.DistanceToMeshOptions ( float minDistSq, float maxDistSq, bool nullOutsideMinMax, float windingNumberThreshold, float windingNumberBeta )

inline

Constructs MR.DistanceToMeshOptions elementwise.

DistanceToMeshOptions() [3/4]

unsafe MR.DistanceToMeshOptions.DistanceToMeshOptions ( MR.Const_DistanceToMeshOptions _other )

inline

Generated from constructor MR.DistanceToMeshOptions.DistanceToMeshOptions.

DistanceToMeshOptions() [4/4]

MR.DistanceToMeshOptions.DistanceToMeshOptions ( DistanceToMeshOptions _other )

inline

Generated from constructor MR.DistanceToMeshOptions.DistanceToMeshOptions.

Member Function Documentation

assign()

unsafe MR.DistanceToMeshOptions MR.DistanceToMeshOptions.assign ( MR.Const_DistanceToMeshOptions _other )

inline

Generated from method MR.DistanceToMeshOptions.operator=.

Property Documentation

maxDistSq

new unsafe ref float MR.DistanceToMeshOptions.maxDistSq

get

maximum squared distance from a point to mesh to be computed precisely

minDistSq

new unsafe ref float MR.DistanceToMeshOptions.minDistSq

get

minimum squared distance from a point to mesh to be computed precisely

nullOutsideMinMax

new unsafe ref bool MR.DistanceToMeshOptions.nullOutsideMinMax

get

what to do if actual distance is outside [min, max) range: true - return std.nullopt for std.optional<float> or NaN for float, false - return approximate value of the distance (with correct sign in case of SignDetectionMode.HoleWindingRule); please note that in HoleWindingRule the sign can change even for too small or too large distances, so if you would like to get closed mesh from marching cubes, set false here

windingNumberBeta

new unsafe ref float MR.DistanceToMeshOptions.windingNumberBeta

get

only for SignDetectionMode.HoleWindingRule: determines the precision of fast approximation: the more the better, minimum value is 1

windingNumberThreshold

new unsafe ref float MR.DistanceToMeshOptions.windingNumberThreshold

get

only for SignDetectionMode.HoleWindingRule: positive distance if winding number below or equal this threshold; ideal threshold: 0.5 for closed meshes; 0.0 for planar meshes

---

The documentation for this class was generated from the following file:

• MRDistanceToMeshOptions.cs
