MR.DividePolylineParameters Class Reference

Generated from class MR.DividePolylineParameters. This is the non-const half of the class. More...

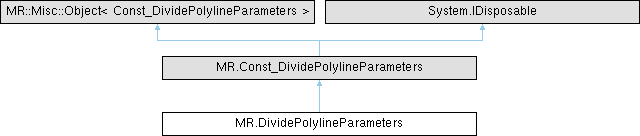

Inheritance diagram for MR.DividePolylineParameters:

Public Member Functions
unsafe	DividePolylineParameters ()
	Constructs an empty (default-constructed) instance.
unsafe	DividePolylineParameters (MR.Std._ByValue_Function_VoidFuncFromMREdgeIdMREdgeIdFloat onEdgeSplitCallback, bool closeLineAfterCut, MR.VertMap? outVmap, MR.EdgeMap? outEmap, MR.Polyline3? otherPart, MR.VertMap? otherOutVmap, MR.EdgeMap? otherOutEmap)
	Constructs MR.DividePolylineParameters elementwise.
unsafe	DividePolylineParameters (MR._ByValue_DividePolylineParameters _other)
	Generated from constructor MR.DividePolylineParameters.DividePolylineParameters.
	DividePolylineParameters (Const_DividePolylineParameters _other)
	Generated from constructor MR.DividePolylineParameters.DividePolylineParameters.
	DividePolylineParameters (DividePolylineParameters _other)
	Generated from constructor MR.DividePolylineParameters.DividePolylineParameters.
unsafe MR.DividePolylineParameters	assign (MR._ByValue_DividePolylineParameters _other)
	Generated from method MR.DividePolylineParameters.operator=.

Properties
new unsafe MR.Std.Function_VoidFuncFromMREdgeIdMREdgeIdFloat	onEdgeSplitCallback [get, protected set]
	onEdgeSplitCallback is invoked each time when an edge is split. Receives edge ID before split, edge ID after split, and weight of the origin vertex
new unsafe ref bool	closeLineAfterCut [get]
new unsafe MR.? VertMap	outVmap [get, set]
	map from input polyline verts to output
new unsafe MR.? EdgeMap	outEmap [get, set]
	map from input polyline edges to output
new unsafe MR.? Polyline3	otherPart [get, set]
	otherPart Optional return, polyline composed from edges on the negative side of the plane
new unsafe MR.? VertMap	otherOutVmap [get, set]
	map from input polyline verts to other output
new unsafe MR.? EdgeMap	otherOutEmap [get, set]
	map from input polyline edges to other output

Detailed Description

Generated from class MR.DividePolylineParameters. This is the non-const half of the class.

Constructor & Destructor Documentation

DividePolylineParameters() [1/5]

unsafe MR.DividePolylineParameters.DividePolylineParameters ( )

inline

Constructs an empty (default-constructed) instance.

DividePolylineParameters() [2/5]

unsafe MR.DividePolylineParameters.DividePolylineParameters ( MR.Std._ByValue_Function_VoidFuncFromMREdgeIdMREdgeIdFloat onEdgeSplitCallback, bool closeLineAfterCut, MR.VertMap? outVmap, MR.EdgeMap? outEmap, MR.Polyline3? otherPart, MR.VertMap? otherOutVmap, MR.EdgeMap? otherOutEmap )

inline

Constructs MR.DividePolylineParameters elementwise.

DividePolylineParameters() [3/5]

unsafe MR.DividePolylineParameters.DividePolylineParameters ( MR._ByValue_DividePolylineParameters _other )

inline

Generated from constructor MR.DividePolylineParameters.DividePolylineParameters.

DividePolylineParameters() [4/5]

MR.DividePolylineParameters.DividePolylineParameters ( Const_DividePolylineParameters _other )

inline

Generated from constructor MR.DividePolylineParameters.DividePolylineParameters.

DividePolylineParameters() [5/5]

MR.DividePolylineParameters.DividePolylineParameters ( DividePolylineParameters _other )

inline

Generated from constructor MR.DividePolylineParameters.DividePolylineParameters.

Member Function Documentation

assign()

unsafe MR.DividePolylineParameters MR.DividePolylineParameters.assign ( MR._ByValue_DividePolylineParameters _other )

inline

Generated from method MR.DividePolylineParameters.operator=.

Property Documentation

closeLineAfterCut

new unsafe ref bool MR.DividePolylineParameters.closeLineAfterCut

get

closeLineAfterCut if true, the ends of resulting polyline will be connected by new edges (can make a polyline closed, even if the original one was open) if close, only cut edges (no new edges will be created)

onEdgeSplitCallback

new unsafe MR.Std.Function_VoidFuncFromMREdgeIdMREdgeIdFloat MR.DividePolylineParameters.onEdgeSplitCallback

getprotected set

onEdgeSplitCallback is invoked each time when an edge is split. Receives edge ID before split, edge ID after split, and weight of the origin vertex

otherOutEmap

new unsafe MR.? EdgeMap MR.DividePolylineParameters.otherOutEmap

getset

map from input polyline edges to other output

otherOutVmap

new unsafe MR.? VertMap MR.DividePolylineParameters.otherOutVmap

getset

map from input polyline verts to other output

otherPart

new unsafe MR.? Polyline3 MR.DividePolylineParameters.otherPart

getset

otherPart Optional return, polyline composed from edges on the negative side of the plane

outEmap

new unsafe MR.? EdgeMap MR.DividePolylineParameters.outEmap

getset

map from input polyline edges to output

outVmap

new unsafe MR.? VertMap MR.DividePolylineParameters.outVmap

getset

map from input polyline verts to output

---

The documentation for this class was generated from the following file:

• MRPolylineTrimWithPlane.cs
