MR.FillHoleParams Struct Reference

Parameters structure for MR.fillHole
Structure has some options to control MR.fillHole. More...

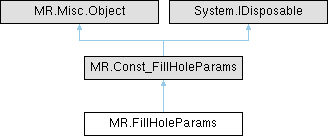

Inheritance diagram for MR.FillHoleParams:

Public Member Functions

unsafe FillHoleParams ()
 Constructs an empty (default-constructed) instance.
unsafe FillHoleParams (MR._ByValue_FillHoleMetric metric, bool smoothBd, MR.FaceBitSet? outNewFaces, MR.FillHoleParams.MultipleEdgesResolveMode multipleEdgesResolveMode, bool makeDegenerateBand, int maxPolygonSubdivisions, MR.Misc.InOut< bool >? stopBeforeBadTriangulation)
 Constructs MR.FillHoleParams elementwise.
unsafe FillHoleParams (MR._ByValue_FillHoleParams _other)
 Generated from constructor MR.FillHoleParams.FillHoleParams.
 FillHoleParams (Const_FillHoleParams _other)
 Generated from constructor MR.FillHoleParams.FillHoleParams.
 FillHoleParams (FillHoleParams _other)
 Generated from constructor MR.FillHoleParams.FillHoleParams.
unsafe MR.FillHoleParams assign (MR._ByValue_FillHoleParams _other)
 Generated from method MR::FillHoleParams::operator=.
Public Member Functions inherited from MR.Const_FillHoleParams
virtual void Dispose ()
unsafe Const_FillHoleParams ()
 Constructs an empty (default-constructed) instance.
unsafe Const_FillHoleParams (MR._ByValue_FillHoleMetric metric, bool smoothBd, MR.FaceBitSet? outNewFaces, MR.FillHoleParams.MultipleEdgesResolveMode multipleEdgesResolveMode, bool makeDegenerateBand, int maxPolygonSubdivisions, MR.Misc.InOut< bool >? stopBeforeBadTriangulation)
 Constructs MR.FillHoleParams elementwise.
unsafe Const_FillHoleParams (MR._ByValue_FillHoleParams _other)
 Generated from constructor MR.FillHoleParams.FillHoleParams.
 Const_FillHoleParams (Const_FillHoleParams _other)
 Generated from constructor MR.FillHoleParams.FillHoleParams.
 Const_FillHoleParams (FillHoleParams _other)
 Generated from constructor MR.FillHoleParams.FillHoleParams.

Properties

new unsafe MR.FillHoleMetric metric [get, protected set]
 Specifies triangulation metric
default for MR.fillHole: getCircumscribedFillMetric
.
new unsafe ref bool smoothBd [get]
 If true, hole filling will minimize the sum of metrics including boundary edges, where one triangle was present before hole filling, and another is added during hole filling. This makes boundary edges same smooth as inner edges of the patch. If false, edge metric will not be applied to boundary edges, and the patch tends to make a sharper turn there.
new unsafe MR.? FaceBitSet outNewFaces [get, set]
 If not nullptr accumulate new faces.
new unsafe ref MR.FillHoleParams.MultipleEdgesResolveMode multipleEdgesResolveMode [get]
new unsafe ref bool makeDegenerateBand [get]
 If true creates degenerate faces band around hole to have sharp angle visualization.
new unsafe ref int maxPolygonSubdivisions [get]
 The maximum number of polygon subdivisions on a triangle and two smaller polygons, must be 2 or larger.
new unsafe MR.Misc.? Box< byte > stopBeforeBadTriangulation [get, set]
 Input/output value, if it is present: returns true if triangulation was bad and do not actually fill hole, if triangulation is ok returns false; if it is not present fill hole trivially in case of bad triangulation, (or leaves bad triangulation, depending on metric)
Properties inherited from MR.Const_FillHoleParams
unsafe MR.Const_FillHoleMetric metric [get, protected set]
 Specifies triangulation metric
default for MR.fillHole: getCircumscribedFillMetric
.
unsafe bool smoothBd [get]
 If true, hole filling will minimize the sum of metrics including boundary edges, where one triangle was present before hole filling, and another is added during hole filling. This makes boundary edges same smooth as inner edges of the patch. If false, edge metric will not be applied to boundary edges, and the patch tends to make a sharper turn there.
unsafe MR.? FaceBitSet outNewFaces [get]
 If not nullptr accumulate new faces.
unsafe MR.FillHoleParams.MultipleEdgesResolveMode multipleEdgesResolveMode [get]
unsafe bool makeDegenerateBand [get]
 If true creates degenerate faces band around hole to have sharp angle visualization.
unsafe int maxPolygonSubdivisions [get]
 The maximum number of polygon subdivisions on a triangle and two smaller polygons, must be 2 or larger.
unsafe MR.Misc.? Box< byte > stopBeforeBadTriangulation [get]
 Input/output value, if it is present: returns true if triangulation was bad and do not actually fill hole, if triangulation is ok returns false; if it is not present fill hole trivially in case of bad triangulation, (or leaves bad triangulation, depending on metric)

Additional Inherited Members

Public Types inherited from MR.Const_FillHoleParams
enum  MultipleEdgesResolveMode : int { None = 0 , Simple = 1 , Strong = 2 }
 If Strong makes additional efforts to avoid creating multiple edges, in some rare cases it is not possible (cases with extremely bad topology), if you faced one try to use MR.duplicateMultiHoleVertices before MR.fillHole If Simple avoid creating edges that already exist in topology (default) If None do not avoid multiple edges. More...
Protected Member Functions inherited from MR.Const_FillHoleParams
virtual unsafe void Dispose (bool disposing)
Protected Attributes inherited from MR.Const_FillHoleParams
unsafe bool * __ref_storage_smoothBd
unsafe MR.FaceBitSet._Underlying ** __ptr_storage_outNewFaces
unsafe MR.FillHoleParams.MultipleEdgesResolveMode * __ref_storage_multipleEdgesResolveMode
unsafe bool * __ref_storage_makeDegenerateBand
unsafe int * __ref_storage_maxPolygonSubdivisions
unsafe byte ** __ptr_storage_stopBeforeBadTriangulation

Detailed Description

Parameters structure for MR.fillHole
Structure has some options to control MR.fillHole.

See also
fillHole
FillHoleMetric Generated from class MR.FillHoleParams. This is the const half of the class.
fillHole
FillHoleMetric Generated from class MR.FillHoleParams. This is the non-const half of the class.

Constructor & Destructor Documentation

◆ FillHoleParams() [1/5]

unsafe MR.FillHoleParams.FillHoleParams ( )
inline

Constructs an empty (default-constructed) instance.

◆ FillHoleParams() [2/5]

unsafe MR.FillHoleParams.FillHoleParams ( MR._ByValue_FillHoleMetric metric,
bool smoothBd,
MR.FaceBitSet? outNewFaces,
MR.FillHoleParams.MultipleEdgesResolveMode multipleEdgesResolveMode,
bool makeDegenerateBand,
int maxPolygonSubdivisions,
MR.Misc.InOut< bool >? stopBeforeBadTriangulation )
inline

Constructs MR.FillHoleParams elementwise.

◆ FillHoleParams() [3/5]

unsafe MR.FillHoleParams.FillHoleParams ( MR._ByValue_FillHoleParams _other)
inline

Generated from constructor MR.FillHoleParams.FillHoleParams.

◆ FillHoleParams() [4/5]

MR.FillHoleParams.FillHoleParams ( Const_FillHoleParams _other)
inline

Generated from constructor MR.FillHoleParams.FillHoleParams.

◆ FillHoleParams() [5/5]

MR.FillHoleParams.FillHoleParams ( FillHoleParams _other)
inline

Generated from constructor MR.FillHoleParams.FillHoleParams.

Member Function Documentation

◆ assign()

unsafe MR.FillHoleParams MR.FillHoleParams.assign ( MR._ByValue_FillHoleParams _other)
inline

Generated from method MR::FillHoleParams::operator=.

Property Documentation

◆ makeDegenerateBand

new unsafe ref bool MR.FillHoleParams.makeDegenerateBand
get

If true creates degenerate faces band around hole to have sharp angle visualization.

Warning
This flag bad for result topology, most likely you do not need it

◆ maxPolygonSubdivisions

new unsafe ref int MR.FillHoleParams.maxPolygonSubdivisions
get

The maximum number of polygon subdivisions on a triangle and two smaller polygons, must be 2 or larger.

◆ metric

new unsafe MR.FillHoleMetric MR.FillHoleParams.metric
getprotected set

Specifies triangulation metric
default for MR.fillHole: getCircumscribedFillMetric
.

See also
FillHoleMetric

◆ multipleEdgesResolveMode

new unsafe ref MR.FillHoleParams.MultipleEdgesResolveMode MR.FillHoleParams.multipleEdgesResolveMode
get

◆ outNewFaces

new unsafe MR.? FaceBitSet MR.FillHoleParams.outNewFaces
getset

If not nullptr accumulate new faces.

◆ smoothBd

new unsafe ref bool MR.FillHoleParams.smoothBd
get

If true, hole filling will minimize the sum of metrics including boundary edges, where one triangle was present before hole filling, and another is added during hole filling. This makes boundary edges same smooth as inner edges of the patch. If false, edge metric will not be applied to boundary edges, and the patch tends to make a sharper turn there.

◆ stopBeforeBadTriangulation

new unsafe MR.Misc.? Box<byte> MR.FillHoleParams.stopBeforeBadTriangulation
getset

Input/output value, if it is present: returns true if triangulation was bad and do not actually fill hole, if triangulation is ok returns false; if it is not present fill hole trivially in case of bad triangulation, (or leaves bad triangulation, depending on metric)
