MR.FindInnerShellSettings Class Reference

Generated from class MR.FindInnerShellSettings. This is the non-const half of the class. More...

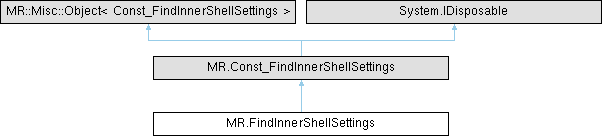

Inheritance diagram for MR.FindInnerShellSettings:

Public Member Functions
unsafe	FindInnerShellSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	FindInnerShellSettings (MR.Side side, float maxDistSq, bool useWindingNumber, float windingNumberThreshold, int minVertsInComp)
	Constructs MR.FindInnerShellSettings elementwise.
unsafe	FindInnerShellSettings (MR.Const_FindInnerShellSettings _other)
	Generated from constructor MR.FindInnerShellSettings.FindInnerShellSettings.
	FindInnerShellSettings (FindInnerShellSettings _other)
	Generated from constructor MR.FindInnerShellSettings.FindInnerShellSettings.
unsafe MR.FindInnerShellSettings	assign (MR.Const_FindInnerShellSettings _other)
	Generated from method MR.FindInnerShellSettings.operator=.

Properties
new unsafe ref MR.Side	side [get]
	specifies which side of shell is of interest: negative or positive relative to mesh normals
new unsafe ref float	maxDistSq [get]
	specifies maximum squared distance from shell parts of interest to source mesh
new unsafe ref bool	useWindingNumber [get]
	if true, a slower algorithm is activated that is more robust in the presence of self-intersections on mesh
new unsafe ref float	windingNumberThreshold [get]
new unsafe ref int	minVertsInComp [get]

Detailed Description

Generated from class MR.FindInnerShellSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

FindInnerShellSettings() [1/4]

unsafe MR.FindInnerShellSettings.FindInnerShellSettings ( )

inline

Constructs an empty (default-constructed) instance.

FindInnerShellSettings() [2/4]

unsafe MR.FindInnerShellSettings.FindInnerShellSettings ( MR.Side side, float maxDistSq, bool useWindingNumber, float windingNumberThreshold, int minVertsInComp )

inline

Constructs MR.FindInnerShellSettings elementwise.

FindInnerShellSettings() [3/4]

unsafe MR.FindInnerShellSettings.FindInnerShellSettings ( MR.Const_FindInnerShellSettings _other )

inline

Generated from constructor MR.FindInnerShellSettings.FindInnerShellSettings.

FindInnerShellSettings() [4/4]

MR.FindInnerShellSettings.FindInnerShellSettings ( FindInnerShellSettings _other )

inline

Generated from constructor MR.FindInnerShellSettings.FindInnerShellSettings.

Member Function Documentation

assign()

unsafe MR.FindInnerShellSettings MR.FindInnerShellSettings.assign ( MR.Const_FindInnerShellSettings _other )

inline

Generated from method MR.FindInnerShellSettings.operator=.

Property Documentation

maxDistSq

new unsafe ref float MR.FindInnerShellSettings.maxDistSq

get

specifies maximum squared distance from shell parts of interest to source mesh

minVertsInComp

new unsafe ref int MR.FindInnerShellSettings.minVertsInComp

get

components of proper side with smaller number of vertices than this value will be removed from the result; components of wrong side with smaller number of vertices than this value will be added to the result

side

new unsafe ref MR.Side MR.FindInnerShellSettings.side

get

specifies which side of shell is of interest: negative or positive relative to mesh normals

useWindingNumber

new unsafe ref bool MR.FindInnerShellSettings.useWindingNumber

get

if true, a slower algorithm is activated that is more robust in the presence of self-intersections on mesh

windingNumberThreshold

new unsafe ref float MR.FindInnerShellSettings.windingNumberThreshold

get

positive side if winding number below or equal this threshold; ideal threshold: 0.5 for closed meshes; 0.0 for planar meshes

---

The documentation for this class was generated from the following file:

• MRInnerShell.cs
