MR.FixUndercuts.FindParams Class Reference

Parameters that is used to find undercuts Generated from class MR.FixUndercuts.FindParams. This is the non-const half of the class. More...

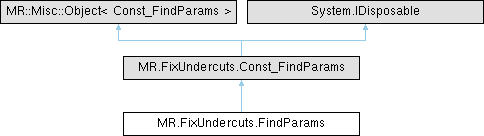

Inheritance diagram for MR.FixUndercuts.FindParams:

Public Member Functions
unsafe	FindParams ()
	Constructs an empty (default-constructed) instance.
unsafe	FindParams (MR.Vector3f upDirection, float wallAngle)
	Constructs MR.FixUndercuts.FindParams elementwise.
unsafe	FindParams (MR.FixUndercuts.Const_FindParams _other)
	Generated from constructor MR.FixUndercuts.FindParams.FindParams.
	FindParams (FindParams _other)
	Generated from constructor MR.FixUndercuts.FindParams.FindParams.
unsafe MR.FixUndercuts.FindParams	assign (MR.FixUndercuts.Const_FindParams _other)
	Generated from method MR.FixUndercuts.FindParams.operator=.

Properties
new unsafe ref MR.Vector3f	upDirection [get]
	Primitives that are not visible from up direction are considered as undercuts (fix undercuts is performed downwards (in -direction))
new unsafe ref float	wallAngle [get]

Detailed Description

Parameters that is used to find undercuts Generated from class MR.FixUndercuts.FindParams. This is the non-const half of the class.

Constructor & Destructor Documentation

FindParams() [1/4]

unsafe MR.FixUndercuts.FindParams.FindParams ( )

inline

Constructs an empty (default-constructed) instance.

FindParams() [2/4]

unsafe MR.FixUndercuts.FindParams.FindParams ( MR.Vector3f upDirection, float wallAngle )

inline

Constructs MR.FixUndercuts.FindParams elementwise.

FindParams() [3/4]

unsafe MR.FixUndercuts.FindParams.FindParams ( MR.FixUndercuts.Const_FindParams _other )

inline

Generated from constructor MR.FixUndercuts.FindParams.FindParams.

FindParams() [4/4]

MR.FixUndercuts.FindParams.FindParams ( FindParams _other )

inline

Generated from constructor MR.FixUndercuts.FindParams.FindParams.

Member Function Documentation

assign()

unsafe MR.FixUndercuts.FindParams MR.FixUndercuts.FindParams.assign ( MR.FixUndercuts.Const_FindParams _other )

inline

Generated from method MR.FixUndercuts.FindParams.operator=.

Property Documentation

upDirection

new unsafe ref MR.Vector3f MR.FixUndercuts.FindParams.upDirection

get

Primitives that are not visible from up direction are considered as undercuts (fix undercuts is performed downwards (in -direction))

wallAngle

new unsafe ref float MR.FixUndercuts.FindParams.wallAngle

get

vertical angle of fixed undercut walls (note that this value is approximate - it defines "camera" position for internal projective transformation) 0 - strictly vertical walls of undercuts area positive - expanding downwards walls negative - shrinking downwards walls

---

The documentation for this class was generated from the following file:

• MRFixUndercuts.cs
