MR.GridSettings Class Reference

settings defining regular grid, where each quadrangular cell is split on two triangles in one of two ways Generated from class MR.GridSettings. This is the non-const half of the class. More...

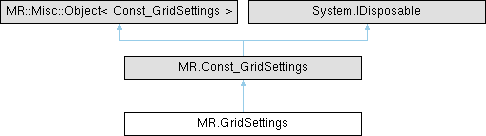

Inheritance diagram for MR.GridSettings:

Public Member Functions
unsafe	GridSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	GridSettings (MR.Vector2i dim, MR._ByValue_BMap_MRVertId_MRUint64T vertIds, MR._ByValue_BMap_MRUndirectedEdgeId_MRUint64T uedgeIds, MR._ByValue_BMap_MRFaceId_MRUint64T faceIds)
	Constructs MR.GridSettings elementwise.
unsafe	GridSettings (MR._ByValue_GridSettings _other)
	Generated from constructor MR.GridSettings.GridSettings.
unsafe MR.GridSettings	assign (MR._ByValue_GridSettings _other)
	Generated from method MR::GridSettings::operator=.

Properties
new unsafe ref MR.Vector2i	dim [get]
	the number of cells in X and Y dimensions; the number of vertices will be at most (X+1)*(Y+1)
new unsafe MR.BMap_MRVertId_MRUint64T	vertIds [get, protected set]
	grid coordinates to vertex Id; invalid vertex Id means that this vertex is missing in grid; index is x + y * ( settings.dim.x + 1 )
new unsafe MR.BMap_MRUndirectedEdgeId_MRUint64T	uedgeIds [get, protected set]
	grid coordinates of lower-left vertex and edge-type to edgeId with the origin in this vertex; both vertices of valid edge must be valid as well; index is 4 * ( x + y * ( settings.dim.x + 1 ) ) + edgeType
new unsafe MR.BMap_MRFaceId_MRUint64T	faceIds [get, protected set]
	grid coordinates of lower-left vertex and triangle-type to faceId; all 3 vertices and all 3 edges of valid face must be valid as well; index is 2 * ( x + y * settings.dim.x ) + triType

Detailed Description

settings defining regular grid, where each quadrangular cell is split on two triangles in one of two ways Generated from class MR.GridSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

GridSettings() [1/3]

unsafe MR.GridSettings.GridSettings ( )

inline

Constructs an empty (default-constructed) instance.

GridSettings() [2/3]

unsafe MR.GridSettings.GridSettings ( MR.Vector2i dim, MR._ByValue_BMap_MRVertId_MRUint64T vertIds, MR._ByValue_BMap_MRUndirectedEdgeId_MRUint64T uedgeIds, MR._ByValue_BMap_MRFaceId_MRUint64T faceIds )

inline

Constructs MR.GridSettings elementwise.

GridSettings() [3/3]

unsafe MR.GridSettings.GridSettings ( MR._ByValue_GridSettings _other )

inline

Generated from constructor MR.GridSettings.GridSettings.

Member Function Documentation

assign()

unsafe MR.GridSettings MR.GridSettings.assign ( MR._ByValue_GridSettings _other )

inline

Generated from method MR::GridSettings::operator=.

Property Documentation

dim

new unsafe ref MR.Vector2i MR.GridSettings.dim

get

the number of cells in X and Y dimensions; the number of vertices will be at most (X+1)*(Y+1)

faceIds

new unsafe MR.BMap_MRFaceId_MRUint64T MR.GridSettings.faceIds

getprotected set

grid coordinates of lower-left vertex and triangle-type to faceId; all 3 vertices and all 3 edges of valid face must be valid as well; index is 2 * ( x + y * settings.dim.x ) + triType

uedgeIds

new unsafe MR.BMap_MRUndirectedEdgeId_MRUint64T MR.GridSettings.uedgeIds

getprotected set

grid coordinates of lower-left vertex and edge-type to edgeId with the origin in this vertex; both vertices of valid edge must be valid as well; index is 4 * ( x + y * ( settings.dim.x + 1 ) ) + edgeType

vertIds

new unsafe MR.BMap_MRVertId_MRUint64T MR.GridSettings.vertIds

getprotected set

grid coordinates to vertex Id; invalid vertex Id means that this vertex is missing in grid; index is x + y * ( settings.dim.x + 1 )

---

The documentation for this class was generated from the following file:

• MRGridSettings.cs
