MR.InSphereSearchSettings Class Reference

controls the finding of maximal inscribed sphere in mesh Generated from class MR.InSphereSearchSettings. This is the non-const half of the class. More...

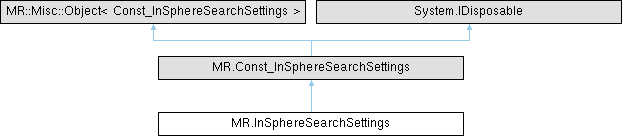

Inheritance diagram for MR.InSphereSearchSettings:

Public Member Functions
unsafe	InSphereSearchSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	InSphereSearchSettings (bool insideAndOutside, float maxRadius, int maxIters, float minShrinkage, float minAngleCos)
	Constructs MR.InSphereSearchSettings elementwise.
unsafe	InSphereSearchSettings (MR.Const_InSphereSearchSettings _other)
	Generated from constructor MR.InSphereSearchSettings.InSphereSearchSettings.
	InSphereSearchSettings (InSphereSearchSettings _other)
	Generated from constructor MR.InSphereSearchSettings.InSphereSearchSettings.
unsafe MR.InSphereSearchSettings	assign (MR.Const_InSphereSearchSettings _other)
	Generated from method MR::InSphereSearchSettings::operator=.

Properties
new unsafe ref bool	insideAndOutside [get]
	if false then searches for the maximal inscribed sphere in mesh; if true then searches for both a) maximal inscribed sphere, and b) maximal sphere outside the mesh touching it at two points; and returns the smaller of two, and if it is b) then with minus sign
new unsafe ref float	maxRadius [get]
	maximum allowed radius of the sphere; for almost closed meshes the article recommends maxRadius = 0.5f * std::min( { boxSize.x, boxSize.y, boxSize.z } )
new unsafe ref int	maxIters [get]
	maximum number of shrinking iterations for one triangle
new unsafe ref float	minShrinkage [get]
	iterations stop if next radius is larger than minShrinkage times previous radius
new unsafe ref float	minAngleCos [get]
	minimum cosine of the angle between two unit directions: 1) search unit direction (m.inDir), 2) unit direction from sphere's center to the other found touch point; -1 value means no filtering by this angle; the increase of this value helps avoiding too small spheres on noisy surfaces

Detailed Description

controls the finding of maximal inscribed sphere in mesh Generated from class MR.InSphereSearchSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

InSphereSearchSettings() [1/4]

unsafe MR.InSphereSearchSettings.InSphereSearchSettings ( )

inline

Constructs an empty (default-constructed) instance.

InSphereSearchSettings() [2/4]

unsafe MR.InSphereSearchSettings.InSphereSearchSettings ( bool insideAndOutside, float maxRadius, int maxIters, float minShrinkage, float minAngleCos )

inline

Constructs MR.InSphereSearchSettings elementwise.

InSphereSearchSettings() [3/4]

unsafe MR.InSphereSearchSettings.InSphereSearchSettings ( MR.Const_InSphereSearchSettings _other )

inline

Generated from constructor MR.InSphereSearchSettings.InSphereSearchSettings.

InSphereSearchSettings() [4/4]

MR.InSphereSearchSettings.InSphereSearchSettings ( InSphereSearchSettings _other )

inline

Generated from constructor MR.InSphereSearchSettings.InSphereSearchSettings.

Member Function Documentation

assign()

unsafe MR.InSphereSearchSettings MR.InSphereSearchSettings.assign ( MR.Const_InSphereSearchSettings _other )

inline

Generated from method MR::InSphereSearchSettings::operator=.

Property Documentation

insideAndOutside

new unsafe ref bool MR.InSphereSearchSettings.insideAndOutside

get

if false then searches for the maximal inscribed sphere in mesh; if true then searches for both a) maximal inscribed sphere, and b) maximal sphere outside the mesh touching it at two points; and returns the smaller of two, and if it is b) then with minus sign

maxIters

new unsafe ref int MR.InSphereSearchSettings.maxIters

get

maximum number of shrinking iterations for one triangle

maxRadius

new unsafe ref float MR.InSphereSearchSettings.maxRadius

get

maximum allowed radius of the sphere; for almost closed meshes the article recommends maxRadius = 0.5f * std::min( { boxSize.x, boxSize.y, boxSize.z } )

minAngleCos

new unsafe ref float MR.InSphereSearchSettings.minAngleCos

get

minimum cosine of the angle between two unit directions: 1) search unit direction (m.inDir), 2) unit direction from sphere's center to the other found touch point; -1 value means no filtering by this angle; the increase of this value helps avoiding too small spheres on noisy surfaces

minShrinkage

new unsafe ref float MR.InSphereSearchSettings.minShrinkage

get

iterations stop if next radius is larger than minShrinkage times previous radius

---

The documentation for this class was generated from the following file:

• MRMeshThickness.cs
