MR.MarchingCubesByParts Class Reference

converts volume split on parts by planes z=const into mesh, last z-layer of previous part must be repeated as first z-layer of next part usage: MarchingCubesByParts x( dims, params); x.addPart( part1 ); ... x.addPart( partN ); Mesh mesh = Mesh.fromTriMesh( *x.finalize() ); Generated from class MR.MarchingCubesByParts. This is the non-const half of the class. More...

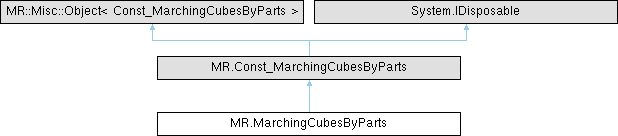

Inheritance diagram for MR.MarchingCubesByParts:

Public Member Functions
unsafe	MarchingCubesByParts (MR._ByValue_MarchingCubesByParts s)
	Generated from constructor MR.MarchingCubesByParts.MarchingCubesByParts.
unsafe	MarchingCubesByParts (in MR.Vector3i dims, MR.Const_MarchingCubesParams params_, int? layersPerBlock=null)
	prepares convention for given volume dimensions and given parameters
unsafe MR.MarchingCubesByParts	assign (MR._ByValue_MarchingCubesByParts s)
	Generated from method MR::MarchingCubesByParts::operator=.
unsafe void	addPart (MR.Const_SimpleVolume part)
	adds one more part of volume into consideration, with first z=nextZ() Generated from method MR.MarchingCubesByParts.addPart.
unsafe MR.TriMesh	finalize ()
	finishes processing and outputs produced trimesh Generated from method MR.MarchingCubesByParts.finalize.
Public Member Functions inherited from MR.Const_MarchingCubesByParts
virtual void	Dispose ()
unsafe	Const_MarchingCubesByParts (MR._ByValue_MarchingCubesByParts s)
	Generated from constructor MR.MarchingCubesByParts.MarchingCubesByParts.
unsafe	Const_MarchingCubesByParts (in MR.Vector3i dims, MR.Const_MarchingCubesParams params_, int? layersPerBlock=null)
	prepares convention for given volume dimensions and given parameters
unsafe int	layersPerBlock ()
	the number of z-slices of the volume in the blocks Generated from method MR.MarchingCubesByParts.layersPerBlock.
unsafe int	nextZ ()
	the last z-layer of the previous part and the first z-layer of the next part Generated from method MR.MarchingCubesByParts.nextZ.

Additional Inherited Members
Protected Member Functions inherited from MR.Const_MarchingCubesByParts
virtual unsafe void	Dispose (bool disposing)

Detailed Description

converts volume split on parts by planes z=const into mesh, last z-layer of previous part must be repeated as first z-layer of next part usage: MarchingCubesByParts x( dims, params); x.addPart( part1 ); ... x.addPart( partN ); Mesh mesh = Mesh.fromTriMesh( *x.finalize() ); Generated from class MR.MarchingCubesByParts. This is the non-const half of the class.

Constructor & Destructor Documentation

MarchingCubesByParts() [1/2]

unsafe MR.MarchingCubesByParts.MarchingCubesByParts ( MR._ByValue_MarchingCubesByParts s )

inline

Generated from constructor MR.MarchingCubesByParts.MarchingCubesByParts.

MarchingCubesByParts() [2/2]

unsafe MR.MarchingCubesByParts.MarchingCubesByParts ( in MR.Vector3i dims, MR.Const_MarchingCubesParams params_, int? layersPerBlock = null )

inline

prepares convention for given volume dimensions and given parameters

Parameters

layersPerBlock

all z-slices of the volume will be partitioned on blocks of given size to process blocks in parallel (0 means auto-select layersPerBlock) Generated from constructor MR.MarchingCubesByParts.MarchingCubesByParts. Parameter layersPerBlock defaults to 0.

Member Function Documentation

addPart()

unsafe void MR.MarchingCubesByParts.addPart ( MR.Const_SimpleVolume part )

inline

adds one more part of volume into consideration, with first z=nextZ() Generated from method MR.MarchingCubesByParts.addPart.

assign()

unsafe MR.MarchingCubesByParts MR.MarchingCubesByParts.assign ( MR._ByValue_MarchingCubesByParts s )

inline

Generated from method MR::MarchingCubesByParts::operator=.

finalize()

unsafe MR.TriMesh MR.MarchingCubesByParts.finalize ( )

inline

finishes processing and outputs produced trimesh Generated from method MR.MarchingCubesByParts.finalize.

---

The documentation for this class was generated from the following file:

• MRMarchingCubes.cs
