MR.Matrix4_UnsignedChar Class Reference

arbitrary 4x4 matrix Generated from class MR::Matrix4<unsigned char>. This is the non-const half of the class. More...

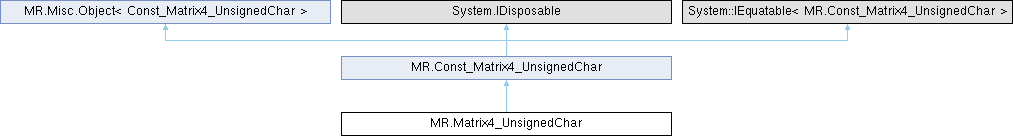

Inheritance diagram for MR.Matrix4_UnsignedChar:

Public Member Functions
unsafe	Matrix4_UnsignedChar ()
	Constructs an empty (default-constructed) instance.
unsafe	Matrix4_UnsignedChar (MR.Const_Matrix4_UnsignedChar _other)
	Generated from constructor MR::Matrix4<unsigned char>::Matrix4.
	Matrix4_UnsignedChar (Matrix4_UnsignedChar _other)
	Generated from constructor MR::Matrix4<unsigned char>::Matrix4.
unsafe	Matrix4_UnsignedChar (MR.Const_Vector4_UnsignedChar x, MR.Const_Vector4_UnsignedChar y, MR.Const_Vector4_UnsignedChar z, MR.Const_Vector4_UnsignedChar w)
	initializes matrix from 4 row-vectors Generated from constructor MR::Matrix4<unsigned char>::Matrix4.
unsafe	Matrix4_UnsignedChar (MR.Const_Matrix3_UnsignedChar r, MR.Const_Vector3_UnsignedChar t)
	construct from rotation matrix and translation vector Generated from constructor MR::Matrix4<unsigned char>::Matrix4.
unsafe MR.Matrix4_UnsignedChar	assign (MR.Const_Matrix4_UnsignedChar _other)
	Generated from method MR::Matrix4<unsigned char>::operator=.
unsafe new ref byte	call (int row, int col)
	Generated from method MR::Matrix4<unsigned char>::operator().
unsafe void	setRotation (MR.Const_Matrix3_UnsignedChar rot)
	Generated from method MR::Matrix4<unsigned char>setRotation.
unsafe void	setTranslation (MR.Const_Vector3_UnsignedChar t)
	Generated from method MR::Matrix4<unsigned char>setTranslation.
unsafe new MR.Misc.? Ref< byte >	data ()
	Generated from method MR::Matrix4&lt;unsigned char&gt;data.
unsafe MR.Matrix4_UnsignedChar	addAssign (MR.Const_Matrix4_UnsignedChar b)
	Generated from function MR::operator+=.
unsafe MR.Matrix4_UnsignedChar	subAssign (MR.Const_Matrix4_UnsignedChar b)
	Generated from function MR::operator-=.
unsafe MR.Matrix4_UnsignedChar	mulAssign (byte b)
	Generated from function MR::operator*=.
unsafe MR.Matrix4_UnsignedChar	divAssign (byte b)
	Generated from function MR::operator/=.
Public Member Functions inherited from MR.Const_Matrix4_UnsignedChar
virtual void	Dispose ()
unsafe	Const_Matrix4_UnsignedChar ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_Matrix4_UnsignedChar (MR.Const_Matrix4_UnsignedChar _other)
	Generated from constructor MR::Matrix4&lt;unsigned char&gt;::Matrix4.
	Const_Matrix4_UnsignedChar (Matrix4_UnsignedChar _other)
	Generated from constructor MR::Matrix4&lt;unsigned char&gt;::Matrix4.
unsafe	Const_Matrix4_UnsignedChar (MR.Const_Vector4_UnsignedChar x, MR.Const_Vector4_UnsignedChar y, MR.Const_Vector4_UnsignedChar z, MR.Const_Vector4_UnsignedChar w)
	initializes matrix from 4 row-vectors Generated from constructor MR::Matrix4&lt;unsigned char&gt;::Matrix4.
unsafe	Const_Matrix4_UnsignedChar (MR.Const_Matrix3_UnsignedChar r, MR.Const_Vector3_UnsignedChar t)
	construct from rotation matrix and translation vector Generated from constructor MR::Matrix4&lt;unsigned char&gt;::Matrix4.
unsafe byte	call (int row, int col)
	element access Generated from method MR::Matrix4&lt;unsigned char&gt;::operator().
unsafe MR.Vector4_UnsignedChar	col (int i)
	column access Generated from method MR::Matrix4&lt;unsigned char&gt;col.
unsafe byte	trace ()
	computes trace of the matrix Generated from method MR::Matrix4&lt;unsigned char&gt;trace.
unsafe byte	normSq ()
	compute sum of squared matrix elements Generated from method MR::Matrix4&lt;unsigned char&gt;normSq.
unsafe double	norm ()
	Generated from method MR::Matrix4&lt;unsigned char&gt;norm.
unsafe MR.Matrix3_UnsignedChar	submatrix3 (int i, int j)
	computes submatrix of the matrix with excluded i-th row and j-th column Generated from method MR::Matrix4&lt;unsigned char&gt;submatrix3.
unsafe byte	det ()
	computes determinant of the matrix Generated from method MR::Matrix4&lt;unsigned char&gt;det.
unsafe MR.Matrix4_UnsignedChar	transposed ()
	computes transposed matrix Generated from method MR::Matrix4&lt;unsigned char&gt;transposed.
unsafe MR.Matrix3_UnsignedChar	getRotation ()
	Generated from method MR::Matrix4&lt;unsigned char&gt;getRotation.
unsafe MR.Vector3_UnsignedChar	getTranslation ()
	Generated from method MR::Matrix4&lt;unsigned char&gt;getTranslation.
unsafe? byte	data ()
	Generated from method MR::Matrix4&lt;unsigned char&gt;data.
bool	Equals (MR.Const_Matrix4_UnsignedChar? b)
override bool	Equals (object? other)

Properties
new unsafe MR.Vector4_UnsignedChar	x [get, protected set]
	rows, identity matrix by default
new unsafe MR.Vector4_UnsignedChar	y [get, protected set]
new unsafe MR.Vector4_UnsignedChar	z [get, protected set]
new unsafe MR.Vector4_UnsignedChar	w [get, protected set]
unsafe new MR.Vector4_UnsignedChar	this[int row] [get]
	Generated from method MR::Matrix4<unsigned char>::operator[].
Properties inherited from MR.Const_Matrix4_UnsignedChar
unsafe MR.Const_Vector4_UnsignedChar	x [get, protected set]
	rows, identity matrix by default
unsafe MR.Const_Vector4_UnsignedChar	y [get, protected set]
unsafe MR.Const_Vector4_UnsignedChar	z [get, protected set]
unsafe MR.Const_Vector4_UnsignedChar	w [get, protected set]
unsafe MR.Const_Vector4_UnsignedChar	this[int row] [get]
	row access Generated from method MR::Matrix4<unsigned char>::operator[].

Additional Inherited Members
Static Public Member Functions inherited from MR.Const_Matrix4_UnsignedChar
static unsafe MR.Matrix4_UnsignedChar	zero ()
	Generated from method MR::Matrix4<unsigned char>zero.
static unsafe MR.Matrix4_UnsignedChar	identity ()
	Generated from method MR::Matrix4<unsigned char>identity.
static unsafe MR.Matrix4_UnsignedChar	scale (byte s)
	returns a matrix that scales uniformly Generated from method MR::Matrix4<unsigned char>scale.
static unsafe bool	operator== (MR.Const_Matrix4_UnsignedChar a, MR.Const_Matrix4_UnsignedChar b)
	Generated from function MR::operator==.
static unsafe bool	operator!= (MR.Const_Matrix4_UnsignedChar a, MR.Const_Matrix4_UnsignedChar b)
static unsafe MR.Matrix4i	operator+ (MR.Const_Matrix4_UnsignedChar a, MR.Const_Matrix4_UnsignedChar b)
	Generated from function MR::operator+.
static unsafe MR.Matrix4i	operator- (MR.Const_Matrix4_UnsignedChar a, MR.Const_Matrix4_UnsignedChar b)
	Generated from function MR::operator-.
static unsafe MR.Matrix4i	operator* (byte a, MR.Const_Matrix4_UnsignedChar b)
	Generated from function MR::operator*.
static unsafe MR.Matrix4i	operator* (MR.Const_Matrix4_UnsignedChar b, byte a)
	Generated from function MR::operator*.
static unsafe MR.Matrix4i	operator/ (Const_Matrix4_UnsignedChar b, byte a)
	Generated from function MR::operator/.
static unsafe MR.Vector4i	operator* (MR.Const_Matrix4_UnsignedChar a, MR.Const_Vector4_UnsignedChar b)
	x = a * b Generated from function MR::operator*.
static unsafe MR.Matrix4i	operator* (MR.Const_Matrix4_UnsignedChar a, MR.Const_Matrix4_UnsignedChar b)
	product of two matrices Generated from function MR::operator*.
Protected Member Functions inherited from MR.Const_Matrix4_UnsignedChar
virtual unsafe void	Dispose (bool disposing)

Detailed Description

arbitrary 4x4 matrix Generated from class MR::Matrix4<unsigned char>. This is the non-const half of the class.

Constructor & Destructor Documentation

Matrix4_UnsignedChar() [1/5]

unsafe MR.Matrix4_UnsignedChar.Matrix4_UnsignedChar ( )

inline

Constructs an empty (default-constructed) instance.

Matrix4_UnsignedChar() [2/5]

unsafe MR.Matrix4_UnsignedChar.Matrix4_UnsignedChar ( MR.Const_Matrix4_UnsignedChar _other )

inline

Generated from constructor MR::Matrix4<unsigned char>::Matrix4.

Matrix4_UnsignedChar() [3/5]

MR.Matrix4_UnsignedChar.Matrix4_UnsignedChar ( Matrix4_UnsignedChar _other )

inline

Generated from constructor MR::Matrix4<unsigned char>::Matrix4.

Matrix4_UnsignedChar() [4/5]

unsafe MR.Matrix4_UnsignedChar.Matrix4_UnsignedChar ( MR.Const_Vector4_UnsignedChar x, MR.Const_Vector4_UnsignedChar y, MR.Const_Vector4_UnsignedChar z, MR.Const_Vector4_UnsignedChar w )

inline

initializes matrix from 4 row-vectors Generated from constructor MR::Matrix4<unsigned char>::Matrix4.

Matrix4_UnsignedChar() [5/5]

unsafe MR.Matrix4_UnsignedChar.Matrix4_UnsignedChar ( MR.Const_Matrix3_UnsignedChar r, MR.Const_Vector3_UnsignedChar t )

inline

construct from rotation matrix and translation vector Generated from constructor MR::Matrix4<unsigned char>::Matrix4.

Member Function Documentation

addAssign()

unsafe MR.Matrix4_UnsignedChar MR.Matrix4_UnsignedChar.addAssign ( MR.Const_Matrix4_UnsignedChar b )

inline

Generated from function MR::operator+=.

assign()

unsafe MR.Matrix4_UnsignedChar MR.Matrix4_UnsignedChar.assign ( MR.Const_Matrix4_UnsignedChar _other )

inline

Generated from method MR::Matrix4<unsigned char>::operator=.

call()

unsafe new ref byte MR.Matrix4_UnsignedChar.call ( int row, int col )

inline

Generated from method MR::Matrix4<unsigned char>::operator().

data()

unsafe new MR.Misc.? Ref< byte > MR.Matrix4_UnsignedChar.data ( )

inline

Generated from method MR::Matrix4<unsigned char>data.

divAssign()

unsafe MR.Matrix4_UnsignedChar MR.Matrix4_UnsignedChar.divAssign ( byte b )

inline

Generated from function MR::operator/=.

mulAssign()

unsafe MR.Matrix4_UnsignedChar MR.Matrix4_UnsignedChar.mulAssign ( byte b )

inline

Generated from function MR::operator*=.

setRotation()

unsafe void MR.Matrix4_UnsignedChar.setRotation ( MR.Const_Matrix3_UnsignedChar rot )

inline

Generated from method MR::Matrix4<unsigned char>setRotation.

setTranslation()

unsafe void MR.Matrix4_UnsignedChar.setTranslation ( MR.Const_Vector3_UnsignedChar t )

inline

Generated from method MR::Matrix4<unsigned char>setTranslation.

subAssign()

unsafe MR.Matrix4_UnsignedChar MR.Matrix4_UnsignedChar.subAssign ( MR.Const_Matrix4_UnsignedChar b )

inline

Generated from function MR::operator-=.

Property Documentation

this[int row]

unsafe new MR.Vector4_UnsignedChar MR.Matrix4_UnsignedChar.this[int row]

get

Generated from method MR::Matrix4<unsigned char>::operator[].

w

new unsafe MR.Vector4_UnsignedChar MR.Matrix4_UnsignedChar.w

getprotected set

x

new unsafe MR.Vector4_UnsignedChar MR.Matrix4_UnsignedChar.x

getprotected set

rows, identity matrix by default

y

new unsafe MR.Vector4_UnsignedChar MR.Matrix4_UnsignedChar.y

getprotected set

z

new unsafe MR.Vector4_UnsignedChar MR.Matrix4_UnsignedChar.z

getprotected set

---

The documentation for this class was generated from the following file:

• MRMatrix4.cs
