MR.MeshComponents.LargeByAreaComponentsSettings Class Reference

Generated from class MR.MeshComponents.LargeByAreaComponentsSettings. This is the non-const half of the class. More...

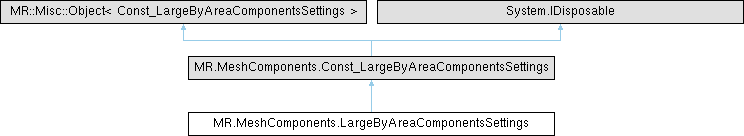

Inheritance diagram for MR.MeshComponents.LargeByAreaComponentsSettings:

Public Member Functions
unsafe	LargeByAreaComponentsSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	LargeByAreaComponentsSettings (int maxLargeComponents, MR.Misc.InOut< int >? numSmallerComponents, float minArea, MR.Const_UndirectedEdgeBitSet? isCompBd)
	Constructs MR.MeshComponents.LargeByAreaComponentsSettings elementwise.
unsafe	LargeByAreaComponentsSettings (MR.MeshComponents.Const_LargeByAreaComponentsSettings _other)
	Generated from constructor MR.MeshComponents.LargeByAreaComponentsSettings.LargeByAreaComponentsSettings.
	LargeByAreaComponentsSettings (LargeByAreaComponentsSettings _other)
	Generated from constructor MR.MeshComponents.LargeByAreaComponentsSettings.LargeByAreaComponentsSettings.
unsafe MR.MeshComponents.LargeByAreaComponentsSettings	assign (MR.MeshComponents.Const_LargeByAreaComponentsSettings _other)
	Generated from method MR.MeshComponents.LargeByAreaComponentsSettings.operator=.

Properties
new unsafe ref int	maxLargeComponents [get]
	return at most given number of largest by area connected components
new unsafe MR.Misc.? Box< int >	numSmallerComponents [get, set]
	optional output: the number of components in addition to returned ones
new unsafe ref float	minArea [get]
	do not consider a component large if its area is below this value
new unsafe MR.? Const_UndirectedEdgeBitSet	isCompBd [get, set]
	optional predicate of boundaries between components

Detailed Description

Generated from class MR.MeshComponents.LargeByAreaComponentsSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

LargeByAreaComponentsSettings() [1/4]

unsafe MR.MeshComponents.LargeByAreaComponentsSettings.LargeByAreaComponentsSettings ( )

inline

Constructs an empty (default-constructed) instance.

LargeByAreaComponentsSettings() [2/4]

unsafe MR.MeshComponents.LargeByAreaComponentsSettings.LargeByAreaComponentsSettings ( int maxLargeComponents, MR.Misc.InOut< int >? numSmallerComponents, float minArea, MR.Const_UndirectedEdgeBitSet? isCompBd )

inline

Constructs MR.MeshComponents.LargeByAreaComponentsSettings elementwise.

LargeByAreaComponentsSettings() [3/4]

unsafe MR.MeshComponents.LargeByAreaComponentsSettings.LargeByAreaComponentsSettings ( MR.MeshComponents.Const_LargeByAreaComponentsSettings _other )

inline

Generated from constructor MR.MeshComponents.LargeByAreaComponentsSettings.LargeByAreaComponentsSettings.

LargeByAreaComponentsSettings() [4/4]

MR.MeshComponents.LargeByAreaComponentsSettings.LargeByAreaComponentsSettings ( LargeByAreaComponentsSettings _other )

inline

Generated from constructor MR.MeshComponents.LargeByAreaComponentsSettings.LargeByAreaComponentsSettings.

Member Function Documentation

assign()

unsafe MR.MeshComponents.LargeByAreaComponentsSettings MR.MeshComponents.LargeByAreaComponentsSettings.assign ( MR.MeshComponents.Const_LargeByAreaComponentsSettings _other )

inline

Generated from method MR.MeshComponents.LargeByAreaComponentsSettings.operator=.

Property Documentation

isCompBd

new unsafe MR.? Const_UndirectedEdgeBitSet MR.MeshComponents.LargeByAreaComponentsSettings.isCompBd

getset

optional predicate of boundaries between components

maxLargeComponents

new unsafe ref int MR.MeshComponents.LargeByAreaComponentsSettings.maxLargeComponents

get

return at most given number of largest by area connected components

minArea

new unsafe ref float MR.MeshComponents.LargeByAreaComponentsSettings.minArea

get

do not consider a component large if its area is below this value

numSmallerComponents

new unsafe MR.Misc.? Box<int> MR.MeshComponents.LargeByAreaComponentsSettings.numSmallerComponents

getset

optional output: the number of components in addition to returned ones

---

The documentation for this class was generated from the following file:

• MRMeshComponents.cs
