MR.MeshProjectionResult Class Reference

Generated from class MR.MeshProjectionResult. This is the non-const half of the class. More...

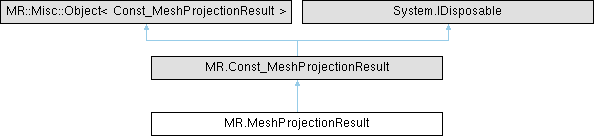

Inheritance diagram for MR.MeshProjectionResult:

Public Member Functions
unsafe	MeshProjectionResult ()
	Constructs an empty (default-constructed) instance.
unsafe	MeshProjectionResult (MR.Const_PointOnFace proj, MR.Const_MeshTriPoint mtp, float distSq)
	Constructs MR.MeshProjectionResult elementwise.
unsafe	MeshProjectionResult (MR.Const_MeshProjectionResult _other)
	Generated from constructor MR.MeshProjectionResult.MeshProjectionResult.
	MeshProjectionResult (MeshProjectionResult _other)
	Generated from constructor MR.MeshProjectionResult.MeshProjectionResult.
unsafe MR.MeshProjectionResult	assign (MR.Const_MeshProjectionResult _other)
	Generated from method MR::MeshProjectionResult::operator=.
Public Member Functions inherited from MR.Const_MeshProjectionResult
virtual void	Dispose ()
unsafe	Const_MeshProjectionResult ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_MeshProjectionResult (MR.Const_PointOnFace proj, MR.Const_MeshTriPoint mtp, float distSq)
	Constructs MR.MeshProjectionResult elementwise.
unsafe	Const_MeshProjectionResult (MR.Const_MeshProjectionResult _other)
	Generated from constructor MR.MeshProjectionResult.MeshProjectionResult.
	Const_MeshProjectionResult (MeshProjectionResult _other)
	Generated from constructor MR.MeshProjectionResult.MeshProjectionResult.
unsafe bool	valid ()
	check for validity, otherwise the projection was not found Generated from method MR.MeshProjectionResult.valid.

Properties
new unsafe MR.PointOnFace	proj [get, protected set]
	the closest point on mesh, transformed by xf if it is given
new unsafe MR.MeshTriPoint	mtp [get, protected set]
	its barycentric representation
new unsafe ref float	distSq [get]
	squared distance from original projected point to proj
Properties inherited from MR.Const_MeshProjectionResult
unsafe MR.Const_PointOnFace	proj [get, protected set]
	the closest point on mesh, transformed by xf if it is given
unsafe MR.Const_MeshTriPoint	mtp [get, protected set]
	its barycentric representation
unsafe float	distSq [get]
	squared distance from original projected point to proj

Additional Inherited Members
Static Public Member Functions inherited from MR.Const_MeshProjectionResult
static unsafe	operator bool (MR.Const_MeshProjectionResult _this)
	Generated from conversion operator MR::MeshProjectionResult::operator bool.
Protected Member Functions inherited from MR.Const_MeshProjectionResult
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_MeshProjectionResult
unsafe float *	__ref_storage_distSq

Detailed Description

Generated from class MR.MeshProjectionResult. This is the non-const half of the class.

Constructor & Destructor Documentation

MeshProjectionResult() [1/4]

unsafe MR.MeshProjectionResult.MeshProjectionResult ( )

inline

Constructs an empty (default-constructed) instance.

MeshProjectionResult() [2/4]

unsafe MR.MeshProjectionResult.MeshProjectionResult ( MR.Const_PointOnFace proj, MR.Const_MeshTriPoint mtp, float distSq )

inline

Constructs MR.MeshProjectionResult elementwise.

MeshProjectionResult() [3/4]

unsafe MR.MeshProjectionResult.MeshProjectionResult ( MR.Const_MeshProjectionResult _other )

inline

Generated from constructor MR.MeshProjectionResult.MeshProjectionResult.

MeshProjectionResult() [4/4]

MR.MeshProjectionResult.MeshProjectionResult ( MeshProjectionResult _other )

inline

Generated from constructor MR.MeshProjectionResult.MeshProjectionResult.

Member Function Documentation

assign()

unsafe MR.MeshProjectionResult MR.MeshProjectionResult.assign ( MR.Const_MeshProjectionResult _other )

inline

Generated from method MR::MeshProjectionResult::operator=.

Property Documentation

distSq

new unsafe ref float MR.MeshProjectionResult.distSq

get

squared distance from original projected point to proj

mtp

new unsafe MR.MeshTriPoint MR.MeshProjectionResult.mtp

getprotected set

its barycentric representation

proj

new unsafe MR.PointOnFace MR.MeshProjectionResult.proj

getprotected set

the closest point on mesh, transformed by xf if it is given

---

The documentation for this class was generated from the following file:

• MRMeshProject.cs
