MR.MoveMeshToVoxelMaxDerivSettings Class Reference

Generated from class MR.MoveMeshToVoxelMaxDerivSettings. This is the non-const half of the class. More...

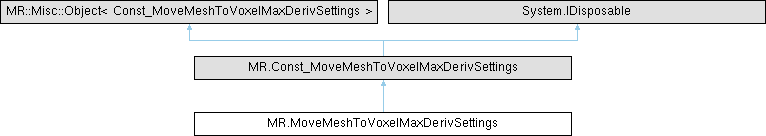

Inheritance diagram for MR.MoveMeshToVoxelMaxDerivSettings:

Public Member Functions
unsafe	MoveMeshToVoxelMaxDerivSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	MoveMeshToVoxelMaxDerivSettings (int iters, int samplePoints, int degree, float outlierThreshold, float intermediateSmoothForce, float preparationSmoothForce)
	Constructs MR.MoveMeshToVoxelMaxDerivSettings elementwise.
unsafe	MoveMeshToVoxelMaxDerivSettings (MR.Const_MoveMeshToVoxelMaxDerivSettings _other)
	Generated from constructor MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings.
	MoveMeshToVoxelMaxDerivSettings (MoveMeshToVoxelMaxDerivSettings _other)
	Generated from constructor MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings.
unsafe MR.MoveMeshToVoxelMaxDerivSettings	assign (MR.Const_MoveMeshToVoxelMaxDerivSettings _other)
	Generated from method MR::MoveMeshToVoxelMaxDerivSettings::operator=.
Public Member Functions inherited from MR.Const_MoveMeshToVoxelMaxDerivSettings
virtual void	Dispose ()
unsafe	Const_MoveMeshToVoxelMaxDerivSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_MoveMeshToVoxelMaxDerivSettings (int iters, int samplePoints, int degree, float outlierThreshold, float intermediateSmoothForce, float preparationSmoothForce)
	Constructs MR.MoveMeshToVoxelMaxDerivSettings elementwise.
unsafe	Const_MoveMeshToVoxelMaxDerivSettings (MR.Const_MoveMeshToVoxelMaxDerivSettings _other)
	Generated from constructor MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings.
	Const_MoveMeshToVoxelMaxDerivSettings (MoveMeshToVoxelMaxDerivSettings _other)
	Generated from constructor MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings.

Properties
new unsafe ref int	iters [get]
	number of iterations. Each iteration moves vertex only slightly and smooths the vector field of shifts.
new unsafe ref int	samplePoints [get]
	number of points to sample for each vertex. Samples are used to get the picewice-linear function of density and estimate the derivative based on it
new unsafe ref int	degree [get]
	degree of the polynomial used to fit sampled points. Must be in range [3; 6]
new unsafe ref float	outlierThreshold [get]
	for each iteration, if target position of the vertex is greater than this threshold, it is disregarded. For small degrees, this value should be small, for large degrees it may be larger. Measured in number of voxels.
new unsafe ref float	intermediateSmoothForce [get]
	force of the smoothing (relaxation) of vector field of shifts on each iteration
new unsafe ref float	preparationSmoothForce [get]
	force of initial smoothing of vertices, before applying the algorithm
Properties inherited from MR.Const_MoveMeshToVoxelMaxDerivSettings
unsafe int	iters [get]
	number of iterations. Each iteration moves vertex only slightly and smooths the vector field of shifts.
unsafe int	samplePoints [get]
	number of points to sample for each vertex. Samples are used to get the picewice-linear function of density and estimate the derivative based on it
unsafe int	degree [get]
	degree of the polynomial used to fit sampled points. Must be in range [3; 6]
unsafe float	outlierThreshold [get]
	for each iteration, if target position of the vertex is greater than this threshold, it is disregarded. For small degrees, this value should be small, for large degrees it may be larger. Measured in number of voxels.
unsafe float	intermediateSmoothForce [get]
	force of the smoothing (relaxation) of vector field of shifts on each iteration
unsafe float	preparationSmoothForce [get]
	force of initial smoothing of vertices, before applying the algorithm

Additional Inherited Members
Protected Member Functions inherited from MR.Const_MoveMeshToVoxelMaxDerivSettings
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_MoveMeshToVoxelMaxDerivSettings
unsafe int *	__ref_storage_iters
unsafe int *	__ref_storage_samplePoints
unsafe int *	__ref_storage_degree
unsafe float *	__ref_storage_outlierThreshold
unsafe float *	__ref_storage_intermediateSmoothForce
unsafe float *	__ref_storage_preparationSmoothForce

Detailed Description

Generated from class MR.MoveMeshToVoxelMaxDerivSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

MoveMeshToVoxelMaxDerivSettings() [1/4]

unsafe MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings ( )

inline

Constructs an empty (default-constructed) instance.

MoveMeshToVoxelMaxDerivSettings() [2/4]

unsafe MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings ( int iters, int samplePoints, int degree, float outlierThreshold, float intermediateSmoothForce, float preparationSmoothForce )

inline

Constructs MR.MoveMeshToVoxelMaxDerivSettings elementwise.

MoveMeshToVoxelMaxDerivSettings() [3/4]

unsafe MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings ( MR.Const_MoveMeshToVoxelMaxDerivSettings _other )

inline

Generated from constructor MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings.

MoveMeshToVoxelMaxDerivSettings() [4/4]

MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings ( MoveMeshToVoxelMaxDerivSettings _other )

inline

Generated from constructor MR.MoveMeshToVoxelMaxDerivSettings.MoveMeshToVoxelMaxDerivSettings.

Member Function Documentation

assign()

unsafe MR.MoveMeshToVoxelMaxDerivSettings MR.MoveMeshToVoxelMaxDerivSettings.assign ( MR.Const_MoveMeshToVoxelMaxDerivSettings _other )

inline

Generated from method MR::MoveMeshToVoxelMaxDerivSettings::operator=.

Property Documentation

degree

new unsafe ref int MR.MoveMeshToVoxelMaxDerivSettings.degree

get

degree of the polynomial used to fit sampled points. Must be in range [3; 6]

intermediateSmoothForce

new unsafe ref float MR.MoveMeshToVoxelMaxDerivSettings.intermediateSmoothForce

get

force of the smoothing (relaxation) of vector field of shifts on each iteration

iters

new unsafe ref int MR.MoveMeshToVoxelMaxDerivSettings.iters

get

number of iterations. Each iteration moves vertex only slightly and smooths the vector field of shifts.

outlierThreshold

new unsafe ref float MR.MoveMeshToVoxelMaxDerivSettings.outlierThreshold

get

for each iteration, if target position of the vertex is greater than this threshold, it is disregarded. For small degrees, this value should be small, for large degrees it may be larger. Measured in number of voxels.

preparationSmoothForce

new unsafe ref float MR.MoveMeshToVoxelMaxDerivSettings.preparationSmoothForce

get

force of initial smoothing of vertices, before applying the algorithm

samplePoints

new unsafe ref int MR.MoveMeshToVoxelMaxDerivSettings.samplePoints

get

number of points to sample for each vertex. Samples are used to get the picewice-linear function of density and estimate the derivative based on it

---

The documentation for this class was generated from the following file:

• MRMoveMeshToVoxelMaxDeriv.cs
