MR.NormalsToPoints Class Reference

The purpose of this class is to update vertex positions given target triangle normals; see the article "Static/Dynamic Filtering for Mesh Geometry" Generated from class MR.NormalsToPoints. This is the non-const half of the class. More...

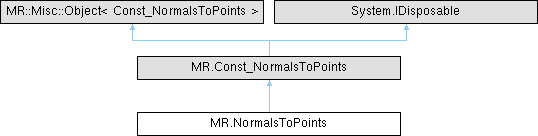

Inheritance diagram for MR.NormalsToPoints:

Public Member Functions
unsafe	NormalsToPoints ()
	Constructs an empty (default-constructed) instance.
unsafe	NormalsToPoints (MR._ByValue_NormalsToPoints _other)
	Generated from constructor MR.NormalsToPoints.NormalsToPoints.
unsafe MR.NormalsToPoints	assign (MR._ByValue_NormalsToPoints _other)
	Generated from method MR::NormalsToPoints::operator=.
unsafe void	prepare (MR.Const_MeshTopology topology, float? guideWeight=null)
	builds linear system and prepares a solver for it; please call it only once for mesh, and then run as many times as you like
unsafe void	run (MR.Const_VertCoords guide, MR.Const_FaceNormals normals, MR.VertCoords points)
	performs one iteration consisting of projection of all triangles on planes with given normals and finding best points from them
unsafe void	run (MR.Const_VertCoords guide, MR.Const_FaceNormals normals, MR.VertCoords points, float maxInitialDistSq)
	Generated from method MR.NormalsToPoints.run.
Public Member Functions inherited from MR.Const_NormalsToPoints
virtual void	Dispose ()
unsafe	Const_NormalsToPoints ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_NormalsToPoints (MR._ByValue_NormalsToPoints _other)
	Generated from constructor MR.NormalsToPoints.NormalsToPoints.

Additional Inherited Members
Protected Member Functions inherited from MR.Const_NormalsToPoints
virtual unsafe void	Dispose (bool disposing)

Detailed Description

The purpose of this class is to update vertex positions given target triangle normals; see the article "Static/Dynamic Filtering for Mesh Geometry" Generated from class MR.NormalsToPoints. This is the non-const half of the class.

Constructor & Destructor Documentation

NormalsToPoints() [1/2]

unsafe MR.NormalsToPoints.NormalsToPoints ( )

inline

Constructs an empty (default-constructed) instance.

NormalsToPoints() [2/2]

unsafe MR.NormalsToPoints.NormalsToPoints ( MR._ByValue_NormalsToPoints _other )

inline

Generated from constructor MR.NormalsToPoints.NormalsToPoints.

Member Function Documentation

assign()

unsafe MR.NormalsToPoints MR.NormalsToPoints.assign ( MR._ByValue_NormalsToPoints _other )

inline

Generated from method MR::NormalsToPoints::operator=.

prepare()

unsafe void MR.NormalsToPoints.prepare ( MR.Const_MeshTopology topology, float? guideWeight = null )

inline

builds linear system and prepares a solver for it; please call it only once for mesh, and then run as many times as you like

Parameters

guideWeight

how much resulting points must be attracted to initial points, must be > 0 Generated from method MR.NormalsToPoints.prepare. Parameter guideWeight defaults to 1.

run() [1/2]

unsafe void MR.NormalsToPoints.run ( MR.Const_VertCoords guide, MR.Const_FaceNormals normals, MR.VertCoords points )

inline

performs one iteration consisting of projection of all triangles on planes with given normals and finding best points from them

Parameters

guide	target vertex positions to avoid under-determined system
normals	target face normals
points	initial approximation on input, updated approximation on output
maxInitialDistSq	the maximum squared distance between a point and its position in (guide) Generated from method MR.NormalsToPoints.run.

run() [2/2]

unsafe void MR.NormalsToPoints.run ( MR.Const_VertCoords guide, MR.Const_FaceNormals normals, MR.VertCoords points, float maxInitialDistSq )

inline

Generated from method MR.NormalsToPoints.run.

---

The documentation for this class was generated from the following file:

• MRNormalsToPoints.cs
