MR.ObjectMeshData Class Reference

mesh and its per-element attributes for ObjectMeshHolder Generated from class MR.ObjectMeshData. Derived classes: Direct: (non-virtual) MR.LoadedMeshData This is the non-const half of the class. More...

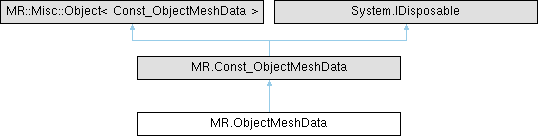

Inheritance diagram for MR.ObjectMeshData:

Public Member Functions
unsafe	ObjectMeshData ()
	Constructs an empty (default-constructed) instance.
unsafe	ObjectMeshData (MR.Std._ByValue_SharedPtr_MRMesh mesh, MR._ByValue_FaceBitSet selectedFaces, MR._ByValue_UndirectedEdgeBitSet selectedEdges, MR._ByValue_UndirectedEdgeBitSet creases, MR._ByValue_VertColors vertColors, MR._ByValue_FaceColors faceColors, MR._ByValue_VertCoords2 uvCoordinates, MR._ByValue_TexturePerFace texturePerFace)
	Constructs MR.ObjectMeshData elementwise.
unsafe	ObjectMeshData (MR._ByValue_ObjectMeshData _other)
	Generated from constructor MR.ObjectMeshData.ObjectMeshData.
	ObjectMeshData (Const_ObjectMeshData _other)
	Generated from constructor MR.ObjectMeshData.ObjectMeshData.
	ObjectMeshData (ObjectMeshData _other)
	Generated from constructor MR.ObjectMeshData.ObjectMeshData.
unsafe MR.ObjectMeshData	assign (MR._ByValue_ObjectMeshData _other)
	Generated from method MR::ObjectMeshData::operator=.
Public Member Functions inherited from MR.Const_ObjectMeshData
virtual void	Dispose ()
unsafe	Const_ObjectMeshData ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_ObjectMeshData (MR.Std._ByValue_SharedPtr_MRMesh mesh, MR._ByValue_FaceBitSet selectedFaces, MR._ByValue_UndirectedEdgeBitSet selectedEdges, MR._ByValue_UndirectedEdgeBitSet creases, MR._ByValue_VertColors vertColors, MR._ByValue_FaceColors faceColors, MR._ByValue_VertCoords2 uvCoordinates, MR._ByValue_TexturePerFace texturePerFace)
	Constructs MR.ObjectMeshData elementwise.
unsafe	Const_ObjectMeshData (MR._ByValue_ObjectMeshData _other)
	Generated from constructor MR.ObjectMeshData.ObjectMeshData.
	Const_ObjectMeshData (Const_ObjectMeshData _other)
	Generated from constructor MR.ObjectMeshData.ObjectMeshData.
	Const_ObjectMeshData (ObjectMeshData _other)
	Generated from constructor MR.ObjectMeshData.ObjectMeshData.
unsafe MR.ObjectMeshData	clone ()
	returns copy of this object with mesh cloned Generated from method MR.ObjectMeshData.clone.
unsafe ulong	heapBytes ()
	returns the amount of memory this object occupies on heap Generated from method MR.ObjectMeshData.heapBytes.

Properties
new unsafe MR.Std.SharedPtr_MRMesh	mesh [get, protected set]
new unsafe MR.FaceBitSet	selectedFaces [get, protected set]
new unsafe MR.UndirectedEdgeBitSet	selectedEdges [get, protected set]
new unsafe MR.UndirectedEdgeBitSet	creases [get, protected set]
new unsafe MR.VertColors	vertColors [get, protected set]
new unsafe MR.FaceColors	faceColors [get, protected set]
new unsafe MR.VertCoords2	uvCoordinates [get, protected set]
	vertices coordinates in texture
new unsafe MR.TexturePerFace	texturePerFace [get, protected set]
Properties inherited from MR.Const_ObjectMeshData
unsafe MR.Std.Const_SharedPtr_MRMesh	mesh [get, protected set]
unsafe MR.Const_FaceBitSet	selectedFaces [get, protected set]
unsafe MR.Const_UndirectedEdgeBitSet	selectedEdges [get, protected set]
unsafe MR.Const_UndirectedEdgeBitSet	creases [get, protected set]
unsafe MR.Const_VertColors	vertColors [get, protected set]
unsafe MR.Const_FaceColors	faceColors [get, protected set]
unsafe MR.Const_VertCoords2	uvCoordinates [get, protected set]
	vertices coordinates in texture
unsafe MR.Const_TexturePerFace	texturePerFace [get, protected set]

Additional Inherited Members
Protected Member Functions inherited from MR.Const_ObjectMeshData
virtual unsafe void	Dispose (bool disposing)

Detailed Description

mesh and its per-element attributes for ObjectMeshHolder Generated from class MR.ObjectMeshData. Derived classes: Direct: (non-virtual) MR.LoadedMeshData This is the non-const half of the class.

Constructor & Destructor Documentation

ObjectMeshData() [1/5]

unsafe MR.ObjectMeshData.ObjectMeshData ( )

inline

Constructs an empty (default-constructed) instance.

ObjectMeshData() [2/5]

unsafe MR.ObjectMeshData.ObjectMeshData ( MR.Std._ByValue_SharedPtr_MRMesh mesh, MR._ByValue_FaceBitSet selectedFaces, MR._ByValue_UndirectedEdgeBitSet selectedEdges, MR._ByValue_UndirectedEdgeBitSet creases, MR._ByValue_VertColors vertColors, MR._ByValue_FaceColors faceColors, MR._ByValue_VertCoords2 uvCoordinates, MR._ByValue_TexturePerFace texturePerFace )

inline

Constructs MR.ObjectMeshData elementwise.

ObjectMeshData() [3/5]

unsafe MR.ObjectMeshData.ObjectMeshData ( MR._ByValue_ObjectMeshData _other )

inline

Generated from constructor MR.ObjectMeshData.ObjectMeshData.

ObjectMeshData() [4/5]

MR.ObjectMeshData.ObjectMeshData ( Const_ObjectMeshData _other )

inline

Generated from constructor MR.ObjectMeshData.ObjectMeshData.

ObjectMeshData() [5/5]

MR.ObjectMeshData.ObjectMeshData ( ObjectMeshData _other )

inline

Generated from constructor MR.ObjectMeshData.ObjectMeshData.

Member Function Documentation

assign()

unsafe MR.ObjectMeshData MR.ObjectMeshData.assign ( MR._ByValue_ObjectMeshData _other )

inline

Generated from method MR::ObjectMeshData::operator=.

Property Documentation

creases

new unsafe MR.UndirectedEdgeBitSet MR.ObjectMeshData.creases

getprotected set

faceColors

new unsafe MR.FaceColors MR.ObjectMeshData.faceColors

getprotected set

mesh

new unsafe MR.Std.SharedPtr_MRMesh MR.ObjectMeshData.mesh

getprotected set

selectedEdges

new unsafe MR.UndirectedEdgeBitSet MR.ObjectMeshData.selectedEdges

getprotected set

selectedFaces

new unsafe MR.FaceBitSet MR.ObjectMeshData.selectedFaces

getprotected set

texturePerFace

new unsafe MR.TexturePerFace MR.ObjectMeshData.texturePerFace

getprotected set

uvCoordinates

new unsafe MR.VertCoords2 MR.ObjectMeshData.uvCoordinates

getprotected set

vertices coordinates in texture

vertColors

new unsafe MR.VertColors MR.ObjectMeshData.vertColors

getprotected set

---

The documentation for this class was generated from the following file:

• MRObjectMeshData.cs
