MR.Plane3f Class Reference

3-dimensional plane: dot(n,x) - d = 0 Generated from class MR.Plane3f. This is the non-const half of the class. More...

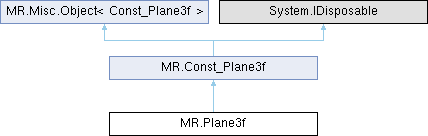

Inheritance diagram for MR.Plane3f:

Public Member Functions
unsafe	Plane3f ()
	Constructs an empty (default-constructed) instance.
unsafe	Plane3f (MR.Const_Plane3f _other)
	Generated from constructor MR.Plane3f.Plane3f.
	Plane3f (Plane3f _other)
	Generated from constructor MR.Plane3f.Plane3f.
unsafe	Plane3f (in MR.Vector3f n, float d)
	Generated from constructor MR.Plane3f.Plane3f.
unsafe	Plane3f (MR.Const_Plane3d p)
	Generated from constructor MR.Plane3f.Plane3f.
unsafe MR.Plane3f	assign (MR.Const_Plane3f _other)
	Generated from method MR::Plane3f::operator=.
Public Member Functions inherited from MR.Const_Plane3f
virtual void	Dispose ()
unsafe	Const_Plane3f ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_Plane3f (MR.Const_Plane3f _other)
	Generated from constructor MR.Plane3f.Plane3f.
	Const_Plane3f (Plane3f _other)
	Generated from constructor MR.Plane3f.Plane3f.
unsafe	Const_Plane3f (in MR.Vector3f n, float d)
	Generated from constructor MR.Plane3f.Plane3f.
unsafe	Const_Plane3f (MR.Const_Plane3d p)
	Generated from constructor MR.Plane3f.Plane3f.
unsafe float	distance (in MR.Vector3f x)
	returns distance from given point to this plane (if n is a unit vector) Generated from method MR.Plane3f.distance.
unsafe MR.Plane3f	normalized ()
	returns same plane represented with unit n-vector Generated from method MR.Plane3f.normalized.
unsafe MR.Vector3f	project (in MR.Vector3f p)
	finds the closest point on plane Generated from method MR.Plane3f.project.

Properties
new unsafe ref MR.Vector3f	n [get]
new unsafe ref float	d [get]
Properties inherited from MR.Const_Plane3f
unsafe ref readonly MR.Vector3f	n [get]
unsafe float	d [get]

Additional Inherited Members
Static Public Member Functions inherited from MR.Const_Plane3f
static unsafe MR.Plane3f	fromDirAndPt (in MR.Vector3f n, in MR.Vector3f p)
	Generated from method MR.Plane3f.fromDirAndPt.
static unsafe MR.Plane3f	operator- (MR.Const_Plane3f _this)
	returns same plane represented with flipped direction of n-vector Generated from method MR::Plane3f::operator-.
static unsafe MR.Const_Plane3f	operator+ (MR.Const_Plane3f _this)
	returns same representation Generated from method MR::Plane3f::operator+.
Protected Member Functions inherited from MR.Const_Plane3f
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_Plane3f
unsafe MR.Vector3f *	__ref_storage_n
unsafe float *	__ref_storage_d

Detailed Description

3-dimensional plane: dot(n,x) - d = 0 Generated from class MR.Plane3f. This is the non-const half of the class.

Constructor & Destructor Documentation

Plane3f() [1/5]

unsafe MR.Plane3f.Plane3f ( )

inline

Constructs an empty (default-constructed) instance.

Plane3f() [2/5]

unsafe MR.Plane3f.Plane3f ( MR.Const_Plane3f _other )

inline

Generated from constructor MR.Plane3f.Plane3f.

Plane3f() [3/5]

MR.Plane3f.Plane3f ( Plane3f _other )

inline

Generated from constructor MR.Plane3f.Plane3f.

Plane3f() [4/5]

unsafe MR.Plane3f.Plane3f ( in MR.Vector3f n, float d )

inline

Generated from constructor MR.Plane3f.Plane3f.

Plane3f() [5/5]

unsafe MR.Plane3f.Plane3f ( MR.Const_Plane3d p )

inline

Generated from constructor MR.Plane3f.Plane3f.

Member Function Documentation

assign()

unsafe MR.Plane3f MR.Plane3f.assign ( MR.Const_Plane3f _other )

inline

Generated from method MR::Plane3f::operator=.

Property Documentation

d

new unsafe ref float MR.Plane3f.d

get

n

new unsafe ref MR.Vector3f MR.Plane3f.n

get

---

The documentation for this class was generated from the following file:

• MRPlane3.cs
