Generated from class MR.PointsToDistanceVolumeParams. Base classes: Direct: (non-virtual) MR.DistanceVolumeParams This is the non-const half of the class. More...

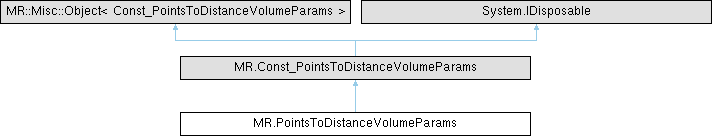

Inheritance diagram for MR.PointsToDistanceVolumeParams:

Public Member Functions
unsafe	PointsToDistanceVolumeParams ()
	Constructs an empty (default-constructed) instance.
unsafe	PointsToDistanceVolumeParams (MR._ByValue_PointsToDistanceVolumeParams _other)
	Generated from constructor MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams.
	PointsToDistanceVolumeParams (Const_PointsToDistanceVolumeParams _other)
	Generated from constructor MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams.
	PointsToDistanceVolumeParams (PointsToDistanceVolumeParams _other)
	Generated from constructor MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams.
unsafe MR.PointsToDistanceVolumeParams	assign (MR._ByValue_PointsToDistanceVolumeParams _other)
	Generated from method MR::PointsToDistanceVolumeParams::operator=.
Public Member Functions inherited from MR.Const_PointsToDistanceVolumeParams
virtual void	Dispose ()
unsafe	Const_PointsToDistanceVolumeParams ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_PointsToDistanceVolumeParams (MR._ByValue_PointsToDistanceVolumeParams _other)
	Generated from constructor MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams.
	Const_PointsToDistanceVolumeParams (Const_PointsToDistanceVolumeParams _other)
	Generated from constructor MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams.
	Const_PointsToDistanceVolumeParams (PointsToDistanceVolumeParams _other)
	Generated from constructor MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams.

Static Public Member Functions
static unsafe implicit	operator MR.DistanceVolumeParams (PointsToDistanceVolumeParams self)
Static Public Member Functions inherited from MR.Const_PointsToDistanceVolumeParams
static unsafe implicit	operator MR.Const_DistanceVolumeParams (Const_PointsToDistanceVolumeParams self)

Properties
new unsafe ref float	sigma `[get]`
	it the distance of highest influence of a point; the maximal influence distance is 3*sigma; beyond that distance the influence is strictly zero
new unsafe ref float	minWeight `[get]`
	minimum sum of influence weights from surrounding points for a voxel to get a value, meaning that there shall be at least this number of points in close proximity
new unsafe ref float	invSigmaModifier `[get]`
	coefficient used for weight calculation: e^(dist^2 * -invSigmaModifier * sigma^-2) values: (0;inf)
new unsafe ref bool	sqrtAngleWeight `[get]`
	changes the way point angle affects weight, by default it is linearly increasing with dot product if enabled - increasing as dot product^(0.5) (with respect to its sign)
new unsafe MR.? Const_VertCoords	ptNormals `[get, set]`
	optional input: if this pointer is set then function will use these normals instead of ones present in cloud
new unsafe ref MR.Vector3f	origin `[get]`
	origin point of voxels box
new unsafe MR.Std.Function_Bool_From_Float	cb `[get, protected set]`
	progress callback
new unsafe ref MR.Vector3f	voxelSize `[get]`
	size of voxel on each axis
new unsafe ref MR.Vector3i	dimensions `[get]`
	num voxels along each axis
Properties inherited from MR.Const_PointsToDistanceVolumeParams
unsafe float	sigma `[get]`
	it the distance of highest influence of a point; the maximal influence distance is 3*sigma; beyond that distance the influence is strictly zero
unsafe float	minWeight `[get]`
	minimum sum of influence weights from surrounding points for a voxel to get a value, meaning that there shall be at least this number of points in close proximity
unsafe float	invSigmaModifier `[get]`
	coefficient used for weight calculation: e^(dist^2 * -invSigmaModifier * sigma^-2) values: (0;inf)
unsafe bool	sqrtAngleWeight `[get]`
	changes the way point angle affects weight, by default it is linearly increasing with dot product if enabled - increasing as dot product^(0.5) (with respect to its sign)
unsafe MR.? Const_VertCoords	ptNormals `[get]`
	optional input: if this pointer is set then function will use these normals instead of ones present in cloud
unsafe ref readonly MR.Vector3f	origin `[get]`
	origin point of voxels box
unsafe MR.Std.Const_Function_Bool_From_Float	cb `[get, protected set]`
	progress callback
unsafe ref readonly MR.Vector3f	voxelSize `[get]`
	size of voxel on each axis
unsafe ref readonly MR.Vector3i	dimensions `[get]`
	num voxels along each axis

Additional Inherited Members
Protected Member Functions inherited from MR.Const_PointsToDistanceVolumeParams
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_PointsToDistanceVolumeParams
unsafe float *	__ref_storage_sigma
unsafe float *	__ref_storage_minWeight
unsafe float *	__ref_storage_invSigmaModifier
unsafe bool *	__ref_storage_sqrtAngleWeight
unsafe MR.Const_VertCoords._Underlying **	__ptr_storage_ptNormals
unsafe MR.Vector3f *	__ref_storage_origin
unsafe MR.Vector3f *	__ref_storage_voxelSize
unsafe MR.Vector3i *	__ref_storage_dimensions

Detailed Description

Generated from class MR.PointsToDistanceVolumeParams. Base classes: Direct: (non-virtual) MR.DistanceVolumeParams This is the non-const half of the class.

Constructor & Destructor Documentation

◆ PointsToDistanceVolumeParams() [1/4]

unsafe MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams ( )

inline

Constructs an empty (default-constructed) instance.

◆ PointsToDistanceVolumeParams() [2/4]

unsafe MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams ( MR._ByValue_PointsToDistanceVolumeParams _other )

inline

Generated from constructor MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams.

◆ PointsToDistanceVolumeParams() [3/4]

MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams ( Const_PointsToDistanceVolumeParams _other )

inline

Generated from constructor MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams.

◆ PointsToDistanceVolumeParams() [4/4]

MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams ( PointsToDistanceVolumeParams _other )

inline

Generated from constructor MR.PointsToDistanceVolumeParams.PointsToDistanceVolumeParams.

Member Function Documentation

◆ assign()

unsafe MR.PointsToDistanceVolumeParams MR.PointsToDistanceVolumeParams.assign ( MR._ByValue_PointsToDistanceVolumeParams _other )

inline

Generated from method MR::PointsToDistanceVolumeParams::operator=.

◆ operator MR.DistanceVolumeParams()

unsafe implicit MR.PointsToDistanceVolumeParams.operator MR.DistanceVolumeParams ( PointsToDistanceVolumeParams self )

inlinestatic

Property Documentation

◆ cb

new unsafe MR.Std.Function_Bool_From_Float MR.PointsToDistanceVolumeParams.cb

getprotected set

progress callback

◆ dimensions

new unsafe ref MR.Vector3i MR.PointsToDistanceVolumeParams.dimensions

get

num voxels along each axis

◆ invSigmaModifier

new unsafe ref float MR.PointsToDistanceVolumeParams.invSigmaModifier

get

coefficient used for weight calculation: e^(dist^2 * -invSigmaModifier * sigma^-2) values: (0;inf)

◆ minWeight

new unsafe ref float MR.PointsToDistanceVolumeParams.minWeight

get

minimum sum of influence weights from surrounding points for a voxel to get a value, meaning that there shall be at least this number of points in close proximity

◆ origin

new unsafe ref MR.Vector3f MR.PointsToDistanceVolumeParams.origin

get

origin point of voxels box

◆ ptNormals

new unsafe MR.? Const_VertCoords MR.PointsToDistanceVolumeParams.ptNormals

getset

optional input: if this pointer is set then function will use these normals instead of ones present in cloud

◆ sigma

new unsafe ref float MR.PointsToDistanceVolumeParams.sigma

get

it the distance of highest influence of a point; the maximal influence distance is 3*sigma; beyond that distance the influence is strictly zero

◆ sqrtAngleWeight

new unsafe ref bool MR.PointsToDistanceVolumeParams.sqrtAngleWeight

get

changes the way point angle affects weight, by default it is linearly increasing with dot product if enabled - increasing as dot product^(0.5) (with respect to its sign)

◆ voxelSize

new unsafe ref MR.Vector3f MR.PointsToDistanceVolumeParams.voxelSize

get

size of voxel on each axis

The documentation for this class was generated from the following file:

MRPointsToDistanceVolume.cs
