MR.PolylineSubdivideSettings Class Reference

Generated from class MR.PolylineSubdivideSettings. This is the non-const half of the class. More...

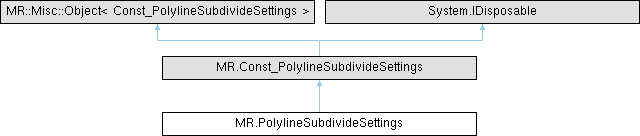

Inheritance diagram for MR.PolylineSubdivideSettings:

Public Member Functions
unsafe	PolylineSubdivideSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	PolylineSubdivideSettings (float maxEdgeLen, int maxEdgeSplits, MR.VertBitSet? region, MR.VertBitSet? newVerts, bool useCurvature, MR.Std._ByValue_Function_VoidFuncFromMRVertId onVertCreated, MR.Std._ByValue_Function_VoidFuncFromMREdgeIdMREdgeId onEdgeSplit, MR.Std._ByValue_Function_BoolFuncFromFloat progressCallback)
	Constructs MR.PolylineSubdivideSettings elementwise.
unsafe	PolylineSubdivideSettings (MR._ByValue_PolylineSubdivideSettings _other)
	Generated from constructor MR.PolylineSubdivideSettings.PolylineSubdivideSettings.
	PolylineSubdivideSettings (Const_PolylineSubdivideSettings _other)
	Generated from constructor MR.PolylineSubdivideSettings.PolylineSubdivideSettings.
	PolylineSubdivideSettings (PolylineSubdivideSettings _other)
	Generated from constructor MR.PolylineSubdivideSettings.PolylineSubdivideSettings.
unsafe MR.PolylineSubdivideSettings	assign (MR._ByValue_PolylineSubdivideSettings _other)
	Generated from method MR.PolylineSubdivideSettings.operator=.

Properties
new unsafe ref float	maxEdgeLen [get]
	Subdivision is stopped when all edges are not longer than this value.
new unsafe ref int	maxEdgeSplits [get]
	Maximum number of edge splits allowed.
new unsafe MR.? VertBitSet	region [get, set]
new unsafe MR.? VertBitSet	newVerts [get, set]
	New vertices appeared during subdivision will be added here.
new unsafe ref bool	useCurvature [get]
new unsafe MR.Std.Function_VoidFuncFromMRVertId	onVertCreated [get, protected set]
	this function is called each time a new vertex has been created
new unsafe MR.Std.Function_VoidFuncFromMREdgeIdMREdgeId	onEdgeSplit [get, protected set]
	this function is called each time edge (e) is split into (e1->e)
new unsafe MR.Std.Function_BoolFuncFromFloat	progressCallback [get, protected set]
	callback to report algorithm progress and cancel it by user request

Detailed Description

Generated from class MR.PolylineSubdivideSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

PolylineSubdivideSettings() [1/5]

unsafe MR.PolylineSubdivideSettings.PolylineSubdivideSettings ( )

inline

Constructs an empty (default-constructed) instance.

PolylineSubdivideSettings() [2/5]

unsafe MR.PolylineSubdivideSettings.PolylineSubdivideSettings ( float maxEdgeLen, int maxEdgeSplits, MR.VertBitSet? region, MR.VertBitSet? newVerts, bool useCurvature, MR.Std._ByValue_Function_VoidFuncFromMRVertId onVertCreated, MR.Std._ByValue_Function_VoidFuncFromMREdgeIdMREdgeId onEdgeSplit, MR.Std._ByValue_Function_BoolFuncFromFloat progressCallback )

inline

Constructs MR.PolylineSubdivideSettings elementwise.

PolylineSubdivideSettings() [3/5]

unsafe MR.PolylineSubdivideSettings.PolylineSubdivideSettings ( MR._ByValue_PolylineSubdivideSettings _other )

inline

Generated from constructor MR.PolylineSubdivideSettings.PolylineSubdivideSettings.

PolylineSubdivideSettings() [4/5]

MR.PolylineSubdivideSettings.PolylineSubdivideSettings ( Const_PolylineSubdivideSettings _other )

inline

Generated from constructor MR.PolylineSubdivideSettings.PolylineSubdivideSettings.

PolylineSubdivideSettings() [5/5]

MR.PolylineSubdivideSettings.PolylineSubdivideSettings ( PolylineSubdivideSettings _other )

inline

Generated from constructor MR.PolylineSubdivideSettings.PolylineSubdivideSettings.

Member Function Documentation

assign()

unsafe MR.PolylineSubdivideSettings MR.PolylineSubdivideSettings.assign ( MR._ByValue_PolylineSubdivideSettings _other )

inline

Generated from method MR.PolylineSubdivideSettings.operator=.

Property Documentation

maxEdgeLen

new unsafe ref float MR.PolylineSubdivideSettings.maxEdgeLen

get

Subdivision is stopped when all edges are not longer than this value.

maxEdgeSplits

new unsafe ref int MR.PolylineSubdivideSettings.maxEdgeSplits

get

Maximum number of edge splits allowed.

newVerts

new unsafe MR.? VertBitSet MR.PolylineSubdivideSettings.newVerts

getset

New vertices appeared during subdivision will be added here.

onEdgeSplit

new unsafe MR.Std.Function_VoidFuncFromMREdgeIdMREdgeId MR.PolylineSubdivideSettings.onEdgeSplit

getprotected set

this function is called each time edge (e) is split into (e1->e)

onVertCreated

new unsafe MR.Std.Function_VoidFuncFromMRVertId MR.PolylineSubdivideSettings.onVertCreated

getprotected set

this function is called each time a new vertex has been created

progressCallback

new unsafe MR.Std.Function_BoolFuncFromFloat MR.PolylineSubdivideSettings.progressCallback

getprotected set

callback to report algorithm progress and cancel it by user request

region

new unsafe MR.? VertBitSet MR.PolylineSubdivideSettings.region

getset

Region on polyline to be subdivided: both edge vertices must be there to allow spitting, it is updated during the operation

useCurvature

new unsafe ref bool MR.PolylineSubdivideSettings.useCurvature

get

This option works best for natural lines, where all segments have similar size, and no sharp angles in between

---

The documentation for this class was generated from the following file:

• MRPolylineSubdivide.cs
