MR.RegularMapMesher Class Reference

Class for making mesh from regular distance map. More...

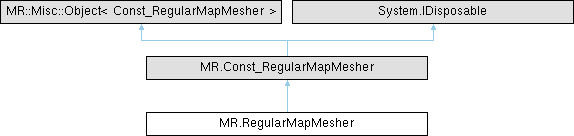

Inheritance diagram for MR.RegularMapMesher:

Public Member Functions

unsafe RegularMapMesher ()
 Constructs an empty (default-constructed) instance.
unsafe RegularMapMesher (MR._ByValue_RegularMapMesher _other)
 Generated from constructor MR.RegularMapMesher.RegularMapMesher.
 RegularMapMesher (Const_RegularMapMesher _other)
 Generated from constructor MR.RegularMapMesher.RegularMapMesher.
 RegularMapMesher (RegularMapMesher _other)
 Generated from constructor MR.RegularMapMesher.RegularMapMesher.
unsafe MR.RegularMapMesher assign (MR._ByValue_RegularMapMesher _other)
 Generated from method MR::RegularMapMesher::operator=.
unsafe void setSurfacePC (MR.Std.Const_SharedPtr_MRPointCloud surfacePC)
 Sets surface Point Cloud Generated from method MR.RegularMapMesher.setSurfacePC.
unsafe void setDirectionsPC (MR.Std.Const_SharedPtr_MRPointCloud directionsPC)
 Sets directions Point Cloud Generated from method MR.RegularMapMesher.setDirectionsPC.
unsafe void loadDistances (int width, int height, string path)
 Loads distances form distances file (1/distance) Generated from method MR.RegularMapMesher.loadDistances.
unsafe void setDistances (int width, int height, MR.Std.Const_Vector_Float distances)
 Sets distances Generated from method MR.RegularMapMesher.setDistances.
Public Member Functions inherited from MR.Const_RegularMapMesher
virtual void Dispose ()
unsafe Const_RegularMapMesher ()
 Constructs an empty (default-constructed) instance.
unsafe Const_RegularMapMesher (MR._ByValue_RegularMapMesher _other)
 Generated from constructor MR.RegularMapMesher.RegularMapMesher.
 Const_RegularMapMesher (Const_RegularMapMesher _other)
 Generated from constructor MR.RegularMapMesher.RegularMapMesher.
 Const_RegularMapMesher (RegularMapMesher _other)
 Generated from constructor MR.RegularMapMesher.RegularMapMesher.
unsafe MR.Mesh createMesh ()
 Creates mesh if all components were successfully loaded Generated from method MR.RegularMapMesher.createMesh.

Additional Inherited Members

Protected Member Functions inherited from MR.Const_RegularMapMesher
virtual unsafe void Dispose (bool disposing)

Detailed Description

Class for making mesh from regular distance map.

distance for each lattice of map is defined as point on ray from surface point cloud to direction point cloud, with length equal to 1/distance from distances file (if distance in file == 0 ray had no point) Generated from class MR.RegularMapMesher. This is the non-const half of the class.

Constructor & Destructor Documentation

◆ RegularMapMesher() [1/4]

unsafe MR.RegularMapMesher.RegularMapMesher ( )
inline

Constructs an empty (default-constructed) instance.

◆ RegularMapMesher() [2/4]

unsafe MR.RegularMapMesher.RegularMapMesher ( MR._ByValue_RegularMapMesher _other)
inline

Generated from constructor MR.RegularMapMesher.RegularMapMesher.

◆ RegularMapMesher() [3/4]

MR.RegularMapMesher.RegularMapMesher ( Const_RegularMapMesher _other)
inline

Generated from constructor MR.RegularMapMesher.RegularMapMesher.

◆ RegularMapMesher() [4/4]

MR.RegularMapMesher.RegularMapMesher ( RegularMapMesher _other)
inline

Generated from constructor MR.RegularMapMesher.RegularMapMesher.

Member Function Documentation

◆ assign()

unsafe MR.RegularMapMesher MR.RegularMapMesher.assign ( MR._ByValue_RegularMapMesher _other)
inline

Generated from method MR::RegularMapMesher::operator=.

◆ loadDistances()

unsafe void MR.RegularMapMesher.loadDistances ( int width,
int height,
string path )
inline

Loads distances form distances file (1/distance) Generated from method MR.RegularMapMesher.loadDistances.

◆ setDirectionsPC()

unsafe void MR.RegularMapMesher.setDirectionsPC ( MR.Std.Const_SharedPtr_MRPointCloud directionsPC)
inline

Sets directions Point Cloud Generated from method MR.RegularMapMesher.setDirectionsPC.

◆ setDistances()

unsafe void MR.RegularMapMesher.setDistances ( int width,
int height,
MR.Std.Const_Vector_Float distances )
inline

Sets distances Generated from method MR.RegularMapMesher.setDistances.

◆ setSurfacePC()

unsafe void MR.RegularMapMesher.setSurfacePC ( MR.Std.Const_SharedPtr_MRPointCloud surfacePC)
inline

Sets surface Point Cloud Generated from method MR.RegularMapMesher.setSurfacePC.

The documentation for this class was generated from the following file:
