MR.SimpleVolumeMinMaxU16 Class Reference

represents a box in 3D space subdivided on voxels stored in T; and stores minimum and maximum values among all valid voxels Generated from class MR.SimpleVolumeMinMaxU16. Base classes: Direct: (non-virtual) MR.SimpleVolumeU16 MR.Box<unsigned short> This is the non-const half of the class. More...

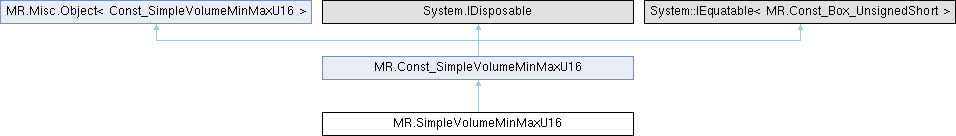

Inheritance diagram for MR.SimpleVolumeMinMaxU16:

Public Member Functions
unsafe	SimpleVolumeMinMaxU16 ()
	Constructs an empty (default-constructed) instance.
unsafe	SimpleVolumeMinMaxU16 (MR._ByValue_SimpleVolumeMinMaxU16 _other)
	Generated from constructor MR.SimpleVolumeMinMaxU16.SimpleVolumeMinMaxU16.
unsafe MR.SimpleVolumeMinMaxU16	assign (MR._ByValue_SimpleVolumeMinMaxU16 _other)
	Generated from method MR.SimpleVolumeMinMaxU16.operator=.
unsafe MR.Box_UnsignedShort	intersect (MR.Const_Box_UnsignedShort b)
	Generated from method MR.SimpleVolumeMinMaxU16.intersect.
Public Member Functions inherited from MR.Const_SimpleVolumeMinMaxU16
virtual void	Dispose ()
unsafe	Const_SimpleVolumeMinMaxU16 ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_SimpleVolumeMinMaxU16 (MR._ByValue_SimpleVolumeMinMaxU16 _other)
	Generated from constructor MR.SimpleVolumeMinMaxU16.SimpleVolumeMinMaxU16.
unsafe ulong	heapBytes ()
	Generated from method MR.SimpleVolumeMinMaxU16.heapBytes.
unsafe bool	valid ()
	true if the box contains at least one point Generated from method MR.SimpleVolumeMinMaxU16.valid.
unsafe ushort	center ()
	computes center of the box Generated from method MR.SimpleVolumeMinMaxU16.center.
unsafe ushort	corner (bool c)
	returns the corner of this box as specified by given bool-vector: 0 element in (c) means take min's coordinate, 1 element in (c) means take max's coordinate Generated from method MR.SimpleVolumeMinMaxU16.corner.
unsafe ushort	size ()
	computes size of the box in all dimensions Generated from method MR.SimpleVolumeMinMaxU16.size.
unsafe ushort	diagonal ()
	computes length from min to max Generated from method MR.SimpleVolumeMinMaxU16.diagonal.
unsafe ushort	volume ()
	computes the volume of this box Generated from method MR.SimpleVolumeMinMaxU16.volume.
unsafe ushort	getBoxClosestPointTo (ushort pt)
	returns closest point in the box to given point Generated from method MR.SimpleVolumeMinMaxU16.getBoxClosestPointTo.
unsafe bool	intersects (MR.Const_Box_UnsignedShort b)
	checks whether this box intersects or touches given box Generated from method MR.SimpleVolumeMinMaxU16.intersects.
unsafe MR.Box_UnsignedShort	intersection (MR.Const_Box_UnsignedShort b)
	computes intersection between this and other box Generated from method MR.SimpleVolumeMinMaxU16.intersection.
unsafe ushort	getProjection (ushort pt)
	returns the closest point on the box to the given point for points outside the box this is equivalent to getBoxClosestPointTo Generated from method MR.SimpleVolumeMinMaxU16.getProjection.
unsafe MR.Box_UnsignedShort	expanded (ushort expansion)
	decreases min and increased max on given value Generated from method MR.SimpleVolumeMinMaxU16.expanded.
unsafe MR.Box_UnsignedShort	insignificantlyExpanded ()
	decreases min and increases max to their closest representable value Generated from method MR.SimpleVolumeMinMaxU16.insignificantlyExpanded.
bool	Equals (MR.Const_Box_UnsignedShort? a)
override bool	Equals (object? other)

Static Public Member Functions
static unsafe implicit	operator MR.SimpleVolumeU16 (SimpleVolumeMinMaxU16 self)
static unsafe implicit	operator MR.Box_UnsignedShort (SimpleVolumeMinMaxU16 self)
Static Public Member Functions inherited from MR.Const_SimpleVolumeMinMaxU16
static unsafe implicit	operator MR.Const_SimpleVolumeU16 (Const_SimpleVolumeMinMaxU16 self)
static unsafe implicit	operator MR.Const_Box_UnsignedShort (Const_SimpleVolumeMinMaxU16 self)
static unsafe MR.Box_UnsignedShort	fromMinAndSize (ushort min, ushort size)
	Generated from method MR.SimpleVolumeMinMaxU16.fromMinAndSize.
static unsafe bool	getMinBoxCorner (ushort n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is minimal Generated from method MR.SimpleVolumeMinMaxU16.getMinBoxCorner.
static unsafe bool	getMaxBoxCorner (ushort n)
	considering all planes with given normal and arbitrary shift: dot(n,x) = d finds the box's corner for which d is maximal Generated from method MR.SimpleVolumeMinMaxU16.getMaxBoxCorner.
static unsafe bool	operator== (MR.Const_SimpleVolumeMinMaxU16 _this, MR.Const_Box_UnsignedShort a)
	Generated from method MR.SimpleVolumeMinMaxU16.operator==.
static unsafe bool	operator!= (MR.Const_SimpleVolumeMinMaxU16 _this, MR.Const_Box_UnsignedShort a)

Properties
new unsafe MR.Vector_UnsignedShort_MRVoxelId	data [get]
new unsafe ref MR.Vector3i	dims [get]
new unsafe ref MR.Vector3f	voxelSize [get]
new unsafe ref ushort	min [get]
new unsafe ref ushort	max [get]
Properties inherited from MR.Const_SimpleVolumeMinMaxU16
unsafe MR.Const_Vector_UnsignedShort_MRVoxelId	data [get]
unsafe ref readonly MR.Vector3i	dims [get]
unsafe ref readonly MR.Vector3f	voxelSize [get]
static unsafe int	Elements [get]
unsafe ushort	min [get]
unsafe ushort	max [get]
Properties inherited from MR.Misc.Object< Const_SimpleVolumeMinMaxU16 >
virtual bool	_IsOwning [get]
	Returns true if this is an owning instance, and when disposed, will destroy the underlying C++ instance. If false, we assume that the underlying C++ instance will live long enough.

Additional Inherited Members
Protected Member Functions inherited from MR.Const_SimpleVolumeMinMaxU16
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Misc.Object< Const_SimpleVolumeMinMaxU16 >
bool	_IsOwningVal

Detailed Description

represents a box in 3D space subdivided on voxels stored in T; and stores minimum and maximum values among all valid voxels Generated from class MR.SimpleVolumeMinMaxU16. Base classes: Direct: (non-virtual) MR.SimpleVolumeU16 MR.Box<unsigned short> This is the non-const half of the class.

---

The documentation for this class was generated from the following file:

• MRVoxelsVolume.cs
