MR.SplineSettings Class Reference

Generated from class MR.SplineSettings. This is the non-const half of the class. More...

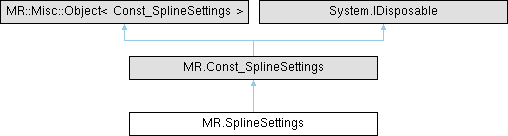

Inheritance diagram for MR.SplineSettings:

Public Member Functions
unsafe	SplineSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	SplineSettings (float samplingStep, float controlStability, int iterations, MR.Std.Vector_MRVector3f? normals, bool normalsAffectShape)
	Constructs MR.SplineSettings elementwise.
unsafe	SplineSettings (MR.Const_SplineSettings _other)
	Generated from constructor MR.SplineSettings.SplineSettings.
	SplineSettings (SplineSettings _other)
	Generated from constructor MR.SplineSettings.SplineSettings.
unsafe MR.SplineSettings	assign (MR.Const_SplineSettings _other)
	Generated from method MR.SplineSettings.operator=.

Properties
new unsafe ref float	samplingStep [get]
new unsafe ref float	controlStability [get]
	a positive value, the more the value the closer resulting spline will be to given control points
new unsafe ref int	iterations [get]
new unsafe MR.Std.? Vector_MRVector3f	normals [get, set]
	optional parameter with the normals of input points that will be resampled to become normals of output points
new unsafe ref bool	normalsAffectShape [get]
	if true and normals are provided, then the curve at marked points will try to be orthogonal to given normal there

Detailed Description

Generated from class MR.SplineSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

SplineSettings() [1/4]

unsafe MR.SplineSettings.SplineSettings ( )

inline

Constructs an empty (default-constructed) instance.

SplineSettings() [2/4]

unsafe MR.SplineSettings.SplineSettings ( float samplingStep, float controlStability, int iterations, MR.Std.Vector_MRVector3f? normals, bool normalsAffectShape )

inline

Constructs MR.SplineSettings elementwise.

SplineSettings() [3/4]

unsafe MR.SplineSettings.SplineSettings ( MR.Const_SplineSettings _other )

inline

Generated from constructor MR.SplineSettings.SplineSettings.

SplineSettings() [4/4]

MR.SplineSettings.SplineSettings ( SplineSettings _other )

inline

Generated from constructor MR.SplineSettings.SplineSettings.

Member Function Documentation

assign()

unsafe MR.SplineSettings MR.SplineSettings.assign ( MR.Const_SplineSettings _other )

inline

Generated from method MR.SplineSettings.operator=.

Property Documentation

controlStability

new unsafe ref float MR.SplineSettings.controlStability

get

a positive value, the more the value the closer resulting spline will be to given control points

iterations

new unsafe ref int MR.SplineSettings.iterations

get

the shape of resulting spline depends on the total number of points in the contour, which in turn depends on the length of input contour being sampled; setting iterations greater than one allows you to pass a constructed spline as a better input contour to the next run of the algorithm

normals

new unsafe MR.Std.? Vector_MRVector3f MR.SplineSettings.normals

getset

optional parameter with the normals of input points that will be resampled to become normals of output points

normalsAffectShape

new unsafe ref bool MR.SplineSettings.normalsAffectShape

get

if true and normals are provided, then the curve at marked points will try to be orthogonal to given normal there

samplingStep

new unsafe ref float MR.SplineSettings.samplingStep

get

additional points will be added between each pair of control points, until the distance between neighbor points becomes less than this distance

---

The documentation for this class was generated from the following file:

• MRMarkedContour.cs
