MR.SubdivideSettings Class Reference

Generated from class MR.SubdivideSettings. This is the non-const half of the class. More...

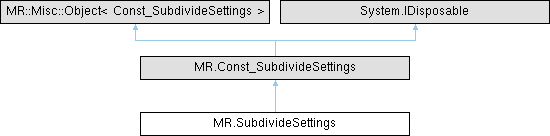

Inheritance diagram for MR.SubdivideSettings:

Public Member Functions
unsafe	SubdivideSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	SubdivideSettings (float maxEdgeLen, float curvaturePriority, int maxEdgeSplits, float maxDeviationAfterFlip, float maxAngleChangeAfterFlip, float criticalAspectRatioFlip, MR.FaceBitSet? region, MR.FaceBitSet? maintainRegion, MR.UndirectedEdgeBitSet? notFlippable, MR.VertBitSet? newVerts, bool subdivideBorder, float maxTriAspectRatio, float maxSplittableTriAspectRatio, bool smoothMode, float minSharpDihedralAngle, bool projectOnOriginalMesh, MR.Std._ByValue_Function_BoolFuncFromMREdgeId beforeEdgeSplit, MR.Std._ByValue_Function_VoidFuncFromMRVertId onVertCreated, MR.Std._ByValue_Function_VoidFuncFromMREdgeIdMREdgeId onEdgeSplit, MR.Std._ByValue_Function_BoolFuncFromFloat progressCallback)
	Constructs MR.SubdivideSettings elementwise.
unsafe	SubdivideSettings (MR._ByValue_SubdivideSettings _other)
	Generated from constructor MR.SubdivideSettings.SubdivideSettings.
	SubdivideSettings (Const_SubdivideSettings _other)
	Generated from constructor MR.SubdivideSettings.SubdivideSettings.
	SubdivideSettings (SubdivideSettings _other)
	Generated from constructor MR.SubdivideSettings.SubdivideSettings.
unsafe MR.SubdivideSettings	assign (MR._ByValue_SubdivideSettings _other)
	Generated from method MR.SubdivideSettings.operator=.

Properties
new unsafe ref float	maxEdgeLen [get]
	Subdivision is stopped when all edges inside or on the boundary of the region are not longer than this value.
new unsafe ref float	curvaturePriority [get]
new unsafe ref int	maxEdgeSplits [get]
	Maximum number of edge splits allowed.
new unsafe ref float	maxDeviationAfterFlip [get]
	Improves local mesh triangulation by doing edge flips if it does not make too big surface deviation.
new unsafe ref float	maxAngleChangeAfterFlip [get]
	Improves local mesh triangulation by doing edge flips if it does not change dihedral angle more than on this value (in radians)
new unsafe ref float	criticalAspectRatioFlip [get]
new unsafe MR.? FaceBitSet	region [get, set]
	Region on mesh to be subdivided, it is updated during the operation.
new unsafe MR.? FaceBitSet	maintainRegion [get, set]
new unsafe MR.? UndirectedEdgeBitSet	notFlippable [get, set]
	Edges specified by this bit-set will never be flipped, but they can be split so it is updated during the operation.
new unsafe MR.? VertBitSet	newVerts [get, set]
	New vertices appeared during subdivision will be added here.
new unsafe ref bool	subdivideBorder [get]
new unsafe ref float	maxTriAspectRatio [get]
	The subdivision stops as soon as all triangles (in the region) have aspect ratio below or equal to this value.
new unsafe ref float	maxSplittableTriAspectRatio [get]
new unsafe ref bool	smoothMode [get]
new unsafe ref float	minSharpDihedralAngle [get]
new unsafe ref bool	projectOnOriginalMesh [get]
	if true, then every new vertex will be projected on the original mesh (before smoothing)
new unsafe MR.Std.Function_BoolFuncFromMREdgeId	beforeEdgeSplit [get, protected set]
	this function is called each time edge (e) is going to split, if it returns false then this split will be skipped
new unsafe MR.Std.Function_VoidFuncFromMRVertId	onVertCreated [get, protected set]
	this function is called each time a new vertex has been created, but before the ring is made Delone
new unsafe MR.Std.Function_VoidFuncFromMREdgeIdMREdgeId	onEdgeSplit [get, protected set]
	this function is called each time edge (e) is split into (e1->e), but before the ring is made Delone
new unsafe MR.Std.Function_BoolFuncFromFloat	progressCallback [get, protected set]
	callback to report algorithm progress and cancel it by user request

Detailed Description

Generated from class MR.SubdivideSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

SubdivideSettings() [1/5]

unsafe MR.SubdivideSettings.SubdivideSettings ( )

inline

Constructs an empty (default-constructed) instance.

SubdivideSettings() [2/5]

unsafe MR.SubdivideSettings.SubdivideSettings ( float maxEdgeLen, float curvaturePriority, int maxEdgeSplits, float maxDeviationAfterFlip, float maxAngleChangeAfterFlip, float criticalAspectRatioFlip, MR.FaceBitSet? region, MR.FaceBitSet? maintainRegion, MR.UndirectedEdgeBitSet? notFlippable, MR.VertBitSet? newVerts, bool subdivideBorder, float maxTriAspectRatio, float maxSplittableTriAspectRatio, bool smoothMode, float minSharpDihedralAngle, bool projectOnOriginalMesh, MR.Std._ByValue_Function_BoolFuncFromMREdgeId beforeEdgeSplit, MR.Std._ByValue_Function_VoidFuncFromMRVertId onVertCreated, MR.Std._ByValue_Function_VoidFuncFromMREdgeIdMREdgeId onEdgeSplit, MR.Std._ByValue_Function_BoolFuncFromFloat progressCallback )

inline

Constructs MR.SubdivideSettings elementwise.

SubdivideSettings() [3/5]

unsafe MR.SubdivideSettings.SubdivideSettings ( MR._ByValue_SubdivideSettings _other )

inline

Generated from constructor MR.SubdivideSettings.SubdivideSettings.

SubdivideSettings() [4/5]

MR.SubdivideSettings.SubdivideSettings ( Const_SubdivideSettings _other )

inline

Generated from constructor MR.SubdivideSettings.SubdivideSettings.

SubdivideSettings() [5/5]

MR.SubdivideSettings.SubdivideSettings ( SubdivideSettings _other )

inline

Generated from constructor MR.SubdivideSettings.SubdivideSettings.

Member Function Documentation

assign()

unsafe MR.SubdivideSettings MR.SubdivideSettings.assign ( MR._ByValue_SubdivideSettings _other )

inline

Generated from method MR.SubdivideSettings.operator=.

Property Documentation

beforeEdgeSplit

new unsafe MR.Std.Function_BoolFuncFromMREdgeId MR.SubdivideSettings.beforeEdgeSplit

getprotected set

this function is called each time edge (e) is going to split, if it returns false then this split will be skipped

criticalAspectRatioFlip

new unsafe ref float MR.SubdivideSettings.criticalAspectRatioFlip

get

If this value is less than FLT_MAX then edge flips will ignore dihedral angle check if one of triangles has aspect ratio more than this value Unit: rad

curvaturePriority

new unsafe ref float MR.SubdivideSettings.curvaturePriority

get

edge length will be magnified by the squared difference of normals at edge's ends times this factor, thus subdivision will be finer in the regions of high curvature compared to planar regions

maintainRegion

new unsafe MR.? FaceBitSet MR.SubdivideSettings.maintainRegion

getset

Additional region to update during subdivision: if a face from here is split, it is replaced with new sub-faces; note that Subdivide can split faces even outside of main region, so it might be necessary to update another region

maxAngleChangeAfterFlip

new unsafe ref float MR.SubdivideSettings.maxAngleChangeAfterFlip

get

Improves local mesh triangulation by doing edge flips if it does not change dihedral angle more than on this value (in radians)

maxDeviationAfterFlip

new unsafe ref float MR.SubdivideSettings.maxDeviationAfterFlip

get

Improves local mesh triangulation by doing edge flips if it does not make too big surface deviation.

maxEdgeLen

new unsafe ref float MR.SubdivideSettings.maxEdgeLen

get

Subdivision is stopped when all edges inside or on the boundary of the region are not longer than this value.

maxEdgeSplits

new unsafe ref int MR.SubdivideSettings.maxEdgeSplits

get

Maximum number of edge splits allowed.

maxSplittableTriAspectRatio

new unsafe ref float MR.SubdivideSettings.maxSplittableTriAspectRatio

get

An edge is subdivided only if both its left and right triangles have aspect ratio below or equal to this value. So this is a maximum aspect ratio of a triangle that can be split on two before Delone optimization. Please set it to a smaller value only if subdivideBorder==false, otherwise many narrow triangles can appear near border

maxTriAspectRatio

new unsafe ref float MR.SubdivideSettings.maxTriAspectRatio

get

The subdivision stops as soon as all triangles (in the region) have aspect ratio below or equal to this value.

minSharpDihedralAngle

new unsafe ref float MR.SubdivideSettings.minSharpDihedralAngle

get

newVerts

new unsafe MR.? VertBitSet MR.SubdivideSettings.newVerts

getset

New vertices appeared during subdivision will be added here.

notFlippable

new unsafe MR.? UndirectedEdgeBitSet MR.SubdivideSettings.notFlippable

getset

Edges specified by this bit-set will never be flipped, but they can be split so it is updated during the operation.

onEdgeSplit

new unsafe MR.Std.Function_VoidFuncFromMREdgeIdMREdgeId MR.SubdivideSettings.onEdgeSplit

getprotected set

this function is called each time edge (e) is split into (e1->e), but before the ring is made Delone

onVertCreated

new unsafe MR.Std.Function_VoidFuncFromMRVertId MR.SubdivideSettings.onVertCreated

getprotected set

this function is called each time a new vertex has been created, but before the ring is made Delone

progressCallback

new unsafe MR.Std.Function_BoolFuncFromFloat MR.SubdivideSettings.progressCallback

getprotected set

callback to report algorithm progress and cancel it by user request

projectOnOriginalMesh

new unsafe ref bool MR.SubdivideSettings.projectOnOriginalMesh

get

if true, then every new vertex will be projected on the original mesh (before smoothing)

region

new unsafe MR.? FaceBitSet MR.SubdivideSettings.region

getset

Region on mesh to be subdivided, it is updated during the operation.

smoothMode

new unsafe ref bool MR.SubdivideSettings.smoothMode

get

Puts new vertices so that they form a smooth surface together with existing vertices. This option works best for natural surfaces without sharp edges in between triangles

subdivideBorder

new unsafe ref bool MR.SubdivideSettings.subdivideBorder

get

If false do not touch border edges (cannot subdivide lone faces)
use MR.findRegionOuterFaces to find boundary faces

---

The documentation for this class was generated from the following file:

• MRMeshSubdivide.cs
