MR.SymMatrix2d Class Reference

symmetric 2x2 matrix Generated from class MR.SymMatrix2d. This is the non-const half of the class. More...

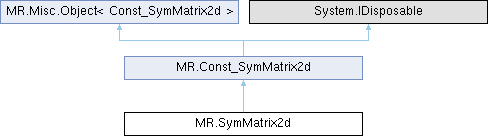

Inheritance diagram for MR.SymMatrix2d:

Public Member Functions
unsafe	SymMatrix2d ()
	Constructs an empty (default-constructed) instance.
unsafe	SymMatrix2d (MR.Const_SymMatrix2d _other)
	Generated from constructor MR.SymMatrix2d.SymMatrix2d.
	SymMatrix2d (SymMatrix2d _other)
	Generated from constructor MR.SymMatrix2d.SymMatrix2d.
unsafe MR.SymMatrix2d	assign (MR.Const_SymMatrix2d _other)
	Generated from method MR::SymMatrix2d::operator=.
unsafe MR.SymMatrix2d	addAssign (MR.Const_SymMatrix2d b)
	Generated from method MR::SymMatrix2d::operator+=.
unsafe MR.SymMatrix2d	subAssign (MR.Const_SymMatrix2d b)
	Generated from method MR::SymMatrix2d::operator-=.
unsafe MR.SymMatrix2d	mulAssign (double b)
	Generated from method MR::SymMatrix2d::operator*=.
unsafe MR.SymMatrix2d	divAssign (double b)
	Generated from method MR::SymMatrix2d::operator/=.
Public Member Functions inherited from MR.Const_SymMatrix2d
virtual void	Dispose ()
unsafe	Const_SymMatrix2d ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_SymMatrix2d (MR.Const_SymMatrix2d _other)
	Generated from constructor MR.SymMatrix2d.SymMatrix2d.
	Const_SymMatrix2d (SymMatrix2d _other)
	Generated from constructor MR.SymMatrix2d.SymMatrix2d.
unsafe double	trace ()
	computes trace of the matrix Generated from method MR.SymMatrix2d.trace.
unsafe double	normSq ()
	computes the squared norm of the matrix, which is equal to the sum of 4 squared elements Generated from method MR.SymMatrix2d.normSq.
unsafe double	det ()
	computes determinant of the matrix Generated from method MR.SymMatrix2d.det.
unsafe MR.SymMatrix2d	inverse ()
	computes inverse matrix Generated from method MR.SymMatrix2d.inverse.
unsafe MR.SymMatrix2d	inverse (double det)
	computes inverse matrix given determinant of this Generated from method MR.SymMatrix2d.inverse.
unsafe MR.Vector2d	eigens (MR.Misc.InOut< MR.Matrix2d >? eigenvectors=null)
	returns eigenvalues of the matrix in ascending order (diagonal matrix L), and optionally returns corresponding unit eigenvectors in the rows of orthogonal matrix V, M*V^T = V^T*L; M = V^T*L*V Generated from method MR.SymMatrix2d.eigens.
unsafe MR.Vector2d	eigenvector (double eigenvalue)
	computes not-unit eigenvector corresponding to a not-repeating eigenvalue Generated from method MR.SymMatrix2d.eigenvector.
unsafe MR.Vector2d	maxEigenvector ()
	computes not-unit eigenvector corresponding to maximum eigenvalue Generated from method MR.SymMatrix2d.maxEigenvector.
unsafe MR.SymMatrix2d	pseudoinverse (double? tol=null, MR.Misc.InOut< int >? rank=null, MR.Misc.InOut< MR.Vector2d >? space=null)
	for not-degenerate matrix returns just inverse matrix, otherwise returns degenerate matrix, which performs inversion on not-kernel subspace;

Properties
new unsafe ref double	xx [get]
	zero matrix by default
new unsafe ref double	xy [get]
	zero matrix by default
new unsafe ref double	yy [get]
	zero matrix by default
Properties inherited from MR.Const_SymMatrix2d
unsafe double	xx [get]
	zero matrix by default
unsafe double	xy [get]
	zero matrix by default
unsafe double	yy [get]
	zero matrix by default

Additional Inherited Members
Static Public Member Functions inherited from MR.Const_SymMatrix2d
static unsafe MR.SymMatrix2d	identity ()
	Generated from method MR.SymMatrix2d.identity.
static unsafe MR.SymMatrix2d	diagonal (double diagVal)
	Generated from method MR.SymMatrix2d.diagonal.
Protected Member Functions inherited from MR.Const_SymMatrix2d
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_SymMatrix2d
unsafe double *	__ref_storage_xx
unsafe double *	__ref_storage_xy
unsafe double *	__ref_storage_yy

Detailed Description

symmetric 2x2 matrix Generated from class MR.SymMatrix2d. This is the non-const half of the class.

Constructor & Destructor Documentation

SymMatrix2d() [1/3]

unsafe MR.SymMatrix2d.SymMatrix2d ( )

inline

Constructs an empty (default-constructed) instance.

SymMatrix2d() [2/3]

unsafe MR.SymMatrix2d.SymMatrix2d ( MR.Const_SymMatrix2d _other )

inline

Generated from constructor MR.SymMatrix2d.SymMatrix2d.

SymMatrix2d() [3/3]

MR.SymMatrix2d.SymMatrix2d ( SymMatrix2d _other )

inline

Generated from constructor MR.SymMatrix2d.SymMatrix2d.

Member Function Documentation

addAssign()

unsafe MR.SymMatrix2d MR.SymMatrix2d.addAssign ( MR.Const_SymMatrix2d b )

inline

Generated from method MR::SymMatrix2d::operator+=.

assign()

unsafe MR.SymMatrix2d MR.SymMatrix2d.assign ( MR.Const_SymMatrix2d _other )

inline

Generated from method MR::SymMatrix2d::operator=.

divAssign()

unsafe MR.SymMatrix2d MR.SymMatrix2d.divAssign ( double b )

inline

Generated from method MR::SymMatrix2d::operator/=.

mulAssign()

unsafe MR.SymMatrix2d MR.SymMatrix2d.mulAssign ( double b )

inline

Generated from method MR::SymMatrix2d::operator*=.

subAssign()

unsafe MR.SymMatrix2d MR.SymMatrix2d.subAssign ( MR.Const_SymMatrix2d b )

inline

Generated from method MR::SymMatrix2d::operator-=.

Property Documentation

xx

new unsafe ref double MR.SymMatrix2d.xx

get

zero matrix by default

xy

new unsafe ref double MR.SymMatrix2d.xy

get

zero matrix by default

yy

new unsafe ref double MR.SymMatrix2d.yy

get

zero matrix by default

---

The documentation for this class was generated from the following file:

• MRSymMatrix2.cs
