MR.SymMatrix2f Class Reference

symmetric 2x2 matrix Generated from class MR.SymMatrix2f. This is the non-const half of the class. More...

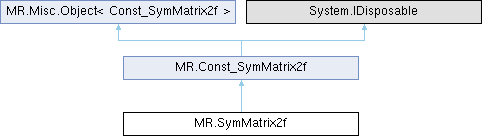

Inheritance diagram for MR.SymMatrix2f:

Public Member Functions
unsafe	SymMatrix2f ()
	Constructs an empty (default-constructed) instance.
unsafe	SymMatrix2f (MR.Const_SymMatrix2f _other)
	Generated from constructor MR.SymMatrix2f.SymMatrix2f.
	SymMatrix2f (SymMatrix2f _other)
	Generated from constructor MR.SymMatrix2f.SymMatrix2f.
unsafe MR.SymMatrix2f	assign (MR.Const_SymMatrix2f _other)
	Generated from method MR::SymMatrix2f::operator=.
unsafe MR.SymMatrix2f	addAssign (MR.Const_SymMatrix2f b)
	Generated from method MR::SymMatrix2f::operator+=.
unsafe MR.SymMatrix2f	subAssign (MR.Const_SymMatrix2f b)
	Generated from method MR::SymMatrix2f::operator-=.
unsafe MR.SymMatrix2f	mulAssign (float b)
	Generated from method MR::SymMatrix2f::operator*=.
unsafe MR.SymMatrix2f	divAssign (float b)
	Generated from method MR::SymMatrix2f::operator/=.
Public Member Functions inherited from MR.Const_SymMatrix2f
virtual void	Dispose ()
unsafe	Const_SymMatrix2f ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_SymMatrix2f (MR.Const_SymMatrix2f _other)
	Generated from constructor MR.SymMatrix2f.SymMatrix2f.
	Const_SymMatrix2f (SymMatrix2f _other)
	Generated from constructor MR.SymMatrix2f.SymMatrix2f.
unsafe float	trace ()
	computes trace of the matrix Generated from method MR.SymMatrix2f.trace.
unsafe float	normSq ()
	computes the squared norm of the matrix, which is equal to the sum of 4 squared elements Generated from method MR.SymMatrix2f.normSq.
unsafe float	det ()
	computes determinant of the matrix Generated from method MR.SymMatrix2f.det.
unsafe MR.SymMatrix2f	inverse ()
	computes inverse matrix Generated from method MR.SymMatrix2f.inverse.
unsafe MR.SymMatrix2f	inverse (float det)
	computes inverse matrix given determinant of this Generated from method MR.SymMatrix2f.inverse.
unsafe MR.Vector2f	eigens (MR.Misc.InOut< MR.Matrix2f >? eigenvectors=null)
	returns eigenvalues of the matrix in ascending order (diagonal matrix L), and optionally returns corresponding unit eigenvectors in the rows of orthogonal matrix V, M*V^T = V^T*L; M = V^T*L*V Generated from method MR.SymMatrix2f.eigens.
unsafe MR.Vector2f	eigenvector (float eigenvalue)
	computes not-unit eigenvector corresponding to a not-repeating eigenvalue Generated from method MR.SymMatrix2f.eigenvector.
unsafe MR.Vector2f	maxEigenvector ()
	computes not-unit eigenvector corresponding to maximum eigenvalue Generated from method MR.SymMatrix2f.maxEigenvector.
unsafe MR.SymMatrix2f	pseudoinverse (float? tol=null, MR.Misc.InOut< int >? rank=null, MR.Misc.InOut< MR.Vector2f >? space=null)
	for not-degenerate matrix returns just inverse matrix, otherwise returns degenerate matrix, which performs inversion on not-kernel subspace;

Properties
new unsafe ref float	xx [get]
	zero matrix by default
new unsafe ref float	xy [get]
	zero matrix by default
new unsafe ref float	yy [get]
	zero matrix by default
Properties inherited from MR.Const_SymMatrix2f
unsafe float	xx [get]
	zero matrix by default
unsafe float	xy [get]
	zero matrix by default
unsafe float	yy [get]
	zero matrix by default

Additional Inherited Members
Static Public Member Functions inherited from MR.Const_SymMatrix2f
static unsafe MR.SymMatrix2f	identity ()
	Generated from method MR.SymMatrix2f.identity.
static unsafe MR.SymMatrix2f	diagonal (float diagVal)
	Generated from method MR.SymMatrix2f.diagonal.
Protected Member Functions inherited from MR.Const_SymMatrix2f
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_SymMatrix2f
unsafe float *	__ref_storage_xx
unsafe float *	__ref_storage_xy
unsafe float *	__ref_storage_yy

Detailed Description

symmetric 2x2 matrix Generated from class MR.SymMatrix2f. This is the non-const half of the class.

Constructor & Destructor Documentation

SymMatrix2f() [1/3]

unsafe MR.SymMatrix2f.SymMatrix2f ( )

inline

Constructs an empty (default-constructed) instance.

SymMatrix2f() [2/3]

unsafe MR.SymMatrix2f.SymMatrix2f ( MR.Const_SymMatrix2f _other )

inline

Generated from constructor MR.SymMatrix2f.SymMatrix2f.

SymMatrix2f() [3/3]

MR.SymMatrix2f.SymMatrix2f ( SymMatrix2f _other )

inline

Generated from constructor MR.SymMatrix2f.SymMatrix2f.

Member Function Documentation

addAssign()

unsafe MR.SymMatrix2f MR.SymMatrix2f.addAssign ( MR.Const_SymMatrix2f b )

inline

Generated from method MR::SymMatrix2f::operator+=.

assign()

unsafe MR.SymMatrix2f MR.SymMatrix2f.assign ( MR.Const_SymMatrix2f _other )

inline

Generated from method MR::SymMatrix2f::operator=.

divAssign()

unsafe MR.SymMatrix2f MR.SymMatrix2f.divAssign ( float b )

inline

Generated from method MR::SymMatrix2f::operator/=.

mulAssign()

unsafe MR.SymMatrix2f MR.SymMatrix2f.mulAssign ( float b )

inline

Generated from method MR::SymMatrix2f::operator*=.

subAssign()

unsafe MR.SymMatrix2f MR.SymMatrix2f.subAssign ( MR.Const_SymMatrix2f b )

inline

Generated from method MR::SymMatrix2f::operator-=.

Property Documentation

xx

new unsafe ref float MR.SymMatrix2f.xx

get

zero matrix by default

xy

new unsafe ref float MR.SymMatrix2f.xy

get

zero matrix by default

yy

new unsafe ref float MR.SymMatrix2f.yy

get

zero matrix by default

---

The documentation for this class was generated from the following file:

• MRSymMatrix2.cs
