MR.SymMatrix3d Class Reference

symmetric 3x3 matrix Generated from class MR.SymMatrix3d. This is the non-const half of the class. More...

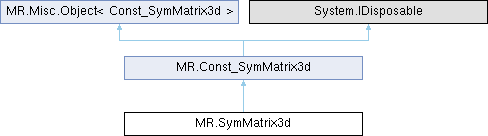

Inheritance diagram for MR.SymMatrix3d:

Public Member Functions
unsafe	SymMatrix3d ()
	Constructs an empty (default-constructed) instance.
unsafe	SymMatrix3d (MR.Const_SymMatrix3d _other)
	Generated from constructor MR.SymMatrix3d.SymMatrix3d.
unsafe MR.SymMatrix3d	assign (MR.Const_SymMatrix3d _other)
	Generated from method MR.SymMatrix3d.operator=.
unsafe MR.SymMatrix3d	addAssign (MR.Const_SymMatrix3d b)
	Generated from method MR.SymMatrix3d.operator+=.
unsafe MR.SymMatrix3d	subAssign (MR.Const_SymMatrix3d b)
	Generated from method MR.SymMatrix3d.operator-=.
unsafe MR.SymMatrix3d	mulAssign (double b)
	Generated from method MR.SymMatrix3d.operator*=.
unsafe MR.SymMatrix3d	divAssign (double b)
	Generated from method MR.SymMatrix3d.operator/=.
Public Member Functions inherited from MR.Const_SymMatrix3d
virtual void	Dispose ()
unsafe	Const_SymMatrix3d ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_SymMatrix3d (MR.Const_SymMatrix3d _other)
	Generated from constructor MR.SymMatrix3d.SymMatrix3d.
unsafe double	trace ()
	computes trace of the matrix Generated from method MR.SymMatrix3d.trace.
unsafe double	normSq ()
	computes the squared norm of the matrix, which is equal to the sum of 9 squared elements Generated from method MR.SymMatrix3d.normSq.
unsafe double	det ()
	computes determinant of the matrix Generated from method MR.SymMatrix3d.det.
unsafe MR.SymMatrix3d	inverse ()
	computes inverse matrix Generated from method MR.SymMatrix3d.inverse.
unsafe MR.SymMatrix3d	inverse (double det)
	computes inverse matrix given determinant of this Generated from method MR.SymMatrix3d.inverse.
unsafe MR.Vector3d	eigens (MR.Misc.InOut< MR.Matrix3d >? eigenvectors=null)
	returns eigenvalues of the matrix in ascending order (diagonal matrix L), and optionally returns corresponding unit eigenvectors in the rows of orthogonal matrix V, M*V^T = V^T*L; M = V^T*L*V Generated from method MR.SymMatrix3d.eigens.
unsafe MR.Vector3d	eigenvector (double eigenvalue)
	computes not-unit eigenvector corresponding to a not-repeating eigenvalue Generated from method MR.SymMatrix3d.eigenvector.
unsafe MR.SymMatrix3d	pseudoinverse (double? tol=null, MR.Misc.InOut< int >? rank=null, MR.Misc.InOut< MR.Vector3d >? space=null)
	for not-degenerate matrix returns just inverse matrix, otherwise returns degenerate matrix, which performs inversion on not-kernel subspace;

Properties
new unsafe ref double	xx [get]
	zero matrix by default
new unsafe ref double	xy [get]
	zero matrix by default
new unsafe ref double	xz [get]
	zero matrix by default
new unsafe ref double	yy [get]
	zero matrix by default
new unsafe ref double	yz [get]
	zero matrix by default
new unsafe ref double	zz [get]
	zero matrix by default
Properties inherited from MR.Const_SymMatrix3d
unsafe double	xx [get]
	zero matrix by default
unsafe double	xy [get]
	zero matrix by default
unsafe double	xz [get]
	zero matrix by default
unsafe double	yy [get]
	zero matrix by default
unsafe double	yz [get]
	zero matrix by default
unsafe double	zz [get]
	zero matrix by default
Properties inherited from MR.Misc.Object< Const_SymMatrix3d >
virtual bool	_IsOwning [get]
	Returns true if this is an owning instance, and when disposed, will destroy the underlying C++ instance. If false, we assume that the underlying C++ instance will live long enough.

Additional Inherited Members
Static Public Member Functions inherited from MR.Const_SymMatrix3d
static unsafe MR.SymMatrix3d	identity ()
	Generated from method MR.SymMatrix3d.identity.
static unsafe MR.SymMatrix3d	diagonal (double diagVal)
	Generated from method MR.SymMatrix3d.diagonal.
Protected Member Functions inherited from MR.Const_SymMatrix3d
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Misc.Object< Const_SymMatrix3d >
bool	_IsOwningVal

Detailed Description

symmetric 3x3 matrix Generated from class MR.SymMatrix3d. This is the non-const half of the class.

---

The documentation for this class was generated from the following file:

• MRSymMatrix3.cs
