Generated from class MR.TextMeshAlignParams. Base classes: Direct: (non-virtual) MR.SymbolMeshParams This is the non-const half of the class. More...

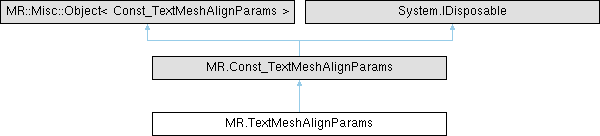

Inheritance diagram for MR.TextMeshAlignParams:

Public Member Functions
unsafe	TextMeshAlignParams ()
	Constructs an empty (default-constructed) instance.
unsafe	TextMeshAlignParams (MR._ByValue_TextMeshAlignParams _other)
	Generated from constructor MR.TextMeshAlignParams.TextMeshAlignParams.
	TextMeshAlignParams (Const_TextMeshAlignParams _other)
	Generated from constructor MR.TextMeshAlignParams.TextMeshAlignParams.
	TextMeshAlignParams (TextMeshAlignParams _other)
	Generated from constructor MR.TextMeshAlignParams.TextMeshAlignParams.
unsafe MR.TextMeshAlignParams	assign (MR._ByValue_TextMeshAlignParams _other)
	Generated from method MR::TextMeshAlignParams::operator=.
Public Member Functions inherited from MR.Const_TextMeshAlignParams
virtual void	Dispose ()
unsafe	Const_TextMeshAlignParams ()
	Constructs an empty (default-constructed) instance.
unsafe	Const_TextMeshAlignParams (MR._ByValue_TextMeshAlignParams _other)
	Generated from constructor MR.TextMeshAlignParams.TextMeshAlignParams.
	Const_TextMeshAlignParams (Const_TextMeshAlignParams _other)
	Generated from constructor MR.TextMeshAlignParams.TextMeshAlignParams.
	Const_TextMeshAlignParams (TextMeshAlignParams _other)
	Generated from constructor MR.TextMeshAlignParams.TextMeshAlignParams.

Static Public Member Functions
static unsafe implicit	operator MR.SymbolMeshParams (TextMeshAlignParams self)
Static Public Member Functions inherited from MR.Const_TextMeshAlignParams
static unsafe implicit	operator MR.Const_SymbolMeshParams (Const_TextMeshAlignParams self)

Properties
new unsafe MR.MeshTriPoint	startPoint `[get, protected set]`
	Position on mesh, where text's pivot point is mapped.
new unsafe ref MR.Vector2f	pivotPoint `[get]`
	Position of the startPoint in a text bounding box (0, 0) - bottom left, (0, 1) - bottom right, (0.5, 0.5) - center, (1, 1) - top right.
new unsafe ref MR.Vector3f	direction `[get]`
	Direction of text, must be not zero.
new unsafe MR.? ConstBox_Vector3f	textNormal `[get, set]`
	Text normal to surface, if nullptr - use mesh normal at startPoint
new unsafe ref float	fontHeight `[get]`
	Font height, meters.
new unsafe ref float	surfaceOffset `[get]`
	Text mesh inside and outside offset of input mesh.
new unsafe ref float	textMaximumMovement `[get]`
	Maximum possible movement of text mesh alignment, meters.
new unsafe ref bool	fontBasedSizeCalc `[get]`
	If true then size of each symbol will be calculated from font height, otherwise - on bounding box of the text.
new unsafe MR.Std.String	text `[get, protected set]`
new unsafe ref int	fontDetalization `[get]`
new unsafe ref MR.Vector2f	symbolsDistanceAdditionalOffset `[get]`
new unsafe ref float	symbolsThicknessOffsetModifier `[get]`
new unsafe ref MR.AlignType	align `[get]`
new unsafe MR.Std.Filesystem.Path	pathToFontFile `[get, protected set]`
Properties inherited from MR.Const_TextMeshAlignParams
unsafe MR.Const_MeshTriPoint	startPoint `[get, protected set]`
	Position on mesh, where text's pivot point is mapped.
unsafe ref readonly MR.Vector2f	pivotPoint `[get]`
	Position of the startPoint in a text bounding box (0, 0) - bottom left, (0, 1) - bottom right, (0.5, 0.5) - center, (1, 1) - top right.
unsafe ref readonly MR.Vector3f	direction `[get]`
	Direction of text, must be not zero.
unsafe MR.? ConstBox_Vector3f	textNormal `[get]`
	Text normal to surface, if nullptr - use mesh normal at startPoint
unsafe float	fontHeight `[get]`
	Font height, meters.
unsafe float	surfaceOffset `[get]`
	Text mesh inside and outside offset of input mesh.
unsafe float	textMaximumMovement `[get]`
	Maximum possible movement of text mesh alignment, meters.
unsafe bool	fontBasedSizeCalc `[get]`
	If true then size of each symbol will be calculated from font height, otherwise - on bounding box of the text.
static unsafe float	MaxGeneratedFontHeight `[get]`
unsafe MR.Std.Const_String	text `[get, protected set]`
unsafe int	fontDetalization `[get]`
unsafe ref readonly MR.Vector2f	symbolsDistanceAdditionalOffset `[get]`
unsafe float	symbolsThicknessOffsetModifier `[get]`
unsafe MR.AlignType	align `[get]`
unsafe MR.Std.Filesystem.Const_Path	pathToFontFile `[get, protected set]`

Additional Inherited Members
Protected Member Functions inherited from MR.Const_TextMeshAlignParams
virtual unsafe void	Dispose (bool disposing)
Protected Attributes inherited from MR.Const_TextMeshAlignParams
unsafe MR.Vector2f *	__ref_storage_pivotPoint
unsafe MR.Vector3f *	__ref_storage_direction
unsafe MR.ConstBox_Vector3f._Underlying **	__ptr_storage_textNormal
unsafe float *	__ref_storage_fontHeight
unsafe float *	__ref_storage_surfaceOffset
unsafe float *	__ref_storage_textMaximumMovement
unsafe bool *	__ref_storage_fontBasedSizeCalc
unsafe int *	__ref_storage_fontDetalization
unsafe MR.Vector2f *	__ref_storage_symbolsDistanceAdditionalOffset
unsafe float *	__ref_storage_symbolsThicknessOffsetModifier
unsafe MR.AlignType *	__ref_storage_align
Static Protected Attributes inherited from MR.Const_TextMeshAlignParams
static unsafe float *	__ref_storage_MaxGeneratedFontHeight

Detailed Description

Generated from class MR.TextMeshAlignParams. Base classes: Direct: (non-virtual) MR.SymbolMeshParams This is the non-const half of the class.

Constructor & Destructor Documentation

◆ TextMeshAlignParams() [1/4]

unsafe MR.TextMeshAlignParams.TextMeshAlignParams ( )

inline

Constructs an empty (default-constructed) instance.

◆ TextMeshAlignParams() [2/4]

unsafe MR.TextMeshAlignParams.TextMeshAlignParams ( MR._ByValue_TextMeshAlignParams _other )

inline

Generated from constructor MR.TextMeshAlignParams.TextMeshAlignParams.

◆ TextMeshAlignParams() [3/4]

MR.TextMeshAlignParams.TextMeshAlignParams ( Const_TextMeshAlignParams _other )

inline

Generated from constructor MR.TextMeshAlignParams.TextMeshAlignParams.

◆ TextMeshAlignParams() [4/4]

MR.TextMeshAlignParams.TextMeshAlignParams ( TextMeshAlignParams _other )

inline

Generated from constructor MR.TextMeshAlignParams.TextMeshAlignParams.

Member Function Documentation

◆ assign()

unsafe MR.TextMeshAlignParams MR.TextMeshAlignParams.assign ( MR._ByValue_TextMeshAlignParams _other )

inline

Generated from method MR::TextMeshAlignParams::operator=.

◆ operator MR.SymbolMeshParams()

unsafe implicit MR.TextMeshAlignParams.operator MR.SymbolMeshParams ( TextMeshAlignParams self )

inlinestatic

Property Documentation

◆ align

new unsafe ref MR.AlignType MR.TextMeshAlignParams.align

get

◆ direction

new unsafe ref MR.Vector3f MR.TextMeshAlignParams.direction

get

Direction of text, must be not zero.

◆ fontBasedSizeCalc

new unsafe ref bool MR.TextMeshAlignParams.fontBasedSizeCalc

get

If true then size of each symbol will be calculated from font height, otherwise - on bounding box of the text.

◆ fontDetalization

new unsafe ref int MR.TextMeshAlignParams.fontDetalization

get

◆ fontHeight

new unsafe ref float MR.TextMeshAlignParams.fontHeight

get

Font height, meters.

◆ pathToFontFile

new unsafe MR.Std.Filesystem.Path MR.TextMeshAlignParams.pathToFontFile

getprotected set

◆ pivotPoint

new unsafe ref MR.Vector2f MR.TextMeshAlignParams.pivotPoint

get

Position of the startPoint in a text bounding box (0, 0) - bottom left, (0, 1) - bottom right, (0.5, 0.5) - center, (1, 1) - top right.

◆ startPoint

new unsafe MR.MeshTriPoint MR.TextMeshAlignParams.startPoint

getprotected set

Position on mesh, where text's pivot point is mapped.

◆ surfaceOffset

new unsafe ref float MR.TextMeshAlignParams.surfaceOffset

get

Text mesh inside and outside offset of input mesh.

◆ symbolsDistanceAdditionalOffset

new unsafe ref MR.Vector2f MR.TextMeshAlignParams.symbolsDistanceAdditionalOffset

get

◆ symbolsThicknessOffsetModifier

new unsafe ref float MR.TextMeshAlignParams.symbolsThicknessOffsetModifier

get

◆ text

new unsafe MR.Std.String MR.TextMeshAlignParams.text

getprotected set

◆ textMaximumMovement

new unsafe ref float MR.TextMeshAlignParams.textMaximumMovement

get

Maximum possible movement of text mesh alignment, meters.

◆ textNormal

new unsafe MR.? ConstBox_Vector3f MR.TextMeshAlignParams.textNormal

getset

Text normal to surface, if nullptr - use mesh normal at startPoint

The documentation for this class was generated from the following file:

MRAlignTextToMesh.cs
