MR.UniformSamplingSettings Class Reference

Generated from class MR.UniformSamplingSettings. This is the non-const half of the class. More...

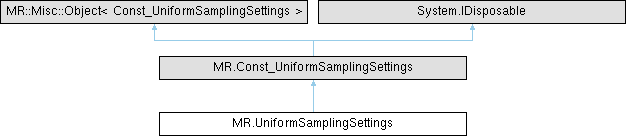

Inheritance diagram for MR.UniformSamplingSettings:

Public Member Functions
unsafe	UniformSamplingSettings ()
	Constructs an empty (default-constructed) instance.
unsafe	UniformSamplingSettings (float distance, float minNormalDot, bool lexicographicalOrder, MR.Const_VertCoords? pNormals, MR.Std._ByValue_Function_BoolFuncFromFloat progress)
	Constructs MR.UniformSamplingSettings elementwise.
unsafe	UniformSamplingSettings (MR._ByValue_UniformSamplingSettings _other)
	Generated from constructor MR.UniformSamplingSettings.UniformSamplingSettings.
	UniformSamplingSettings (Const_UniformSamplingSettings _other)
	Generated from constructor MR.UniformSamplingSettings.UniformSamplingSettings.
	UniformSamplingSettings (UniformSamplingSettings _other)
	Generated from constructor MR.UniformSamplingSettings.UniformSamplingSettings.
unsafe MR.UniformSamplingSettings	assign (MR._ByValue_UniformSamplingSettings _other)
	Generated from method MR.UniformSamplingSettings.operator=.

Properties
new unsafe ref float	distance [get]
	minimal distance between samples
new unsafe ref float	minNormalDot [get]
new unsafe ref bool	lexicographicalOrder [get]
new unsafe MR.? Const_VertCoords	pNormals [get, set]
	if not nullptr then these normals will be used during sampling instead of normals in the cloud itself
new unsafe MR.Std.Function_BoolFuncFromFloat	progress [get, protected set]
	to report progress and cancel processing

Detailed Description

Generated from class MR.UniformSamplingSettings. This is the non-const half of the class.

Constructor & Destructor Documentation

UniformSamplingSettings() [1/5]

unsafe MR.UniformSamplingSettings.UniformSamplingSettings ( )

inline

Constructs an empty (default-constructed) instance.

UniformSamplingSettings() [2/5]

unsafe MR.UniformSamplingSettings.UniformSamplingSettings ( float distance, float minNormalDot, bool lexicographicalOrder, MR.Const_VertCoords? pNormals, MR.Std._ByValue_Function_BoolFuncFromFloat progress )

inline

Constructs MR.UniformSamplingSettings elementwise.

UniformSamplingSettings() [3/5]

unsafe MR.UniformSamplingSettings.UniformSamplingSettings ( MR._ByValue_UniformSamplingSettings _other )

inline

Generated from constructor MR.UniformSamplingSettings.UniformSamplingSettings.

UniformSamplingSettings() [4/5]

MR.UniformSamplingSettings.UniformSamplingSettings ( Const_UniformSamplingSettings _other )

inline

Generated from constructor MR.UniformSamplingSettings.UniformSamplingSettings.

UniformSamplingSettings() [5/5]

MR.UniformSamplingSettings.UniformSamplingSettings ( UniformSamplingSettings _other )

inline

Generated from constructor MR.UniformSamplingSettings.UniformSamplingSettings.

Member Function Documentation

assign()

unsafe MR.UniformSamplingSettings MR.UniformSamplingSettings.assign ( MR._ByValue_UniformSamplingSettings _other )

inline

Generated from method MR.UniformSamplingSettings.operator=.

Property Documentation

distance

new unsafe ref float MR.UniformSamplingSettings.distance

get

minimal distance between samples

lexicographicalOrder

new unsafe ref bool MR.UniformSamplingSettings.lexicographicalOrder

get

if true process the points in lexicographical order, which gives tighter and more uniform samples; if false process the points according to their ids, which is faster

minNormalDot

new unsafe ref float MR.UniformSamplingSettings.minNormalDot

get

if point cloud has normals then automatically decreases local distance to make sure that all points inside have absolute normal dot product not less than this value; this is to make sampling denser in the regions of high curvature; value <=0 means ignore normals; value >=1 means select all points (practically useless)

pNormals

new unsafe MR.? Const_VertCoords MR.UniformSamplingSettings.pNormals

getset

if not nullptr then these normals will be used during sampling instead of normals in the cloud itself

progress

new unsafe MR.Std.Function_BoolFuncFromFloat MR.UniformSamplingSettings.progress

getprotected set

to report progress and cancel processing

---

The documentation for this class was generated from the following file:

• MRUniformSampling.cs
